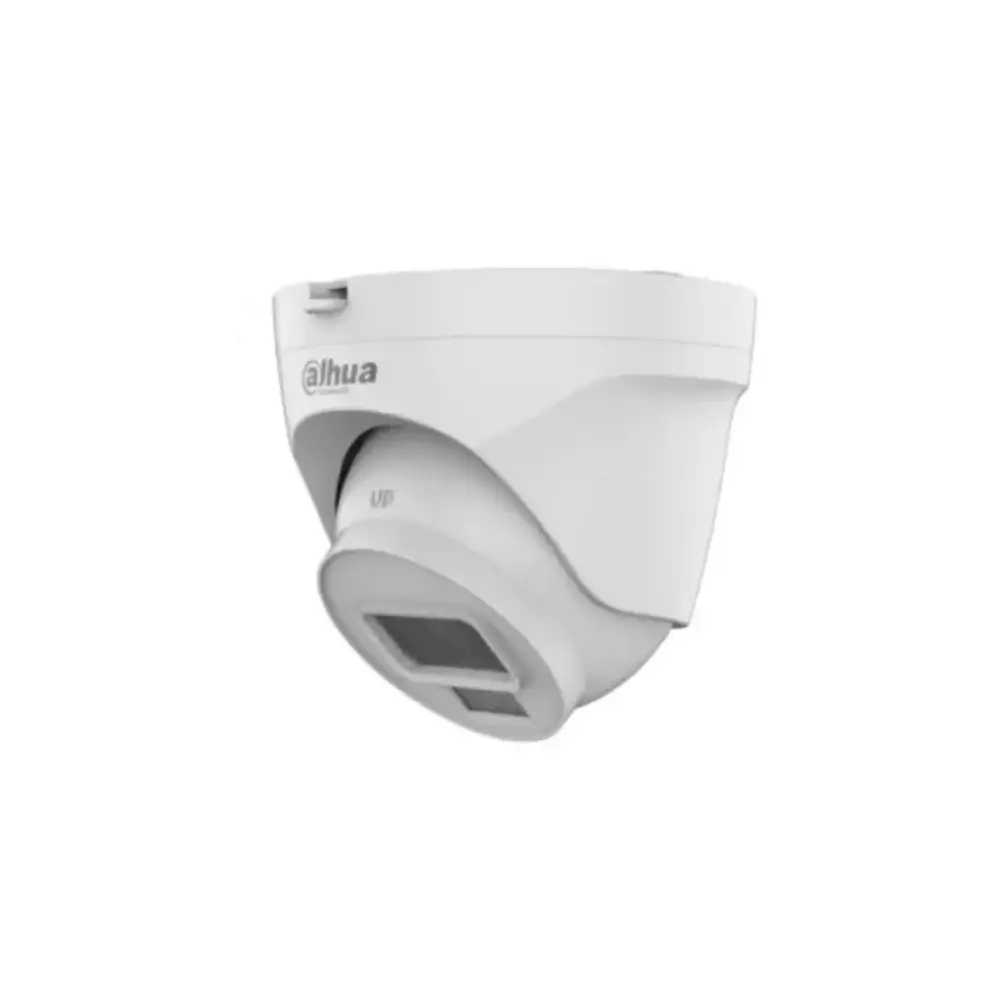

Dahua DH-IPC-HDW3230T2-S5-BT 2MP dome IP camera front view

Dahua DH-IPC-HDW3230T2-S5-BT 2MP PoE Dome IP Camera

By DahuaIn stock

৳2,990

1

Good to know

Specifications

Product CodeDH-IPC-HDW3230T2-S5-BT
Sensor Type1/2.8" CMOS
Maximum Video Quality2MP, 1920 × 1080 at 25/30 fps
Exposure Time Range1/3 s to 1/100,000 s (Auto/Manual)
Day/Night ModesAuto (ICR), Color, B/W
Low-Light Sensitivity0.01 lux color; 0.001 lux B/W (F2.0, 30 IRE); 0 lux with illuminator on
Adjustment RangePan 0°–360°; Tilt 0°–78°; Rotation 0°–360°
Lens StyleFixed focal
Lens Size2.8 mm
Light OpeningF2.0
Viewing Angle102° horizontal; 54° vertical; 120° diagonal
Iris ModeFixed
Nearest Focus Distance0.5 m (1.6 ft)
Infrared LEDs2
Night Vision RangeUp to 30 m
Infrared ControlAuto/Manual
Supported CodecsH.265; H.264; H.264B; MJPEG (sub stream only)
Selectable Resolutions1080p; 1.3M (1280 × 960); 720p; D1; VGA; CIF
Main Stream1920 × 1080, 1–25/30 fps
Sub Stream704 × 576 (1–25 fps); 704 × 480 (1–30 fps)
Smart CompressionSmart H.265+/Smart H.264+
Simultaneous Streams2
Bitrate ModeCBR/VBR
Bitrate RangeH.264: 32–6144 kbps; H.265: 12–6144 kbps
Image EnhancementBLC, HLC, WDR, 3D NR, Auto/Manual gain, Mirror
ROI / Privacy Masking4 ROI areas / 4 masking zones
Network ProtocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast
InteroperabilityONVIF (Profile S); CGI; P2P
Concurrent Users6 (total bandwidth 36 M)
Mobile AppsiOS; Android
Web BrowsersIE; Chrome; Firefox
Network PortRJ-45 (10/100 Base-T)
Alert EventsNetwork disconnection; IP conflict; illegal access; motion detection; video tampering; safety exception
Operating Temperature–40 °C to +55 °C (–40 °F to +131 °F)
Operating Humidity95% or below
Storage Temperature–40 °C to +60 °C (–40 °F to +140 °F)
Protection RatingIP67
Power Input12V DC / PoE (802.3af)
Power DrawStandard: 1.3 W (12V DC), 2.1 W (PoE); Peak: 2.6 W (12V DC), 3.5 W (PoE)
Housing MaterialPlastic
Size103.2 mm × Φ109.9 mm (4.06" × Φ4.33")
Weight0.26 kg (0.5 lb)
Warranty1 year

Description

Keep an eye on your home, shop or office around the clock with the Dahua DH-IPC-HDW3230T2-S5-BT 2MP dome IP camera. It records sharp 1080p video and its infrared LEDs reach up to 30 meters, so you still get a usable picture at night. If you are looking for a dependable Dahua IP camera for everyday security, this model covers the essentials.

The 2.8 mm fixed lens gives a wide 102° horizontal view, so one camera covers a large part of a room, shopfront or corridor. The IP67 housing and PoE support make it practical for both indoor and outdoor installs.

It also uses H.265 compression to save storage and bandwidth, and it works with iOS and Android apps for viewing on your phone.

Key Features

  • 2MP Full HD (1920 × 1080) at 25/30 fps: Records clear, detailed footage so you can identify people, vehicles and events more easily.

  • 1/2.8" CMOS sensor with 0.01 lux color sensitivity: Picks up usable color detail in dim scenes, and drops to B/W for even darker conditions.

  • 2.8 mm fixed lens, F2.0, 102° horizontal view: Covers a wide area from a single mounting point, which means fewer blind spots.

  • 2 IR LEDs, up to 30 m night vision: Gives clear black-and-white video in total darkness (0 lux with the illuminator on). The illuminator can run in Auto or Manual mode.

  • IP67 water and dust resistance: Built to handle rain and dust, so it suits outdoor spots like gates, verandas and shopfronts.

  • PoE (802.3af) or 12V DC power: One network cable can carry both power and video with PoE, which simplifies wiring and installation.

  • Smart H.265+/H.264+ compression: Lowers bitrate and storage use while keeping video quality high.

  • WDR, BLC, HLC and 3D noise reduction: Balances bright and dark areas, such as a doorway with strong backlight, and reduces grain in low light.

  • Motion detection plus tamper and network alerts: Detects motion, video tampering, IP conflicts, network disconnection and illegal access, so you can spot problems early.

  • 4 ROI areas and 4 privacy masking zones: Lets you give priority to important areas and block out private ones.

  • ONVIF (Profile S) and P2P support: Helps the camera work with compatible third-party systems and makes mobile viewing easier to set up.

  • Wide adjustment range (pan 0°–360°, tilt 0°–78°, rotation 0°–360°): Makes it easy to aim the camera exactly where you need it.

Why Choose the Dahua DH-IPC-HDW3230T2-S5-BT 2MP Dome IP Camera

This 2MP dome IP camera gives you the basics of a solid surveillance setup without extra complexity. Full HD video, 30 m night vision and IP67 protection mean it keeps working through daytime, nighttime and rainy weather.

PoE support keeps cabling tidy, since a single Ethernet cable handles both power and data. The smart compression saves hard-drive space, and the iOS and Android client support lets you check in from your phone.

For buyers who prefer a trusted Dahua IP camera in Bangladesh, this model offers a practical balance of image quality, durability and easy installation, backed by a 1-year warranty.

Best Use Cases

  • Homes, gates, balconies and entrances

  • Shops, showrooms and small offices

  • Corridors, lobbies and building entrances

  • Outdoor areas that need weather protection

Compatibility

  • Supports ONVIF (Profile S) for interoperability with compatible systems

  • Mobile viewing on iOS and Android devices

  • Browser access through Internet Explorer, Chrome and Firefox

Warranty

1 Year Warranty

Read the warranty policy

Reviews

Frequently asked questions

What is the Dahua DH-IPC-HDW3230T2-S5-BT?

It is a 2MP fixed-lens dome IP camera with 1080p video, 30 m infrared night vision, IP67 protection and PoE support.

Does this Dahua IP camera support PoE?

Yes. It supports PoE (802.3af), so one Ethernet cable can supply both power and data. It also accepts 12V DC.

How far can the night vision reach?

The two IR LEDs provide night vision up to 30 meters.

Can I use it outdoors?

Yes. It has an IP67 rating and an operating range of –40 °C to +55 °C, which suits outdoor installation.
