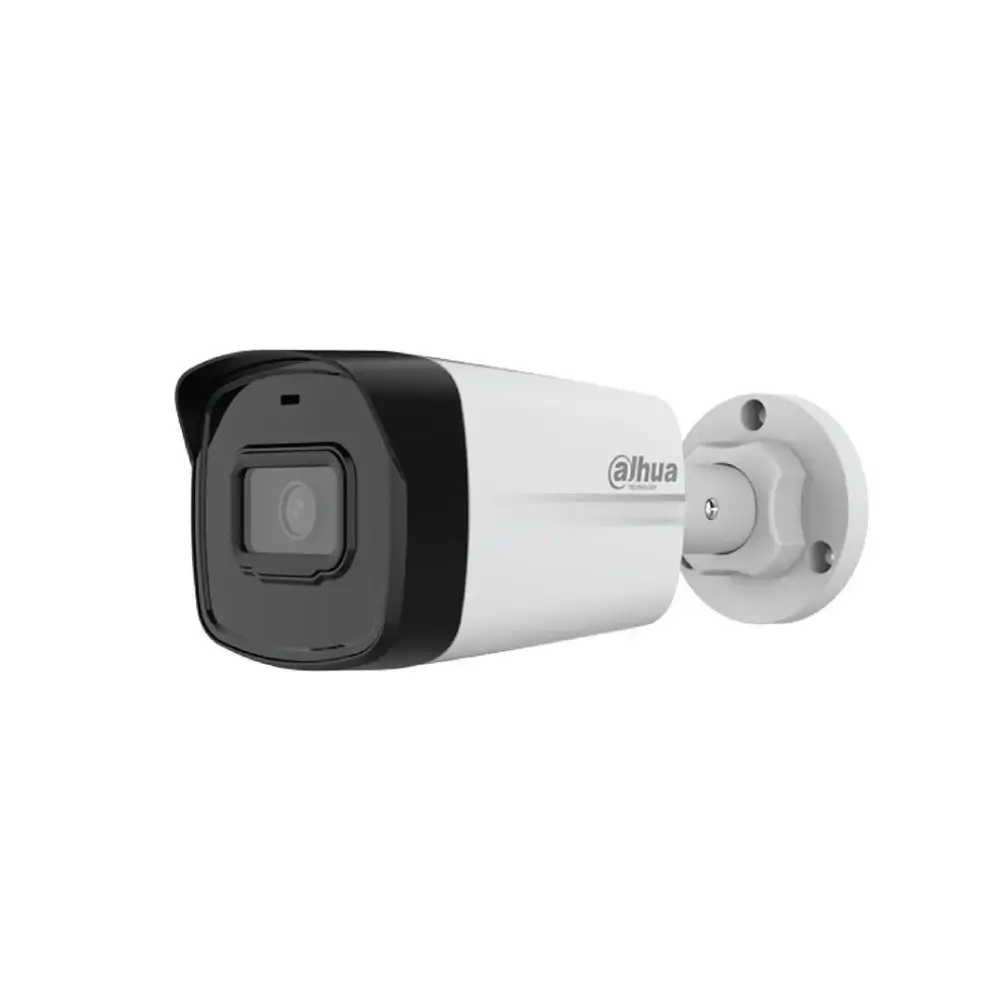

Dahua DH-IPC-HFW1230TL2-S5 2MP bullet IP camera front view

Dahua DH-IPC-HFW1230TL2-S5 Full HD 2MP Bullet IP Camera

By DahuaIn stock

৳2,600

1

Good to know

Specifications

ModelDH-IPC-HFW1230TL2-S5
Camera Type2MP Bullet IP Camera
Image Sensor1/2.8" CMOS
Max Resolution1920 × 1080 (2MP)
Frame RateMain stream 1920 × 1080 @ 1–25/30 fps
Shutter SpeedAuto/Manual, 1/3 s – 1/100,000 s
Day & NightAuto (ICR) / Color / B/W
Min. Illumination0.01 lux (Color), 0.001 lux (B/W), 0 lux (IR on)
SNR> 56 dB
Lens3.6 mm fixed-focal, M12 mount, F2.0, fixed iris
Field of ViewH: 84°, V: 45°, D: 100°
Close Focus Distance0.8 m (2.6 ft)
Angle AdjustmentPan 0°–360°, Tilt 0°–78°, Rotation 0°–360°
IR LEDs / Distance2 IR LEDs, up to 30 m (98.4 ft)
Video CompressionH.265, H.264, H.264B, 264H, MJPEG (sub stream only)
Smart CodecSmart H.265+, Smart H.264+
Streams2 streams (Main + Sub)
Bit Rate ControlCBR / VBR
Bit Rate RangeH.264: 32–6144 kbps, H.265: 12–6144 kbps
Image FeaturesBLC, HLC, DWDR, 3D NR, ROI (4 areas), Mirror, Privacy Masking (4 areas)
Network StorageFTP
Network InterfaceRJ-45 (10/100 Base-T)
ProtocolsIPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP
InteroperabilityONVIF (Profile S), CGI, P2P, API
Users6 users (total bandwidth 36 M)
Alarm EventsNetwork disconnection, IP conflict, illegal access, motion detection, video tampering, security exception
Power Supply12V DC / PoE (802.3af)
Power ConsumptionBasic: 1.3 W (12V DC), 2.1 W (PoE). Max: 2.9 W (12V DC), 3.9 W (PoE)
Water ProtectionIP67
Operating Temperature–40 °C to +55 °C
Operating Humidity≤ 95%
Storage Temperature–40 °C to +60 °C
Casing MaterialPlastic
Dimensions (L × W × H)198.9 × 80.2 × 76.2 mm
WeightNet 0.25 kg, Gross 0.40 kg
Warranty1 Year

Description

The Dahua DH-IPC-HFW1230TL2-S5 is a 2MP bullet IP camera built for clear Full HD surveillance around homes, shops, offices and compounds. Its 1/2.8" CMOS sensor records 1920 × 1080 video at up to 25/30 fps. Faces, vehicles and movement stay easy to recognize.

If you are comparing a Dahua IP camera for outdoor monitoring, this model covers the essentials. It has 30-meter infrared night vision and IP67 weather protection. It also supports PoE power, so one network cable can carry both power and data.

It suits shopfronts, entrances, parking areas, warehouses and residential gates. The camera works through the day and the night, and Smart H.265+ compression keeps storage and bandwidth use under control.

Key Features

  • 2MP Full HD resolution (1920 × 1080): Records sharp 1080p video at up to 25/30 fps, so you can identify people and events more clearly than on standard-definition cameras.

  • 1/2.8" CMOS sensor with F2.0 aperture: Captures more light in dim conditions. Minimum illumination is 0.01 lux in color mode and 0.001 lux in B/W mode, so footage holds up in low light.

  • 30m infrared night vision: Two IR LEDs cover up to 30 meters (98.4 ft) with Auto and manual illuminator control. You keep visibility in complete darkness (0 lux with the illuminator on).

  • 3.6mm fixed lens with 84° horizontal field of view: Covers a wide area with a single camera. This reduces blind spots at entrances, shopfronts and yards.

  • Smart H.265+ / H.264+ compression: Supports H.265, H.264, H.264B, 264H and MJPEG on the sub stream. Smart Codec lowers bitrate and storage use while keeping video quality.

  • IP67 weather protection: The dust-tight, water-resistant body works outdoors. It handles rain and dust and operates from –40 °C to +55 °C.

  • PoE (802.3af) or 12V DC power: You can run the camera over a single Ethernet cable or a standard power adapter. This simplifies installation and cuts cabling cost.

  • Smart detection and alerts: Motion detection, video tampering, network disconnection, IP conflict, illegal access and security exception alarms help you react to suspicious activity.

  • Image enhancement tools: DWDR, BLC, HLC, 3D noise reduction, 4-area ROI and 4-area privacy masking improve image quality in tricky lighting and protect private zones.

  • Flexible mounting angle: Pan 0°–360°, tilt 0°–78° and rotation 0°–360° let you aim the camera precisely.

  • ONVIF (Profile S) and mobile app support: Works with ONVIF-compatible systems and supports Smart PSS, DSS and DMSS, plus iOS and Android clients, for easy remote viewing.

Why Choose the Dahua DH-IPC-HFW1230TL2-S5 2MP Bullet IP Camera

Dahua is a widely recognized name in video surveillance. This model gives you dependable Full HD performance at a practical level. You get night vision, weatherproofing and PoE support without paying for extras you may not need. For anyone looking for a Dahua IP camera for everyday security, it is a straightforward choice.

The 2MP Bullet IP Camera format is easy to install and easy to spot. A visible camera also deters trespassers. The wide 84° view and the adjustable bracket let you cover a doorway, driveway or counter area from one position.

Running costs stay low as well. Typical power draw is only 2.1 W over PoE. Smart H.265+ compression reduces the storage your recorder needs. If you manage several cameras across a shop or office, those savings add up.

Best Use Cases

  • Shops and retail counters: Monitor entrances, cash areas and aisles.

  • Homes and apartments: Cover gates, driveways and building entrances.

  • Offices and warehouses: Watch loading areas, corridors and perimeters.

  • Parking areas and compounds: Use the IP67 body and IR range for outdoor coverage.

Compatibility

  • Standards: ONVIF (Profile S) and CGI/API support for compatible recorders and software.

  • Mobile apps and clients: DMSS app, plus iOS and Android clients.

  • PC software: Smart PSS and DSS.

  • Web browsers: Internet Explorer, Chrome and Firefox.

  • Power: Works with 802.3af PoE switches/injectors or a 12V DC supply.

Warranty

1 Year Warranty

Read the warranty policy

Reviews

Frequently asked questions

What is the Dahua DH-IPC-HFW1230TL2-S5?

It is a 2MP (1080p) bullet IP camera from Dahua. It has a 3.6mm lens, 30m infrared night vision, IP67 weather protection and PoE support.

Can this Dahua IP camera work outdoors?

Yes. The IP67 rating protects it against dust and water. It operates from –40 °C to +55 °C, so it suits outdoor installations.

How far can the night vision reach?

The two IR LEDs reach up to 30 meters (98.4 ft). The illuminator can run in Auto or manual mode.

Does it support PoE?

Yes. It supports PoE (802.3af) and 12V DC. With PoE, a single Ethernet cable carries both power and video.
