DTECH DT-9003 RS232 to RS485/RS422 Serial Converter

The DTECH DT-9003 RS232 to RS485/RS422 converter is built for anyone running industrial automation or serial communication projects that need a dependable link between mismatched interfaces. As a passive two-way RS232 to RS485/RS422 converter, it handles conversion in both directions, RS232 to RS485/RS422 and RS485/RS422 back to RS232, without any external power supply, since it draws power straight from the RS232 charge pump.

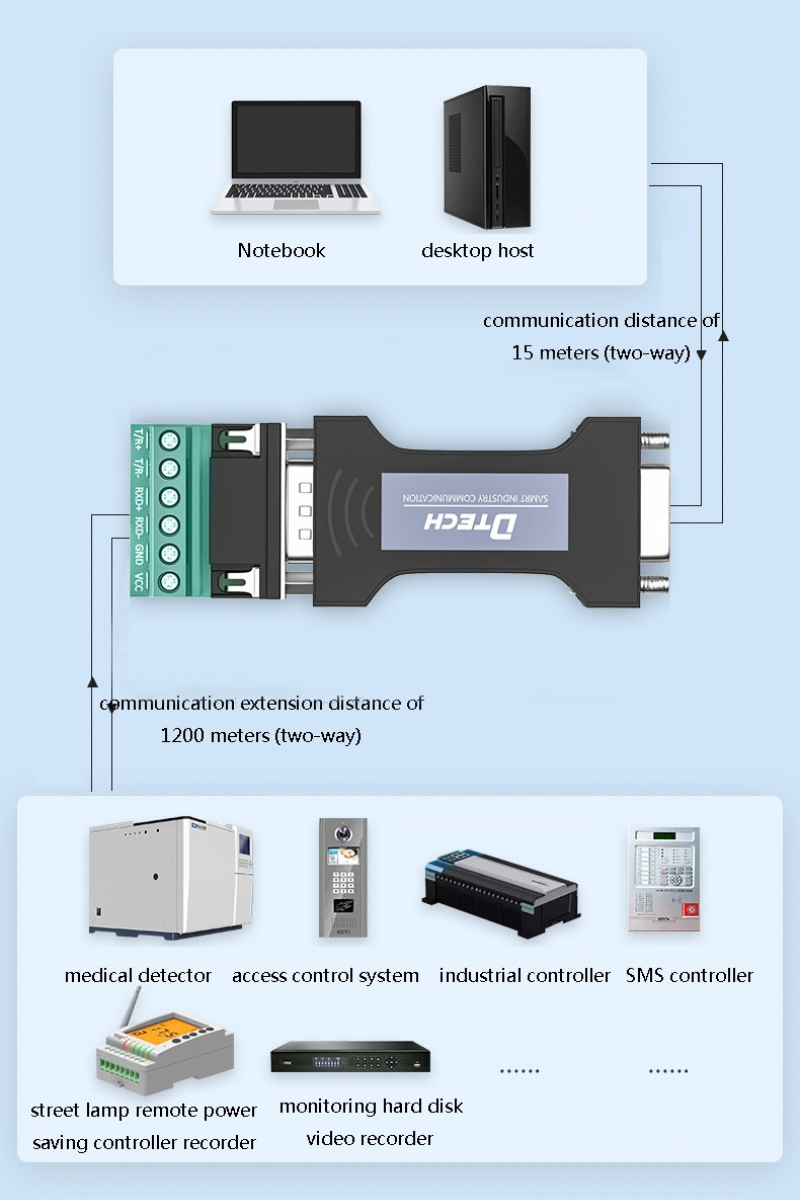

For anyone comparing a DTECH serial converter against other budget options on the market, the DT-9003 stands out with stable, long-distance transmission of up to 1200 meters and automatic transceiver direction control, so there's no need for handshake signals like RTS or DTR. This makes it a practical fit for medical detectors, PLC-based industrial computers, access control systems, and SMS controllers that rely on steady, uninterrupted data flow.

Whether you're upgrading a monitoring setup, connecting a desktop host to industrial controllers, or extending a legacy RS232 device onto an RS485/RS422 network, this converter is designed to be a plug-and-play solution that just works.

Key Features

• Passive Two-Way Conversion: Converts RS232 to RS485/RS422 and RS485/RS422 to RS232 without needing an external power adapter, keeping your setup simpler and cable clutter to a minimum.

• 1200M Long-Distance Transmission: Maintains a stable connection up to 1200 meters, so you can extend serial communication across large industrial sites or buildings without signal loss.

• Automatic Transceiver Direction Control: Controls data flow direction internally, removing the need for RTS/DTR handshake signals and letting existing RS232 half-duplex code run in RS485/RS422 mode with no changes.

• High-Speed, Delay-Free Data Transmission: Supports transmission speeds from 300 to 115.2Kbps across four communication modes (point-to-point two-wire half-duplex, point-to-multipoint two-wire half-duplex, and full-duplex variants), keeping signal operation fast and reliable.

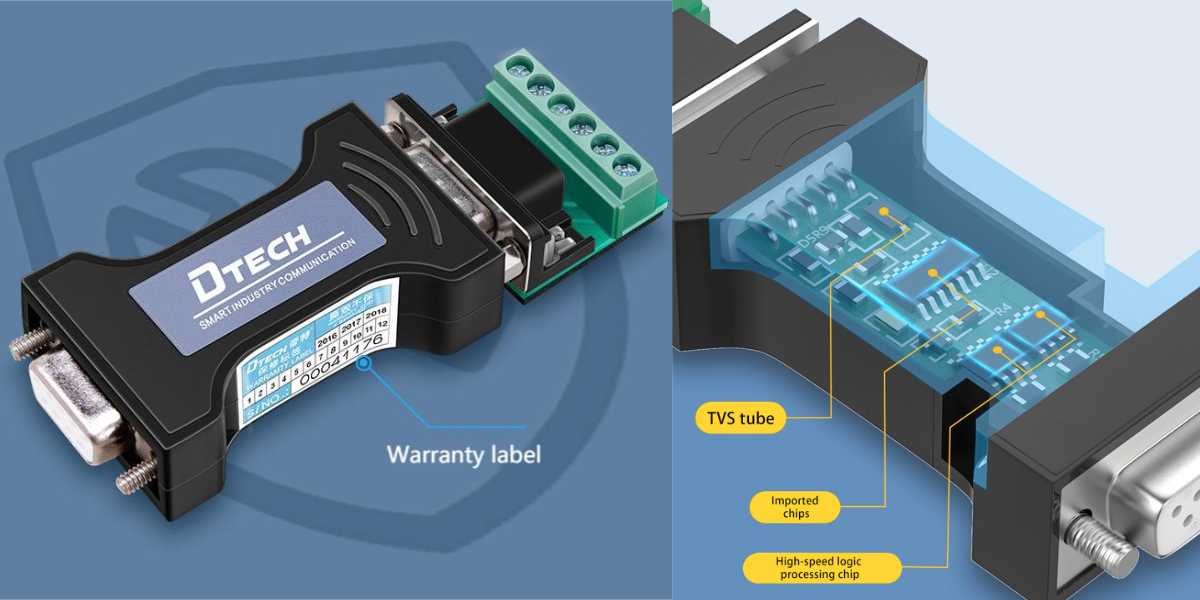

• ±15KV ESD and 600W Surge Protection: Built-in electrostatic discharge protection and per-line surge protection keep your data and connected equipment safe, even with everyday static exposure.

• 24-Hour Aging Tested: Every unit passes a 24-hour aging test before shipping, giving you added confidence in long-term, always-on industrial use.

• Durable Matte Black Shell: A compact, finely polished PVC housing makes the converter easy to carry, mount, and integrate into tight equipment panels.

Why Choose the DTECH DT-9003 RS232 to RS485/RS422 Converter

If you need a serial port converter that's stable enough for round-the-clock industrial use yet simple enough to install without extra power cabling, the DT-9003 covers both. It's a genuine bidirectional converter rather than a one-way adapter, so it fits projects where devices on either end might need to initiate communication. The automatic direction control and wide baud rate range mean less troubleshooting once it's installed, and the ESD and surge protection reduce the risk of downtime from power surges or static discharge, which matters a lot in factory and control-room environments. For buyers comparing DTECH serial converter options in Bangladesh, the DT-9003 offers a solid balance of transmission distance, safety protection, and passive power design at a practical price point.

Technical Specifications
