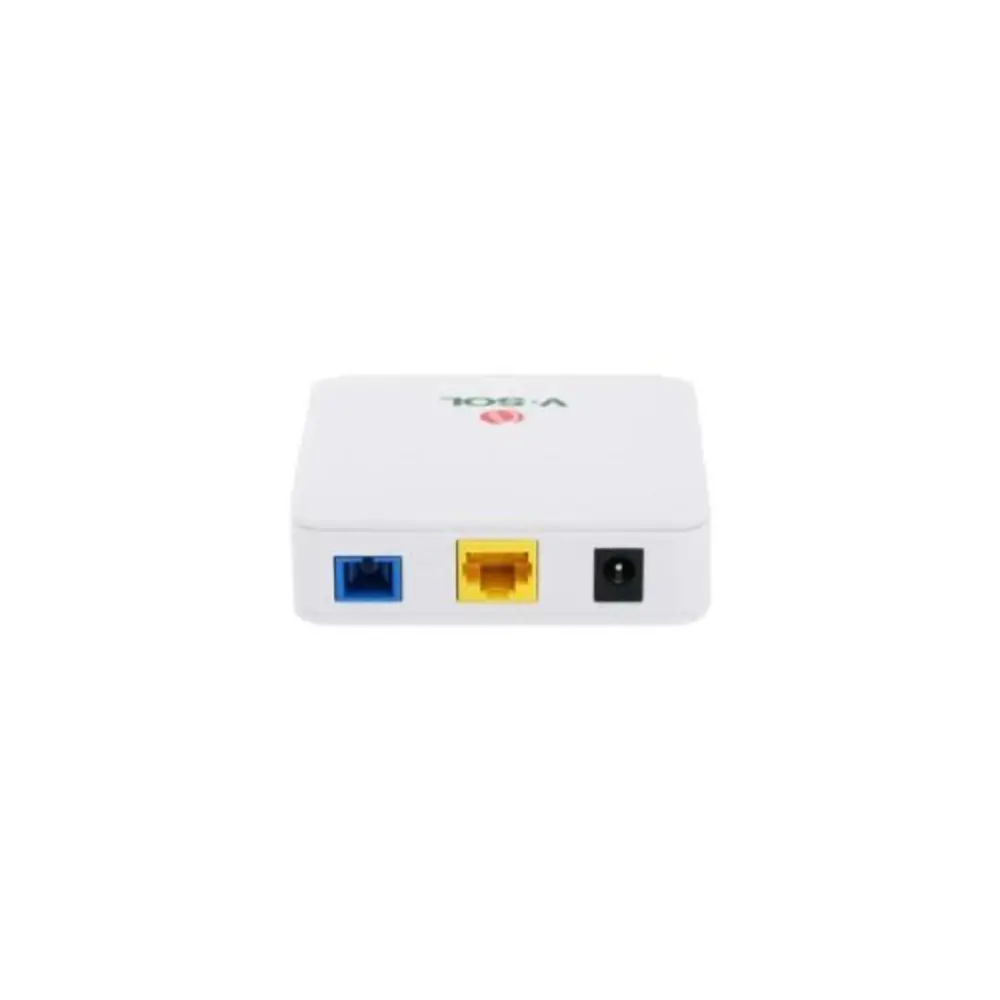

Vsol V2801RD Single Port Xpon Onu Router Front

VSOL V2801RD Single Port XPON ONU Router

In stock

৳1,280

1

Good to know

Specifications

BrandVSOL
ModelV2801RD
Product TypeSingle Port XPON ONU Router
RegistrationMPCP Discover and Register
AuthenticationMAC, LOID, MAC+LOID; SN, Password, LOID, LOID+Password Alarm
Security / BandwidthTriple Churning, DBA Bandwidth
Auto FeaturesAuto-Detection, Auto-Configuration, Auto Firmware Upgrade
AlarmsDying Gasp, Port Loop Detect, Ethernet Port LOS
Port ControlPort Rate Limiting, Loop Detection, Flow Control, Storm Control
VLANTag Mode, Transparent Mode, Trunk Mode (max 8 VLANs), 1:1 Translation (up to 8 VLANs), Auto VLAN Detection
MulticastIGMP v1/v2/Snooping, Max 8 Multicast VLANs, Max 64 Multicast Groups
QoS4 Queues, SP and WRR, 802.1P
Layer 3IPv4/IPv6, DHCP, PPPoE, Static IP, Static Route, NAT
Management ProtocolsCTC OAM 2.0 and 2.1, ITU-T G.984.x OMCI
Management InterfaceWeb, Telnet, CLI

Description

The VSOL V2801RD XPON ONU router is built for fiber broadband setups that need flexible authentication, stable traffic control and easy remote management. It works as a single port XPON ONU, so ISPs and installers can deploy it quickly on both EPON and GPON-style networks that follow CTC OAM and ITU-T G.984.x OMCI standards.

If you are searching for a VSOL ONU that supports auto-configuration, VLAN modes and IPv4/IPv6 routing, the V2801RD is a practical choice for home fiber connections and small ISP rollouts. Its management options (Web, Telnet and CLI) make day-to-day setup and troubleshooting simpler.

Key Features

  • XPON registration and authentication: Supports MPCP discover and register, plus MAC, LOID and MAC+LOID authentication. SN, password, LOID and LOID+password authentication alarms are also supported. This helps ISPs control which devices join the network.

  • Triple churning and DBA bandwidth: Triple churning protects data on the fiber link, and DBA bandwidth allocation helps share upstream capacity efficiently among users.

  • Auto-detection, auto-configuration and auto firmware upgrade: The ONU can configure and update itself, which reduces manual work during installation and maintenance.

  • Dying gasp, port loop detection and Ethernet port LOS alarm: These alerts help ISPs spot power loss, loops and link problems faster, so faults get fixed sooner.

  • Port rate limiting, flow control and storm control: You can keep traffic under control and limit broadcast storms, which protects the network from congestion.

  • Flexible VLAN options: Supports VLAN tag, transparent and trunk modes (up to 8 VLANs), VLAN 1:1 translation (up to 8 VLANs) and auto VLAN detection, so the ONU fits different ISP network designs.

  • Multicast support: IGMP v1/v2 and snooping, with up to 8 multicast VLANs and 64 multicast groups, which suits IPTV and streaming services.

  • QoS with 4 queues: SP and WRR scheduling with 802.1P support help prioritize important traffic such as voice and video.

  • Layer 3 routing: IPv4/IPv6, DHCP, PPPoE, static IP, static route and NAT cover most broadband connection types.

  • Standards-based management: CTC OAM 2.0 and 2.1, ITU-T G.984.x OMCI, Web, Telnet and CLI give ISPs several ways to manage the device.

Why Choose the VSOL V2801RD XPON ONU Router

The main reason to choose this XPON ONU router is its broad feature set for a single port device. Authentication options, VLAN modes and QoS are the kind of features ISPs rely on, and they are all built in.

Auto-configuration and auto firmware upgrade save time during deployment, while alarms such as dying gasp and port loop detection make network monitoring easier. Support for both IPv4 and IPv6 helps the device stay useful as networks grow.

For buyers in Bangladesh who need a dependable VSOL ONU for fiber broadband, the V2801RD offers a practical mix of compatibility and control at a reasonable price.

Best Use Cases

  • Home fiber broadband connections

  • Small ISP and local cable-net deployments

  • IPTV and multicast streaming services

  • Replacing or expanding existing ONU units on XPON networks

Compatibility

The VSOL V2801RD supports CTC OAM 2.0 and 2.1 and ITU-T G.984.x OMCI management. Check with your ISP or OLT vendor that your network uses a compatible XPON setup before purchase.

Warranty

7 days replacement warranty

Read the warranty policy

Reviews

Frequently asked questions

What is the VSOL V2801RD XPON ONU router?

It is a single port XPON ONU router for fiber broadband networks, with VLAN, QoS, multicast and IPv4/IPv6 routing support.

Which authentication methods does the VSOL V2801RD support?

It supports MAC, LOID and MAC+LOID authentication, and SN, password, LOID and LOID+password authentication alarms.

Does the V2801RD support IPv6?

Yes. It supports both IPv4 and IPv6, along with DHCP, PPPoE, static IP, static route and NAT.

How many VLANs does this VSOL ONU support?

Trunk mode supports up to 8 VLANs, and VLAN 1:1 translation supports up to 8 VLANs. It also supports tag mode, transparent mode and auto VLAN detection.
