Wavlink WL-UG69DK1 USB-C Dual 4K Docking Station with DisplayLink

Wavlink WL-UG69DK1 USB-C Dual 4K Docking Station

The Wavlink WL-UG69DK1 USB-C Dual 4K Docking Station turns a single USB-C or USB-A port into a complete workstation hub. Built around a DisplayLink-certified USB3.0 GPU, this docking station lets you run two 4K displays at once, so you can finally stop juggling browser tabs and spreadsheets on one small laptop screen.

Whether you're connecting a MacBook, a Windows ultrabook, or a budget laptop with only USB-A, the WL-UG69DK1 adapts to your setup. It's built for professionals who need a reliable multi-monitor workstation, students managing research across screens, and anyone who edits, codes, or presents for a living.

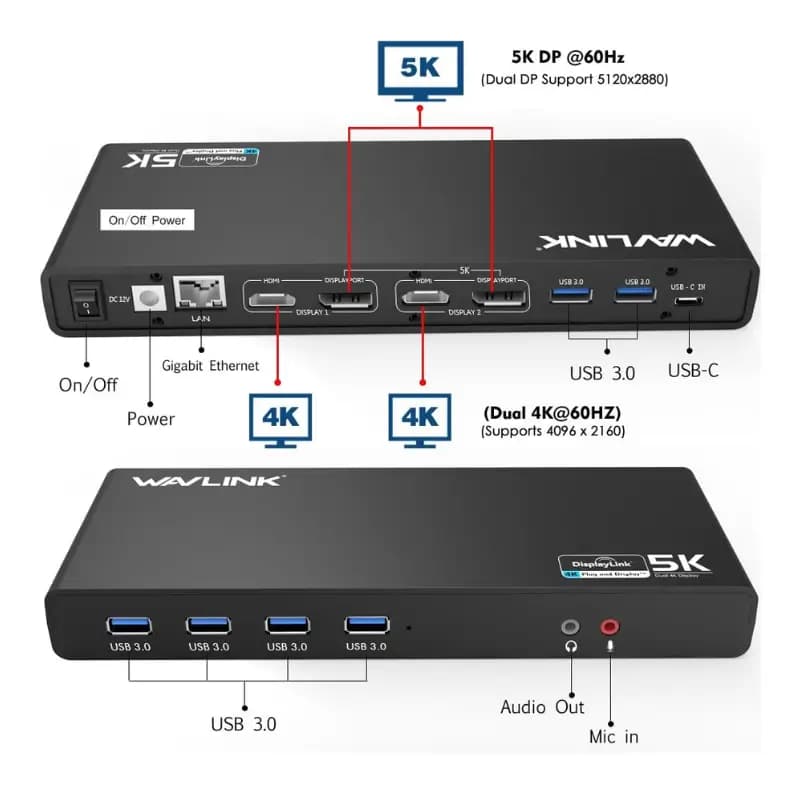

With dual DisplayPort++ and dual HDMI outputs, Gigabit Ethernet, six USB3.0 ports, and audio in/out, this single dock replaces a tangle of separate adapters with one clean connection.

Key Features

• DisplayLink-Certified USB3.0 GPU: A built-in graphics chip handles the heavy lifting of driving multiple displays from one USB connection, so your laptop doesn't need a native multi-monitor GPU.

• Dual 4K / 5K Display Support: Two DisplayPort++ and two HDMI 2.0 ports support up to dual 4K (4096×2160@60Hz) or 5K (5120×1440@60Hz) output — connect both DP ports together for a single 5K (5120×2880@60Hz) ultra-wide workspace.

• Extend or Mirror Modes: Spread your workflow across multiple screens for productivity, or mirror the same content for presentations and demos.

• 5.1 Surround Sound via DisplayPort: Enjoy immersive multi-channel audio output directly through your DisplayPort connection for movies, gaming, or media production.

• Gigabit Ethernet Port: A built-in RJ-45 port delivers a stable, fast wired connection, backward compatible with 10/100 networks — ideal when Wi-Fi isn't reliable enough for large file transfers or video calls.

• 6x USB3.0 Ports: Connect keyboards, mice, external drives, and other peripherals simultaneously, with full backward compatibility for USB2.0 devices too.

• Audio In/Out Jacks: A dedicated line-out for headphones or speakers and a line-in for a microphone mean you can handle calls and audio playback without extra adapters.

• Universal USB-C / USB-A Connectivity: A single USB3.1 Gen1 connector works with both Type-C and Type-A laptops, so the dock isn't locked to one type of device.

Best Use Cases

• Office & Remote Work: Run dual monitors from a single laptop connection for a true desktop-like setup.

• Students & Researchers: Reference multiple documents or data sources side by side.

• Professionals & Presenters: Mirror your screen to a projector or external display during meetings.

• Content Creators: Extend your workspace across two 4K displays for editing and design work.

Technical Specifications

Compatibility

• Supported Devices: Laptops and ultrabooks with a USB-C or USB-A port

• Supported Operating Systems: Windows and macOS (DisplayLink drivers required)

• Supported Accessories: External monitors, projectors, wired keyboards/mice, external storage drives, wired headsets/microphones, Ethernet networks

Frequently Asked Questions

Does the WL-UG69DK1 work with both USB-C and USB-A laptops?

Yes, the dock includes both a USB3.1 Gen1 Type-C and Type-A connector, so it works with either port type without needing a separate adapter.

Can I run two 4K monitors at the same time?

Yes. Using the DisplayPort and HDMI outputs together, the WL-UG69DK1 supports dual 4K output at up to 4096x2160@60Hz.

Do I need to install drivers?

Yes, this dock uses DisplayLink technology, so you'll need to install the free DisplayLink driver on Windows or macOS for full multi-display functionality.

Does it support wired internet?

Yes, a built-in Gigabit Ethernet RJ-45 port provides a stable wired connection, backward compatible with 10/100 networks.

How many USB devices can I connect?

The dock has 6 USB3.0 ports that support both USB3.0 and USB2.0 peripherals simultaneously.

Can I use a microphone and headphones with this dock?

Yes, it includes a dedicated audio line-out for headphones/speakers and a line-in jack for a microphone.

Is warranty support available in Bangladesh?

Yes, genuine Wavlink WL-UG69DK1 units come with official warranty support and after-sales service in Bangladesh.
