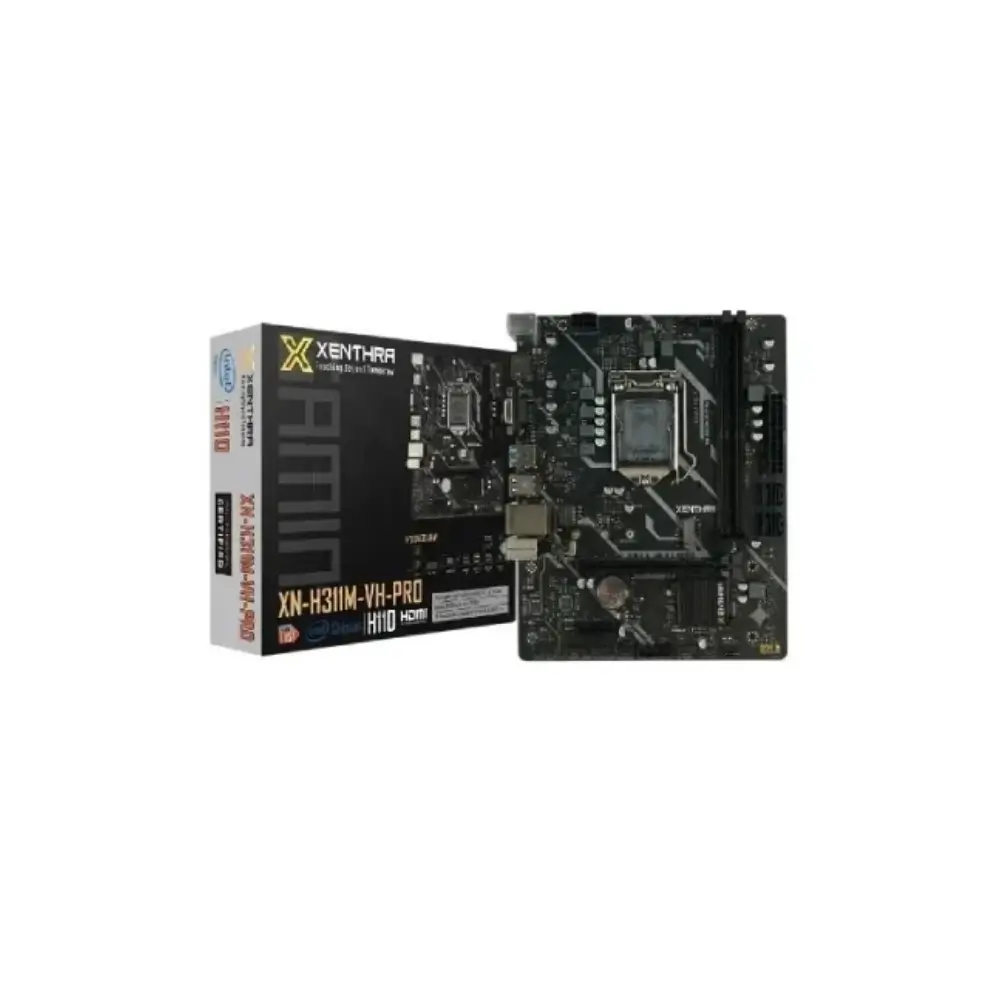

Xenthra XN-H311M-VH-PRO Intel H110 Micro-ATX Motherboard
BDT 6,550
Quantity
The Xenthra XN-H311M-VH-PRO is an Intel H110 motherboard for building or upgrading an everyday desktop PC. It supports 6th, 7th, 8th and 9th Gen Intel Core processors on the LGA1151 socket. That lets you keep a compatible CPU and refresh the rest of your system.
Its Micro-ATX size fits compact and standard cases. You get DDR4 memory support, an M.2 NVMe slot, four SATA 3.0 ports, and both HDMI and VGA output. This makes it practical for office PCs, home computers and budget builds.
If you are looking for a reliable Xenthra motherboard in Bangladesh, this model comes with a 3-year manufacturing warranty.
Key Features
Supports 6th to 9th Gen Intel Core, Pentium and Celeron processors (LGA1151): gives you flexibility to choose or reuse a compatible CPU.
Intel H110 Express chipset: a stable base for general-purpose desktop computing.
2 DDR4 DIMM slots, dual-channel, up to 64GB at 2666 MHz: enough memory headroom for multitasking and office workloads.
1x M.2 slot (NVMe PCIe 2.0 x4): lets you add an NVMe SSD for faster boot and load times than a standard SATA drive.
4x SATA 3.0 (6 Gbps) ports: room for multiple hard drives or SSDs.
HDMI and VGA output: connects to modern monitors or older displays without extra adapters.
Realtek Gigabit LAN (RJ45): wired internet for stable browsing, streaming and downloads.
1x PCIe 3.0 x16 and 1x PCIe 2.0 x1 slot: allows expansion with a graphics card or other add-in cards.
1x TPM 2.0 header: supports security features when a compatible TPM module is installed.
2x USB 3.0, 4x USB 2.0 and 1x PS/2 combo port: connects keyboards, mice, drives and other peripherals.
Why Choose This Xenthra XN-H311M-VH-PRO H110 Motherboard
This H110 motherboard suits buyers who want a simple, dependable platform without paying for features they will not use. It supports four generations of Intel Core processors, so it works for new builds and for upgrades.
The M.2 NVMe slot and four SATA ports give you flexible storage options. Dual HDMI and VGA output makes it easy to reuse the monitor you already have. The 3-year warranty adds peace of mind, and buying from Geary BD means local support in Bangladesh.
Best Use Cases
Home and office desktop PCs
Student and study computers
Budget PC builds and CPU upgrades
Light multimedia and everyday work
Technical Specifications
Specification | Details |
|---|---|
Model | XN-H311M-VH-PRO |
Chipset | Intel H110 Express Chipset |
Supported CPU | Intel 6th, 7th, 8th & 9th Gen Core / Pentium / Celeron (LGA1151) |
Form Factor | Micro-ATX (180 mm x 216 mm) |
Memory Type | DDR4 |
Memory Slots | 2 x Dual-Channel DIMM |
Supported Memory Speed | Up to DDR4 2666 MHz |
Maximum Memory | Up to 64 GB (2x 32GB or 16GB per single slot) |
Expansion Slots | 1x PCIe 3.0 x16, 1x PCIe 2.0 x1 |
M.2 Slot | 1x M.2 (NVMe PCIe 2.0 x4) |
SATA Ports | 4x SATA 3.0 (6 Gbps) |
Video Output | 1x HDMI, 1x VGA (D-Sub) |
USB Ports | 2x USB 3.0, 4x USB 2.0 |
Other Ports | 1x PS/2 Keyboard/Mouse Combo |
LAN | 1x RJ45 (Realtek Gigabit LAN) |
Audio | 3x Audio Jacks (Line Out, Mic In, Line In) |
Internal Headers | 1x COM (RS232), 1x 4-Pin CPU Fan, 1x 4-Pin SYS Fan, 1x 3-Pin SYS Fan, 2x 5-Pin Diagnostic Card Header, 1x JBAT Jumper |
TPM | 1x TPM 2.0 Header |
Warranty | 3 Years (Manufacturing) |
Compatibility
Processors: Intel 6th, 7th, 8th and 9th Gen Core, Pentium and Celeron (LGA1151)
Memory: DDR4, up to 2666 MHz
Storage: NVMe M.2 (PCIe 2.0 x4) and SATA 3.0 drives
Frequently asked questions
Which processors does the Xenthra XN-H311M-VH-PRO support?
It supports Intel 6th, 7th, 8th and 9th Gen Core, Pentium and Celeron processors on the LGA1151 socket.
How much RAM can this H110 motherboard support?
It has 2 DDR4 slots and supports up to 64GB at speeds up to 2666 MHz.
Does it have an M.2 slot for SSDs?
Yes. It has 1 M.2 slot that supports NVMe in PCIe 2.0 x4 mode, plus 4 SATA 3.0 ports.
What display outputs does it have?
It has 1 HDMI port and 1 VGA (D-Sub) port.
