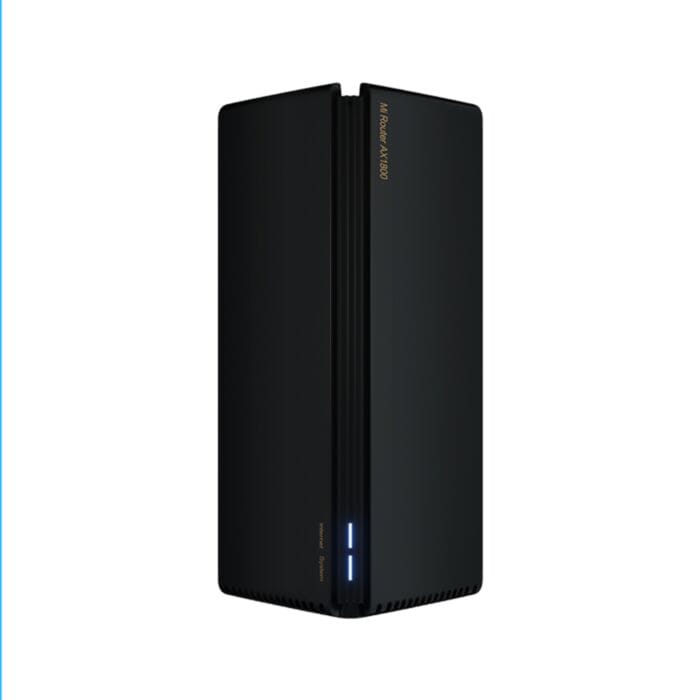

Xiaomi AX1800 Router WiFi 6 Dual-band

CPU

IPQ6000 Quad Core A53 1.2GHz CPU

Network Acceleration Engine

Single core 1.5GHz NPU

ROM

128MB

Memory

256MB

2.4G Wi-Fi

2×2 (IEEE802.11ax, 574Mbps)

5G Wi-Fi

2×2 (IEEE802.11ax, 1201Mbps)

Antenna

2*Dual frequency antenna

Heat Dissipation

Natural heat dissipation

Physical Interface

1*10/100/1000 WAN (Auto MDI/ MDIX)
3*10/100/1000 LAN (Auto MDI/ MDIX)

LED Indicator Llight

1*SYSTEM indicators
1*Internet indicators
4*Network ports

Reset Button

1*Reset button

Power Input Interface

1*Power input interface

Wireless Standard

IEEE 802.11a/b/g/n/ac/ax, IEEE802.3/3u/3ab

Certification Standards

GB/T9254-2008; GB4943.1-2011

Dual Band

2.4GHz, 5GHz

Wireless Channel

2.4GHz Channel: 1,2,3,4,5,6,7,8,9,10,11,12,13
5GHz Channel: 36,40,44,48,149,153,157,161,165

Modulation Mode

11b: DSSS: DBPSK(1Mbps), DQPSK (2Mbps), CCK (5.5/11Mbps)
11a/g: OFDM: BPSK (6/9Mbps), QPSK (12/18Mbps), 16QAM(24/36Mbps), 64QAM(48/54Mbps)
11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM. Rate set: MCS0~MCS15
11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM.
Rate set: MCS0~MCS9 (4 streams supported)
11ax: MIMI-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM. Rate set: MCS0~MCS11(4 streams supported)

Operating System

Intelligent router operating system MiWiFi ROM based on OpenWRT deep customization

Wireless Security

WPA-PSK / WPA2-PSK/ WPA3-SAE encryption, wireless access control (black and white list), hidden SSID, intelligent anti-scratch network

Management Application

Support Web, Android, iOS

Working Environment

Working temperature: 0~40ºC
Storage temperature: 10%~90%RH Non-condensing
Working humidity: -40~70ºC
Storage humidity: 5%~90%RH Non-condensing

Dimensions & Weight

Size(L x H x W x ): 41.0 x 13.4 x 17.7cm
Weight: 1.837kg
