DeepCool PCIe 4.0 Vertical GPU Bracket Kit

Heavy modern graphics cards put constant downward stress on motherboard PCIe slots, often leading to unsightly GPU sag and long-term hardware strain. Mounting the card vertically removes this mechanical load entirely while turning your case interior into a proper showcase for your GPU's front-facing fans and lighting.

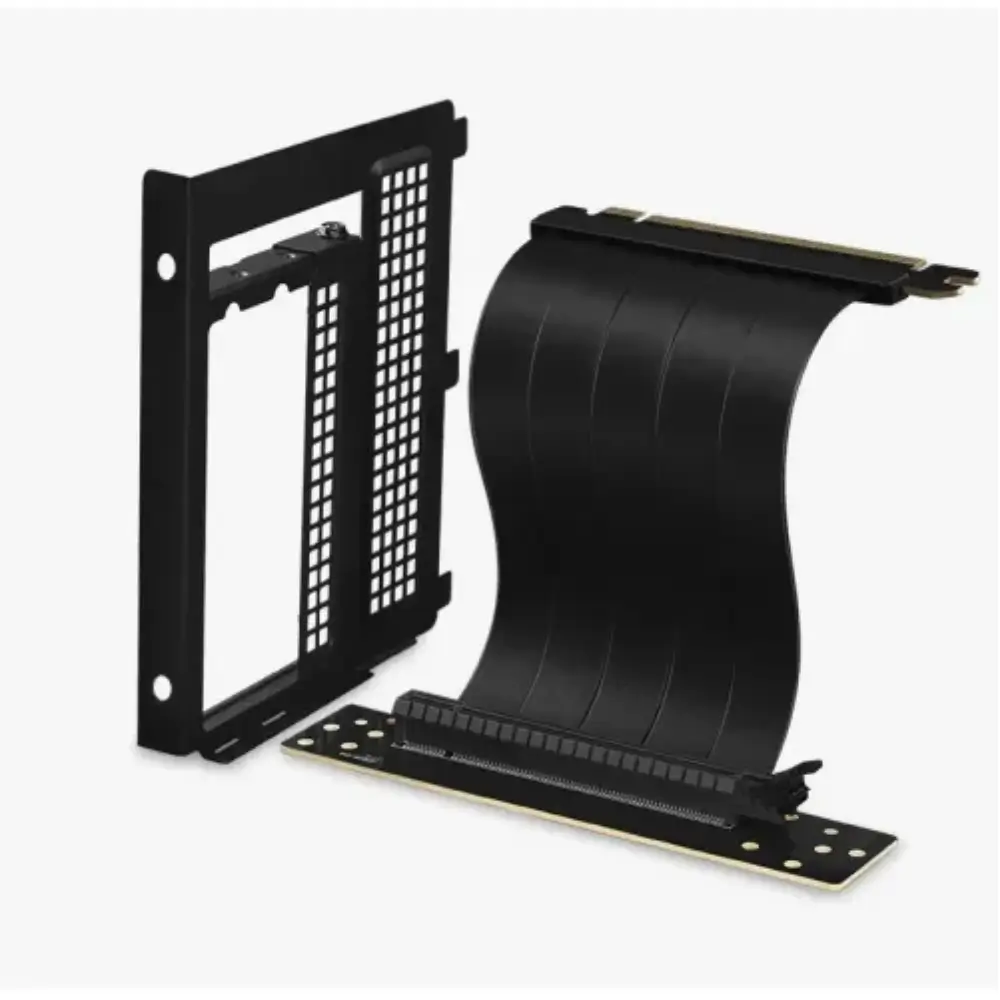

The DeepCool PCIe 4.0 Vertical GPU Bracket Kit provides a stable, reinforced mounting platform paired with a dedicated high-speed riser cable. It allows full PCIe 4.0 x16 bandwidth transmission without performance throttling, keeping modern GPUs running at optimal capacity inside compatible ATX cases.

Key Features of DeepCool Vertical GPU Bracket

• PCIe 4.0 x16 Support: Ensures full data throughput for current-generation graphics cards with backwards compatibility for PCIe 3.0 setups.

• Robust Steel Frame: Rigid metal construction securely holds bulky triple-slot and oversized dual-slot graphics cards without flexing.

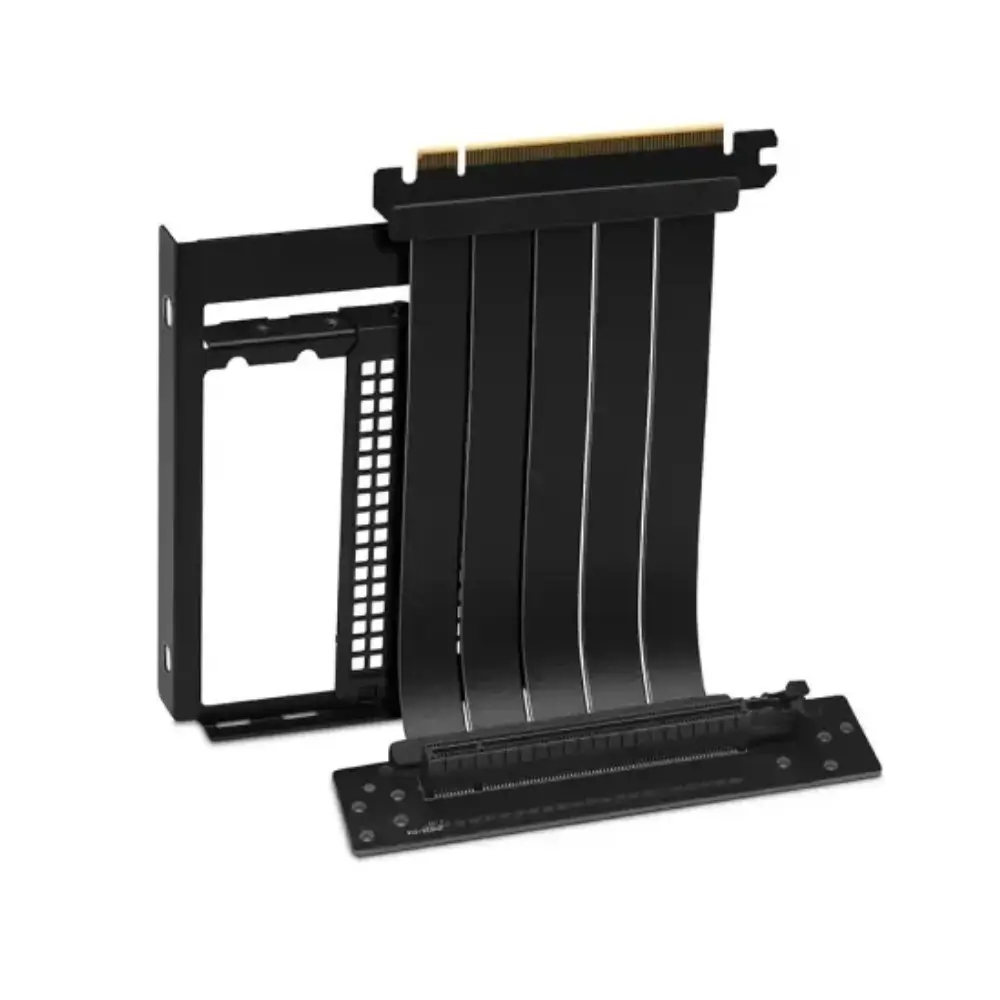

• Flexible High-Speed Ribbon: Multi-layer riser cable allows tight routing behind the bracket while maintaining stable signal integrity.

• Standardized Expansion Fit: Mounts directly into standard open PCI expansion slots found on standard ATX mid-tower and full-tower chassis.

• Showcase Orientation: Positions the GPU face-out toward the side glass panel, optimizing aesthetics without blocking internal motherboard headers.

Why Choose This DeepCool GPU Bracket

Unlike universal vertical mounts that require cutting the rear metal divider bars of your chassis, this bracket is engineered to work cleanly with cases featuring fully open, bridge-less PCI expansion slots. If your case has metal bars between each slot, you will need to trim them or confirm the bracket clears the rear cutouts, making chassis compatibility the primary check prior to installation.

Thermally, positioning the graphics card slightly back from the side glass maintains adequate intake room for air-cooled cards compared to built-in chassis mounts that place the fans flush against the glass. However, builders using large dual-tower CPU air coolers should verify clearance to avoid physical contact between the top of the graphics card backplate and the cooler body.

Best Use Cases

• Preventing physical GPU sag on heavy cards like the RTX 4080, 4090, or RX 7900 series.

• Showcasing custom air cooler shrouds and ARGB lighting through tempered glass side panels.

• Cases with seven open, bridge-less PCI expansion slots.

• Custom liquid loop builds needing clean routing space below the GPU block.

Technical Specifications
