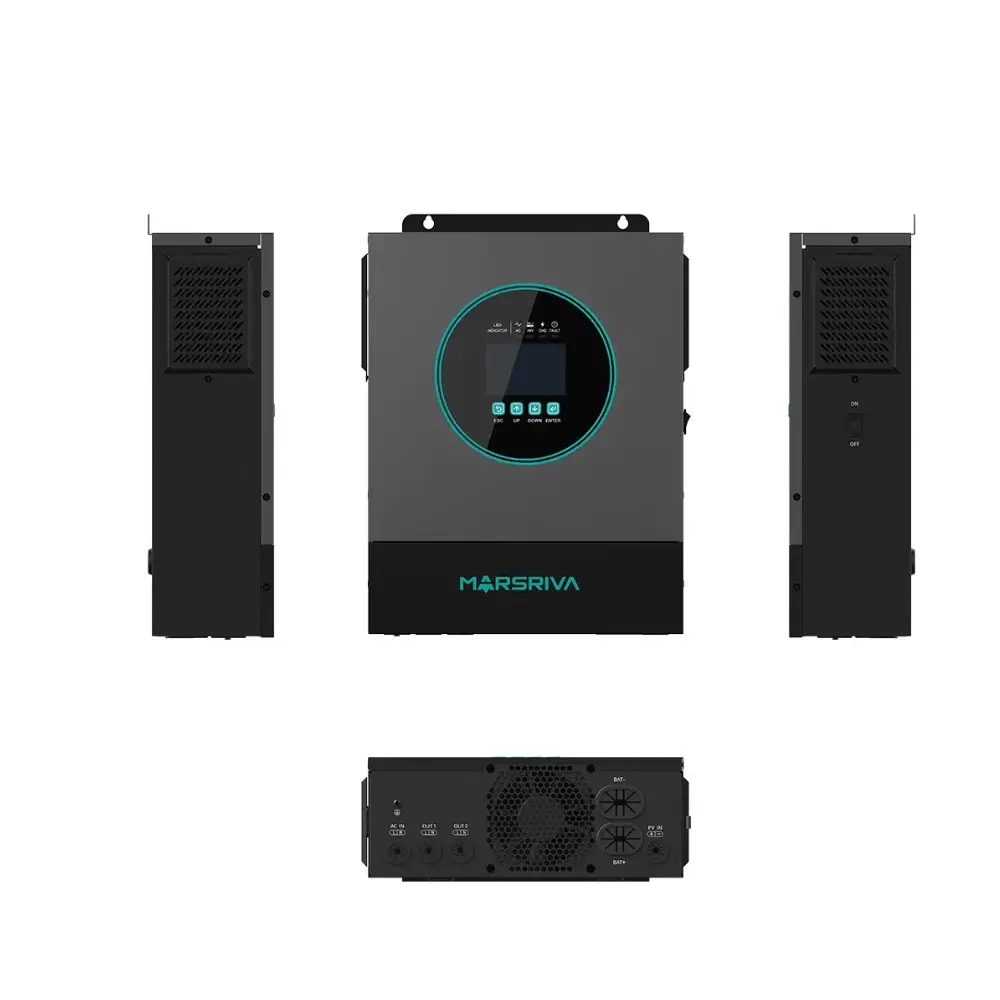

Marsriva MR-SPF2K-LP1-TL20E 2kW hybrid solar inverter front view

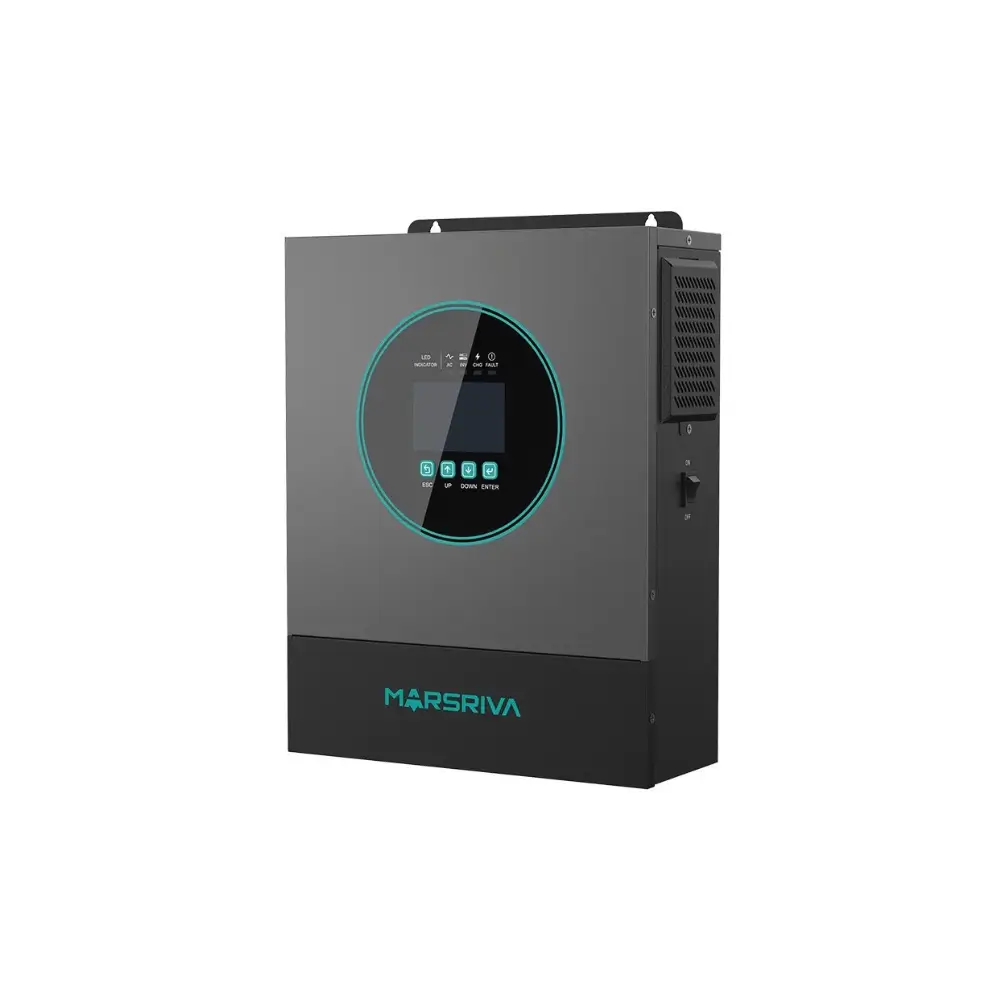

Marsriva MR-SPF2K-LP1-TL20E 2kW Hybrid Solar Inverter

By MARSRIVAIn stock

৳26,000

1

Good to know

Specifications

ModelMR-SPF2K-LP1-TL20E
TypeHybrid solar inverter (high frequency)
Rated AC Output Power2kVA / 2kW (power factor 1)
AC Peak / Surge Output Power2 times rated power
Battery TypeLead-acid / Lithium / User-defined
Solar Charger TypeMPPT
MPPT Voltage Range30V–400VDC (min. 60VDC without battery connected)
Max. PV Open Circuit Voltage450VDC
Max. PV Input Power3000W
Max. PV Input Current18A
Max. Solar Charging Current100A
AC Output Voltage208 / 220 / 230 / 240VAC ±5%
Nominal Output Frequency50 / 60Hz ±0.1% (battery mode)
Output WaveformPure sine wave
UPS Transfer Time10ms (UPS/APP/GEN mode)

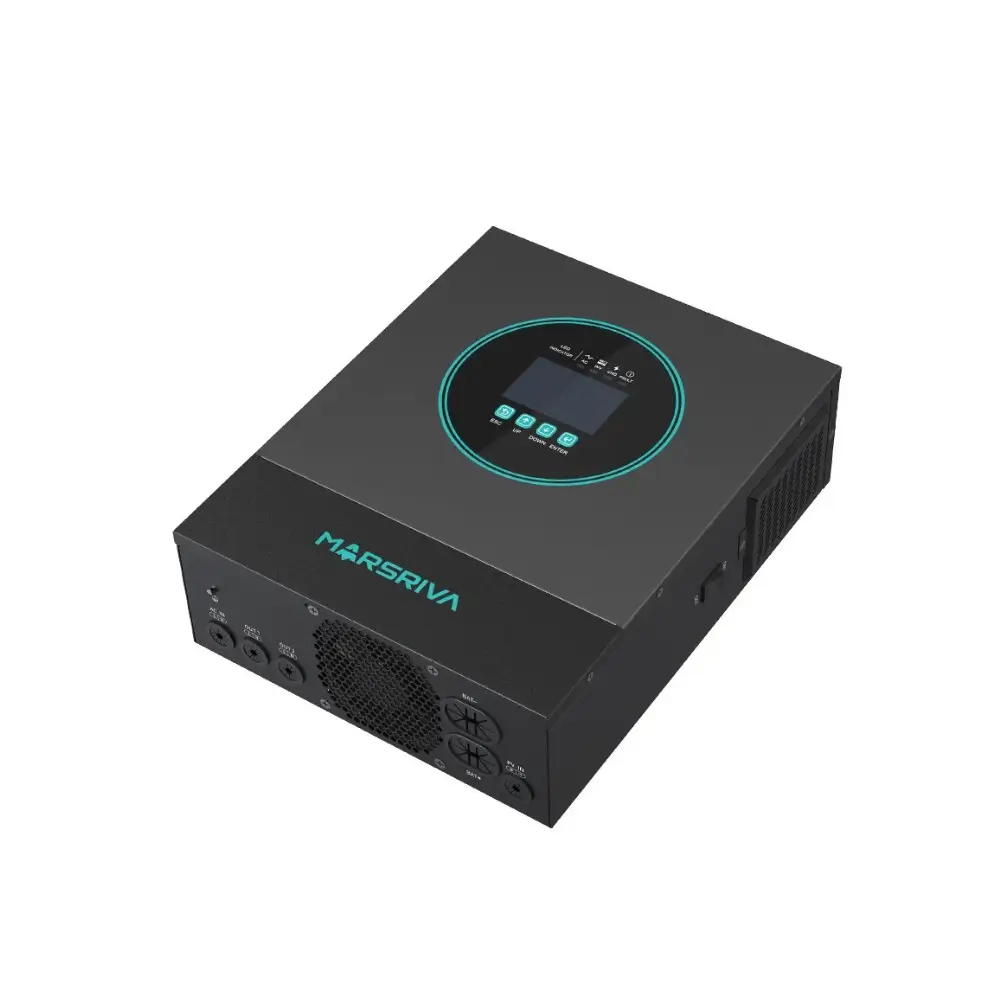

ConnectivityRS485 / CAN / RS232, WiFi module for monitoring
ProtectionIP20
Operating Temperature-10°C to 60°C
Storage Temperature-15°C to 60°C
Dimensions (W x H x D)331 × 270 × 100mm
Weight4.5kg
Warranty2 years

Description

The Marsriva MR-SPF2K-LP1-TL20E is a 2kW hybrid solar inverter that lets your solar panels and the utility grid power your loads at the same time. That means you use more solar energy during the day and rely less on grid electricity, while still having backup when the power goes out.

This Marsriva solar inverter delivers 2kW of rated output with a power factor of 1 and pure sine wave AC output, which is gentle on sensitive electronics. It works with lead-acid, lithium or user-defined battery settings, and it can even run without a battery connected.

It is a high-frequency design that is small and light, so it fits easily on a wall in a home, shop or small office. Built-in WiFi module support lets you monitor the system without checking it on-site.

Key Features

  • 2kW / 2kVA rated output, power factor 1: Delivers a full 2kW of usable power, so you can run more of your household or small-business loads.

  • 2x peak/surge output: Handles the start-up surge of appliances such as fans and pumps without tripping.

  • MPPT solar charger (30V–400V range, 450Voc): The wide voltage window gives you flexibility when designing your panel string, and MPPT tracking helps harvest more energy from your panels.

  • Solar and grid power loads at the same time: Reduces grid dependence and keeps your supply steady.

  • Works without a battery: Lets you start with a simple solar-plus-grid setup and add batteries later.

  • Feed-in to grid function: Sends surplus solar power to the grid where this is permitted.

  • 10ms UPS transfer time (UPS/APP/GEN mode): Switches quickly during an outage, helping keep computers, routers and electronics running.

  • Lead-acid, lithium or user-defined battery support: Works with the battery type you already have or plan to buy.

  • Pure sine wave output: Provides clean power that is safer for TVs, laptops and other sensitive devices.

  • RS485 / CAN / RS232 connectivity and WiFi module for monitoring: Makes battery communication and remote system tracking easier.

  • Compact, lightweight body (4.5kg): Easier to carry and install, and it saves wall space.

Why Choose This Marsriva 2kW Hybrid Solar Inverter

If you want one inverter that handles solar, grid and battery backup together, this 2kW hybrid solar inverter covers all three. You can start without batteries, add them when your budget allows, and choose lead-acid or lithium based on your needs.

For everyday use, the benefit is simple: solar powers your home during the day, the grid fills any gap, and the battery (when connected) keeps essentials running during a power cut. The pure sine wave output and fast transfer time protect your devices. With a 2-year warranty and WiFi monitoring support, you also get peace of mind after purchase. Many shoppers searching for a reliable Marsriva solar inverter in Bangladesh choose this model for its compact size and flexible setup.

Best Use Cases

  • Home solar and backup power setups

  • Small shops and offices that need steady power

  • Hybrid systems that combine solar, grid and batteries

  • Starter solar systems that begin without a battery

Technical Specifications

Compatibility

  • Batteries: lead-acid, lithium and user-defined battery settings

  • Communication: RS485, CAN and RS232 ports, plus a WiFi module for monitoring

  • Works with solar panel strings within the 30V–400V MPPT range (max. 450Voc)

Warranty

7 days replacement warranty

Read the warranty policy

Reviews

Frequently asked questions

What is the Marsriva MR-SPF2K-LP1-TL20E?

It is a 2kW hybrid solar inverter with an MPPT solar charger, pure sine wave output and support for lead-acid or lithium batteries.

Can this inverter work without a battery?

Yes. It can operate without a battery connected, though the minimum PV voltage is 60VDC in that case.

Can solar and grid power run my loads together?

Yes. Solar and the utility grid can power loads at the same time.

What batteries does the Marsriva solar inverter support?

It supports lead-acid, lithium and user-defined battery types.
