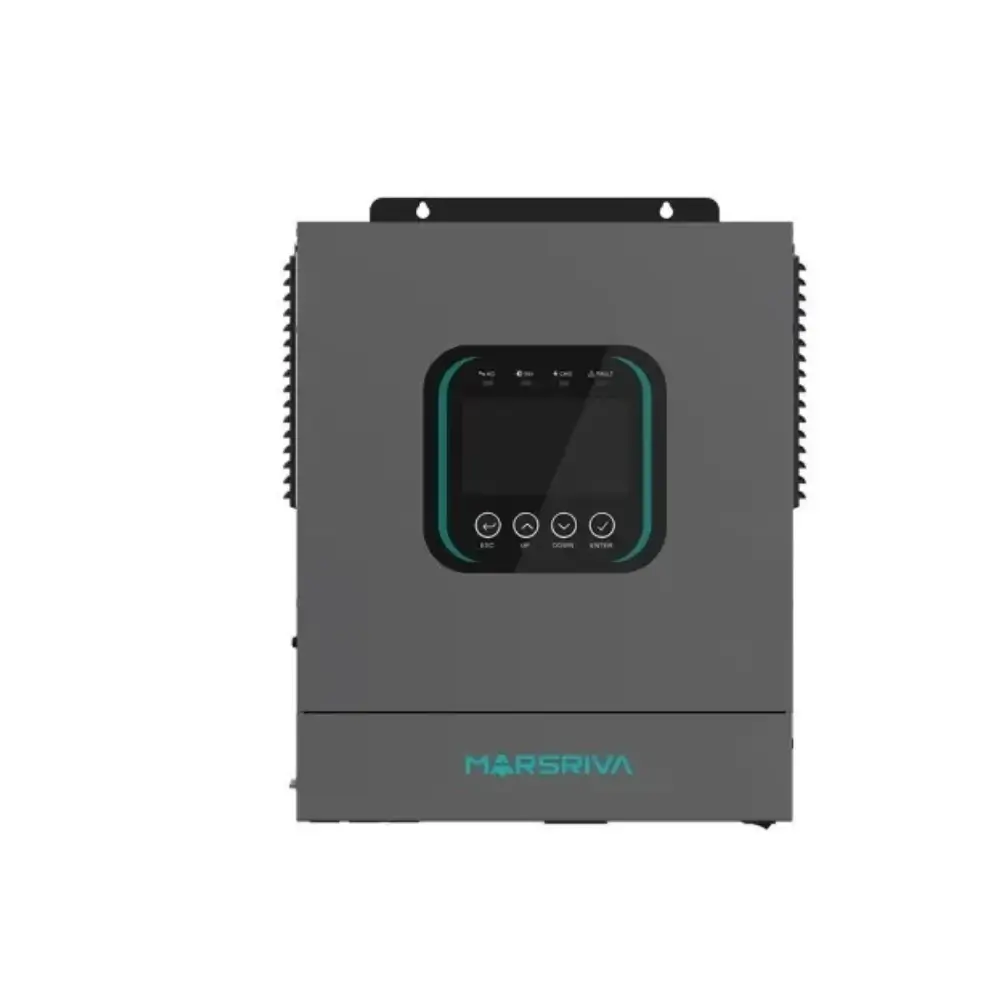

Marsriva MR-SPF6.5K-LP1-TL54E 6.5kW hybrid solar inverter front view

Marsriva MR-SPF6.5K-LP1-TL54E 6.5kW Hybrid Solar Inverter

By MARSRIVAIn stock

৳55,990

1

Good to know

Specifications

ModelMR-SPF6.5K-LP1-TL54E
Rated Power6.5kVA / 6.5kW
Surge Capacity2× rated power
AC Input Voltage Options208 / 220 / 230 / 240 VAC
AC Input Range170–264 VAC in UPS mode; 90–280 VAC in APP/GEN mode
Input Frequency50/60Hz ±10Hz, auto-sensing
AC Output Voltage208 / 220 / 230 / 240 VAC ±5%
Output Frequency (battery mode)50/60Hz ±0.1%
Peak EfficiencyUp to 94%
Transfer Time10ms
Battery Voltage48VDC nominal (40–61VDC range)
Supported BatteriesLead-acid, lithium, user-defined
Solar ChargerMPPT
Max PV Input Power9000W
Max PV Input Current27A
MPPT Voltage Range60–450VDC (80VDC minimum when no battery is connected)
Max PV Open-Circuit Voltage500VDC
Max Solar Charging Current120A
Max AC Charging Current120A
Max Hybrid Charging Current120A
Dimensions (W × H × D)336 × 394 × 110 mm
Net Weight8.8 kg
Protection RatingIP54
CommunicationBMS (RS485/CAN), Wi-Fi module
Operating Temperature-10°C to 60°C
Storage Temperature-15°C to 60°C
Humidity5%–95% RH, non-condensing

Description

The Marsriva MR-SPF6.5K-LP1-TL54E is a 6.5kW hybrid solar inverter built to keep your home, shop or small business running through load-shedding. It delivers 6500W of rated power at a 1.0 power factor. It also lets solar and grid power feed your loads at the same time.

It weighs only 8.8 kg and mounts on a wall, so one person can install it. With IP54 protection against dust and water splashes, it suits real-world spaces like utility rooms, garages and shop backrooms.

If you are comparing a Marsriva solar inverter for a larger backup or solar setup in Bangladesh, this 6.5kW model gives you room to grow. You can run up to 9 units in parallel.

Key Features

  • 6.5kVA / 6.5kW rated power (PF 1.0): Delivers the full 6500W as usable power, so you can run more appliances at once.

  • Lightweight, wall-mounted design (8.8 kg): One person can install it, which keeps installation simpler.

  • Dual AC outputs: Separates critical and non-critical loads. Essentials like lights, fans and the router stay protected while heavier loads are managed separately.

  • Solar and grid power blending: Solar and utility power can supply loads together, which reduces how much you rely on the grid.

  • Built-in BMS communication (CAN/RS485): Connects with compatible batteries for smarter battery management.

  • Battery-free operation: Runs without a battery when there is enough PV input, useful for daytime solar use.

  • Wi-Fi module with app control: Lets you monitor and manage the inverter in real time from your phone.

  • Parallel expansion up to 9 units: Lets you grow capacity later without replacing the system.

  • IP54 protection: Resists dust and water splashes, so it holds up better in demanding spots.

  • MPPT solar charger (up to 9000W PV input): Handles large solar arrays and charges batteries at up to 120A.

Why Choose the Marsriva MR-SPF6.5K-LP1-TL54E 6.5kW Hybrid Solar Inverter

This hybrid solar inverter covers the main things buyers look for in a solar backup system.

  • Strong output: 6.5kW with a surge capacity of twice the rated power helps it start motor-driven appliances.

  • Flexible power sources: It works with solar, the grid and a battery, and it can run without a battery during good sunlight.

  • Battery freedom: It supports lead-acid, lithium and user-defined battery profiles, so you are not locked into one battery type.

  • Fast switching: A 10ms transfer time helps keep connected loads running when the grid drops.

  • Room to scale: Start with one unit and add more in parallel as your power needs increase.

  • Wide input tolerance: It accepts a broad AC input range, which helps where grid voltage fluctuates.

Best Use Cases

  • Homes that need reliable backup during load-shedding

  • Shops, offices and small businesses with essential loads

  • Solar-powered setups that want to cut grid dependence

  • Expandable systems that may grow with demand

Technical Specifications

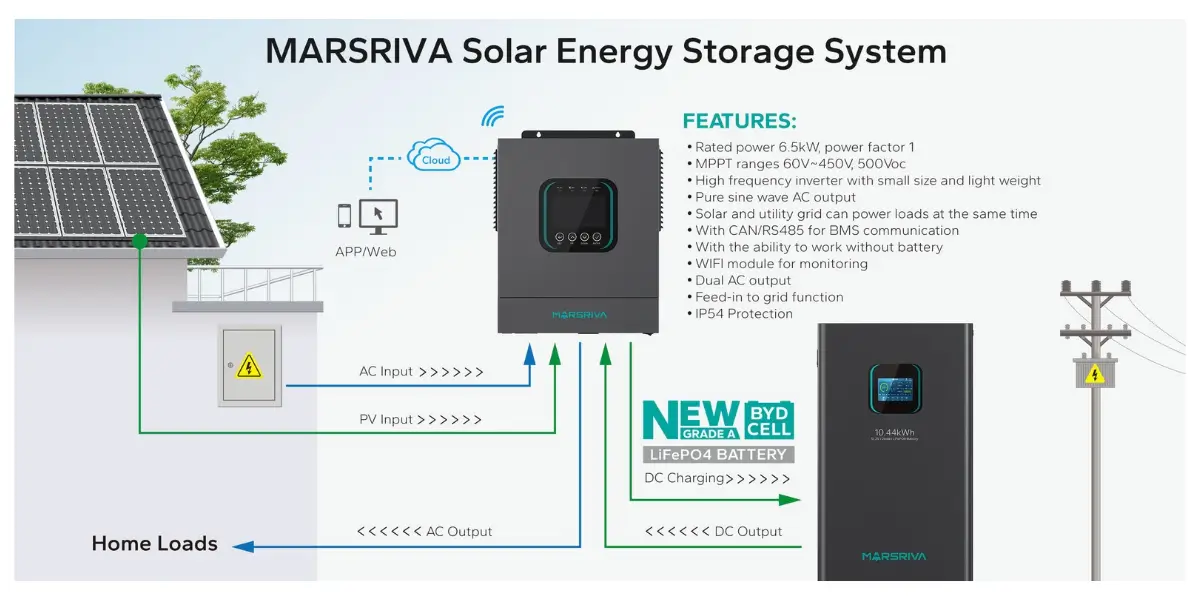

MARSRIVA 6 5KW Inverter Ports Communication DetailMARSRIVA 6 5KW Solar Inverter Dual AC Output Mppt

Compatibility

  • Batteries: Lead-acid, lithium and user-defined battery types at 48V.

  • Battery communication: CAN and RS485 BMS interfaces.

  • Solar input: PV arrays up to 9000W, within the 60–450VDC MPPT range.

  • Monitoring: Wi-Fi module for app-based control.

Warranty

7 days replacement warranty

Read the warranty policy

Reviews

Frequently asked questions

What is the rated power of the Marsriva MR-SPF6.5K-LP1-TL54E?

It is rated at 6.5kVA / 6.5kW with a power factor of 1.0. Surge power is twice the rated power.

Can this hybrid solar inverter work without a battery?

Yes. It can run without a battery when there is sufficient PV input. Without a battery, the MPPT minimum voltage is 80VDC.

What type of batteries can I use with this Marsriva solar inverter?

It supports lead-acid, lithium and user-defined battery types at a nominal 48VDC. Built-in CAN/RS485 lets it communicate with compatible BMS-equipped batteries.

How many inverters can I connect in parallel?

You can connect up to 9 units in parallel to expand system capacity.
