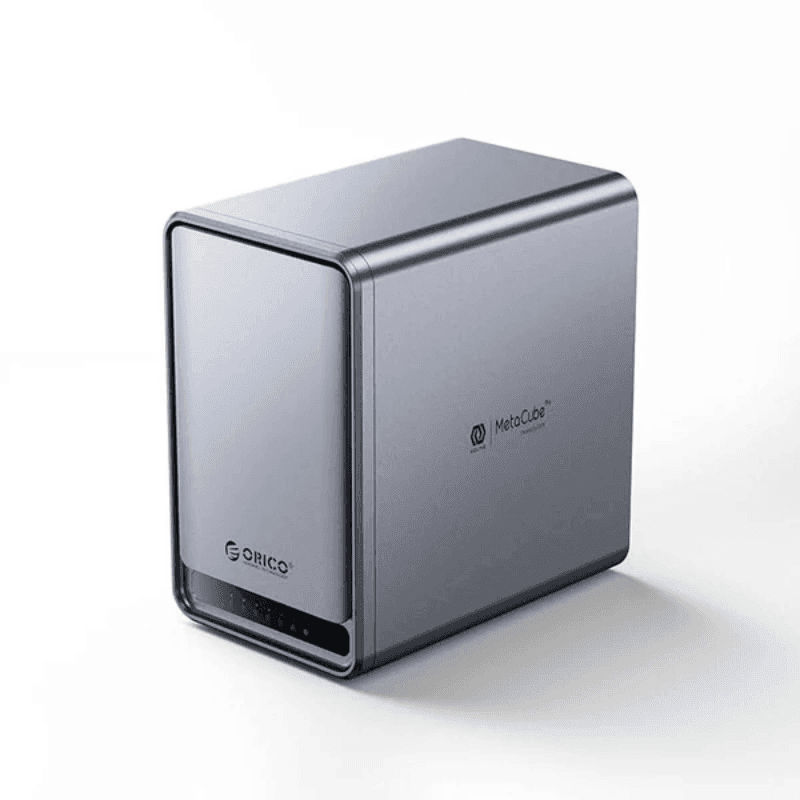

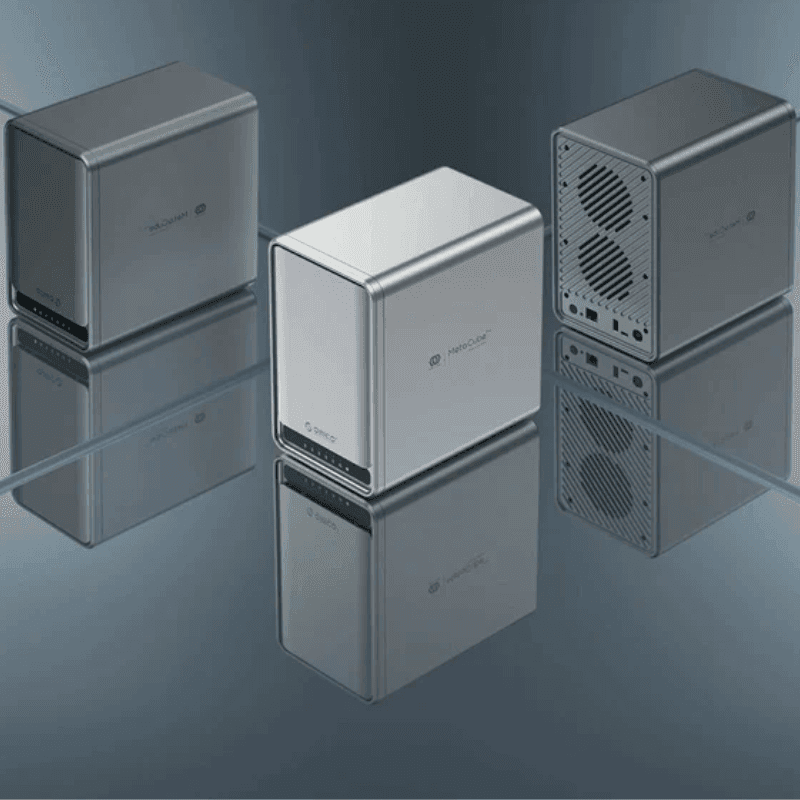

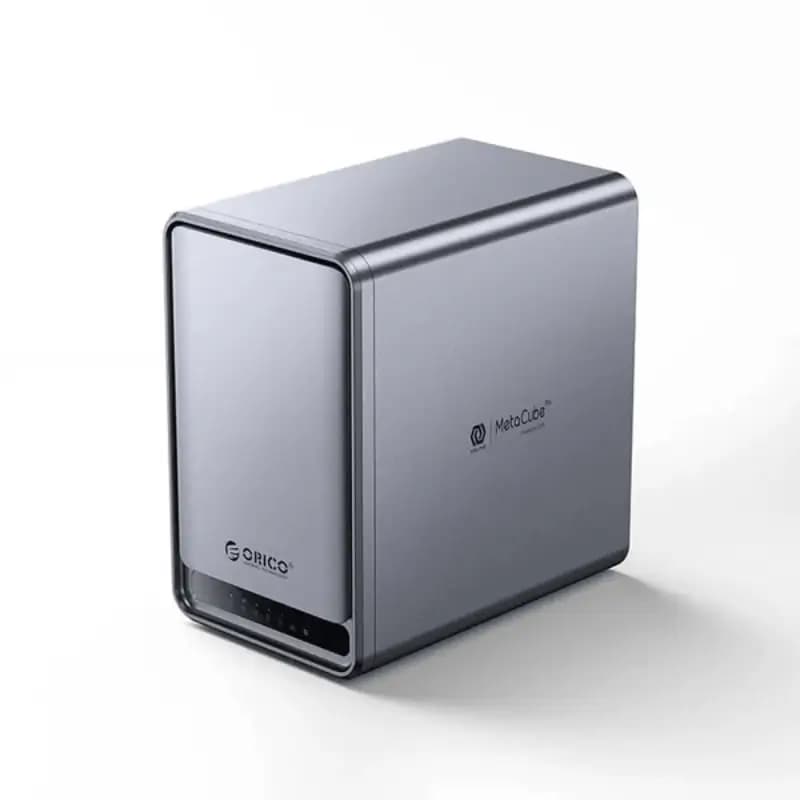

ORICO MetaCube Pro 5-Bay NAS Storage TS500
BDT 46,890
Quantity
ORICO MetaCube Pro TS500 5-Bay NAS Storage
The ORICO MetaCube Pro TS500 is a 5-bay NAS storage system built for anyone who needs reliable, scalable data storage at home or in a small office. It supports up to five 2.5"/3.5" SATA HDDs or SSDs, giving you the flexibility to expand your storage as your data grows, up to a massive 100TB total capacity.
Powered by an ARM Quad-Core Cortex-A55 processor with 2GB DDR4 RAM, this NAS runs on Weline OS, enabling intelligent file classification, automatic backup, and remote data sharing. With 1GbE network connectivity and multiple RAID modes, it delivers stable, fast file transfers whether you're backing up photos from your phone or syncing documents across your PC and Mac.
Whether you're setting up centralized storage for a growing family photo library or building a private cloud for small team collaboration, the MetaCube Pro TS500 offers the capacity and flexibility to keep your data organized and accessible.
Key Features
5-Bay High-Capacity Storage – Supports up to 100TB total (20TB per bay) using 2.5"/3.5" SATA HDDs or SSDs, giving you room to scale as your storage needs grow.
Multiple RAID Modes – Supports RAID 0, 1, 5, 10, and LVM, letting you choose between speed, redundancy, or a balance of both to protect your data.
1GbE Network Connectivity – Delivers fast, stable file transfers and smooth remote access across connected devices.
Weline OS Smart Management – Enables automatic backup, intelligent file classification, and remote sharing, making it easier to organize and locate your data.
Versatile Connectivity – Includes USB 3.2 Gen1 Type-C, USB 3.2 Gen1 Type-A, and a Gigabit Ethernet port for flexible connections to your devices and network.
ARM Quad-Core Processor with 2GB RAM – Provides steady performance for everyday file management, backup, and multi-device access.
Why Choose the ORICO MetaCube Pro TS500 5-Bay NAS Storage
The MetaCube Pro TS500 stands out for offering serious storage capacity and flexibility without unnecessary complexity. Its five-bay design and RAID support mean you can start small and expand later, or set up redundancy from day one to protect your important files.
With Weline OS handling automatic backups and smart classification, day-to-day data management stays simple, while the 1GbE network port ensures your files transfer quickly and reliably, whether you're backing up devices at home or sharing files across a small office.
Best Use Cases
Home media and photo storage
Small office and team file sharing
Automatic phone and PC backup
Private cloud storage setup
Technical Specifications
Feature | Details |
|---|---|
Brand | ORICO |
Model | ORICO-TS500 (MetaCube Pro) |
Type | 5-Bay Network Attached Storage (NAS) |
Dimensions | 231(L) x 150(W) x 245(H)mm |
Material | ABS |
Internal Interface | SATA3.0 (6Gbps) x 5 |
Compatible Drives | 2.5"/3.5" SATA HDD/SSD |
Supported Capacity | Up to 100TB total, 20TB per bay |
Processor | ARM Quad-Core Cortex-A55, 1.7GHz |
RAM | 2GB DDR4 |
Flash Memory | 8GB eMMC |
Network | 1GbE (Gigabit Ethernet) |
Connectivity | USB 3.2 Gen1 Type-C, USB 3.2 Gen1 Type-A, RJ-45, DC-in 12V |
Operating System | Weline OS |
RAID Support | RAID 0, 1, 5, 10, LVM |
Power | DC 12V 10A |
Compatibility
2.5" and 3.5" SATA HDDs and SSDs (drives sold separately)
PC and Mac backup via Weline OS
Mobile app access for remote file management
Package Includes
1 x ORICO MetaCube Pro TS500 NAS Enclosure
1 x Power Adapter
1 x Network Cable
1 x Screwdriver
2 x Screw Packs
1 x User Manual
Frequently Asked Questions
Does the ORICO MetaCube Pro TS500 come with hard drives included?
No, this NAS ships diskless. You'll need to purchase compatible 2.5"/3.5" SATA HDDs or SSDs separately.
What RAID modes does this NAS support?
It supports RAID 0, 1, 5, 10, and LVM, giving you options for performance, redundancy, or flexible storage pooling.
How much storage capacity can this NAS support?
It supports up to 100TB total across its five bays, with a maximum of 20TB per single drive.
Can I access my files remotely with this NAS?
Yes, through the Weline OS app you can remotely store, share, and manage your files from other devices over the network.
What network speed does the MetaCube Pro TS500 support?
It uses a 1GbE Gigabit Ethernet connection for fast, stable file transfers and network access.
Is this NAS suitable for small office or team use?
Yes, its 5-bay capacity, RAID support, and remote access features make it a practical option for small offices and team file sharing, as well as home use.
Is the ORICO MetaCube Pro an original, genuine product?
Yes, it's sold as an original ORICO product with authentic build quality and components.
Buy the ORICO MetaCube Pro TS500 5-Bay NAS Storage at the best price in Bangladesh from Geary BD, with fast nationwide delivery and genuine product assurance.
