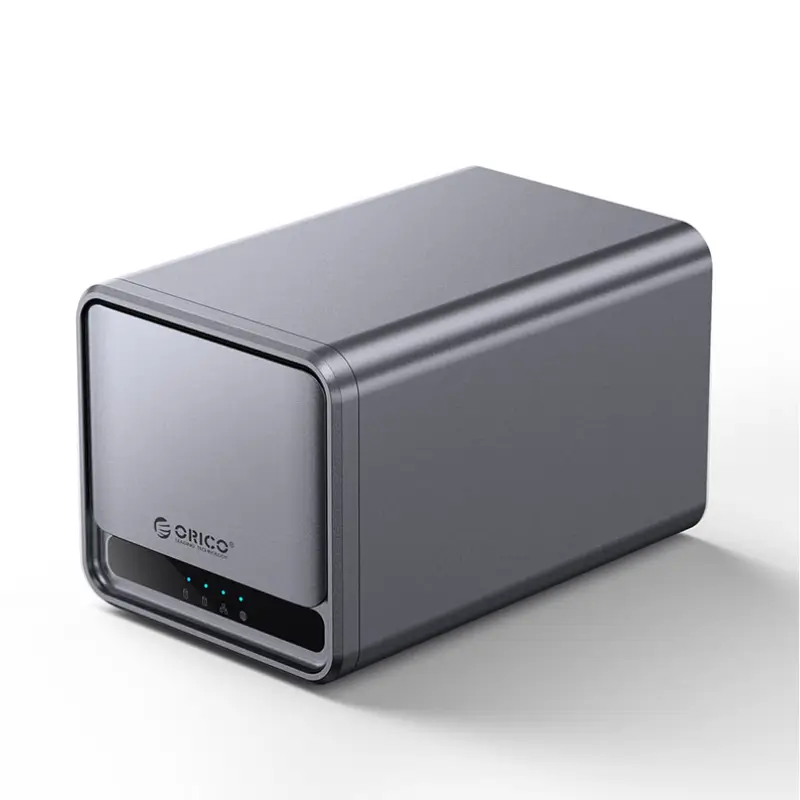

ORICO TS200 NAS MetaCube 2-Bay Private Cloud Storage
BDT 30,400
Quantity
ORICO TS200 NAS MetaCube 2-Bay Private Cloud Storage
The ORICO NAS MetaCube (TS200) is a 2-bay private cloud storage device built for anyone who wants secure, centralized file storage without relying on third-party cloud services. Its biggest advantage is flexibility — support for up to 40TB total capacity across two bays means it scales from personal backup to serious home or small office storage.
Powered by a 4-core ARM Cortex-A55 CPU and 2GB of DDR4 memory, the TS200 runs Weline OS smoothly, handling file access, backups, and RAID configurations without lag. Whether you're backing up photos and documents or running a shared drive for your household or small team, this NAS keeps your data local, private, and under your control.
With USB 3.2 and Gigabit Ethernet connectivity, plus RAID 0/1 and LVM support, the MetaCube offers real data protection options alongside fast transfer speeds — all in a compact ABS enclosure with integrated air duct cooling.
Key Features
2-Bay Private Cloud Storage: Supports 2.5"/3.5" SATA HDDs or SSDs with up to 20TB per bay (40TB total), giving you room to grow your storage over time.
4-Core ARM Cortex-A55 Processor: A 1.7GHz quad-core CPU handles multiple simultaneous tasks like file transfers, backups, and RAID management without slowing down.
2GB DDR4 Memory + 8GB eMMC: Delivers smooth multitasking performance along with dedicated flash storage for the operating system.
RAID 0/1 & LVM Support: Choose between speed-focused RAID 0, data-redundant RAID 1, or flexible LVM configuration depending on your storage priorities.
Versatile Connectivity: USB 3.2 Gen1 Type-C, USB 3.2 Gen1 Type-A, and a 1GbE network port provide fast wired transfers and network access.
Weline OS: A dedicated operating system built for managing files, users, and backups from an easy-to-use interface.

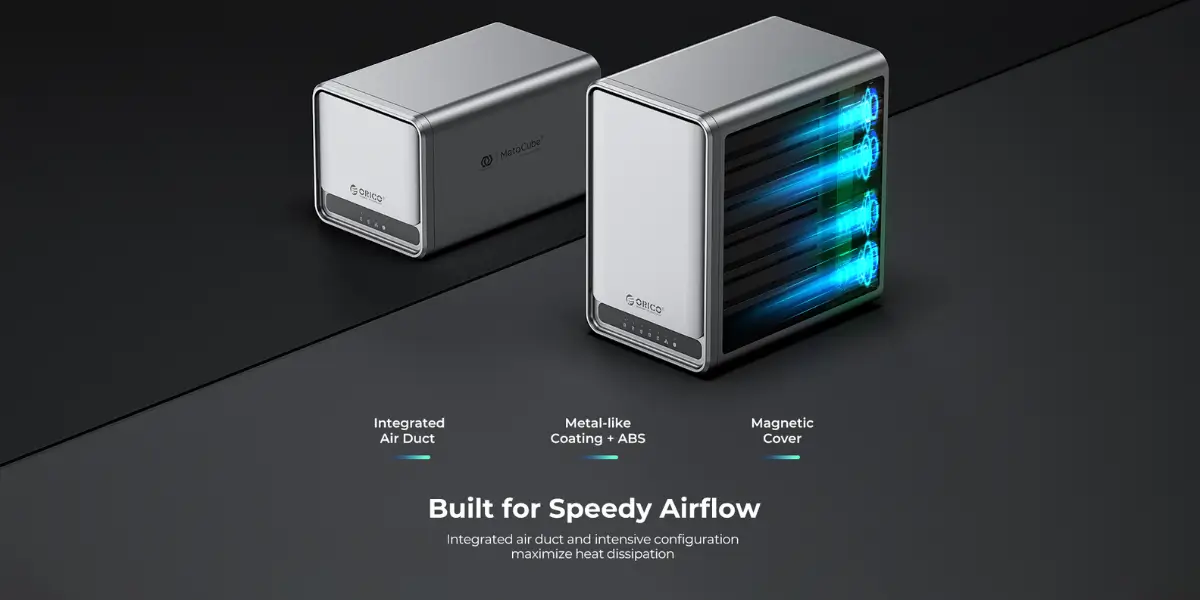

Efficient Cooling: An integrated air duct design keeps internal temperatures stable during extended use, protecting your drives and data.
Why Choose the ORICO TS200 NAS MetaCube
Cloud subscriptions add up over time and hand your data to a third party — the TS200 gives you the same centralized access and backup convenience while keeping everything on hardware you own. With RAID support built in, you also get real protection against drive failure, not just storage space.
The combination of a capable ARM CPU, ample memory, and fast USB/network interfaces makes it practical for everyday use — whether that's automatic phone backups, a shared media library, or a small office file server.
Best Use Cases
Home users wanting private cloud backup for photos and files
Small offices needing a shared, centralized file server
Households building a personal media library
Anyone wanting RAID-protected storage without a full server setup
Technical Specifications
Specification | Details |
|---|---|
Product Model | ORICO-TS200 |
Material | ABS |

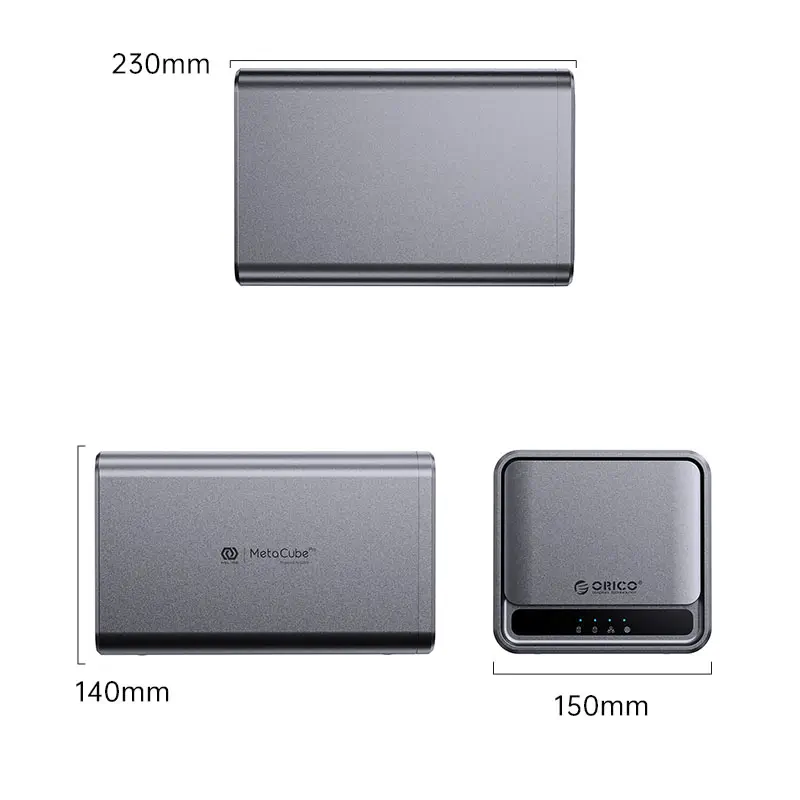

Dimensions | 231(L) x 150(W) x 140(H) mm |
Compatibility | 2.5"/3.5" SATA HDD/SSD |
CPU | ARM 4-Core RTD1619B Cortex-A55, 1.7GHz |
Memory | 2GB DDR4 |
Flash Memory | 8GB eMMC |
Internal Interface | SATA3.0 (6Gbps) x 2 |
Transmission Interface | USB3.2 Gen1 Type-C x1, USB3.2 Gen1 Type-A x1, 1GbE Network Port x1, DC IN 12V x1 |
Supported Capacity | Total 40TB, 20TB per bay |
Operating System | Weline OS |
RAID Support | RAID 0 / 1, LVM |
Heat Dissipation | Integrated Air Duct |
Power Input | DC 12V 5A |
Package Includes
Power Adapter x 1
Network Cable x 1
Screwdriver x 1
Screw Pack x 2
User Manual x 1
