10-point infrared touch on the ViewSonic TD2223 monitor

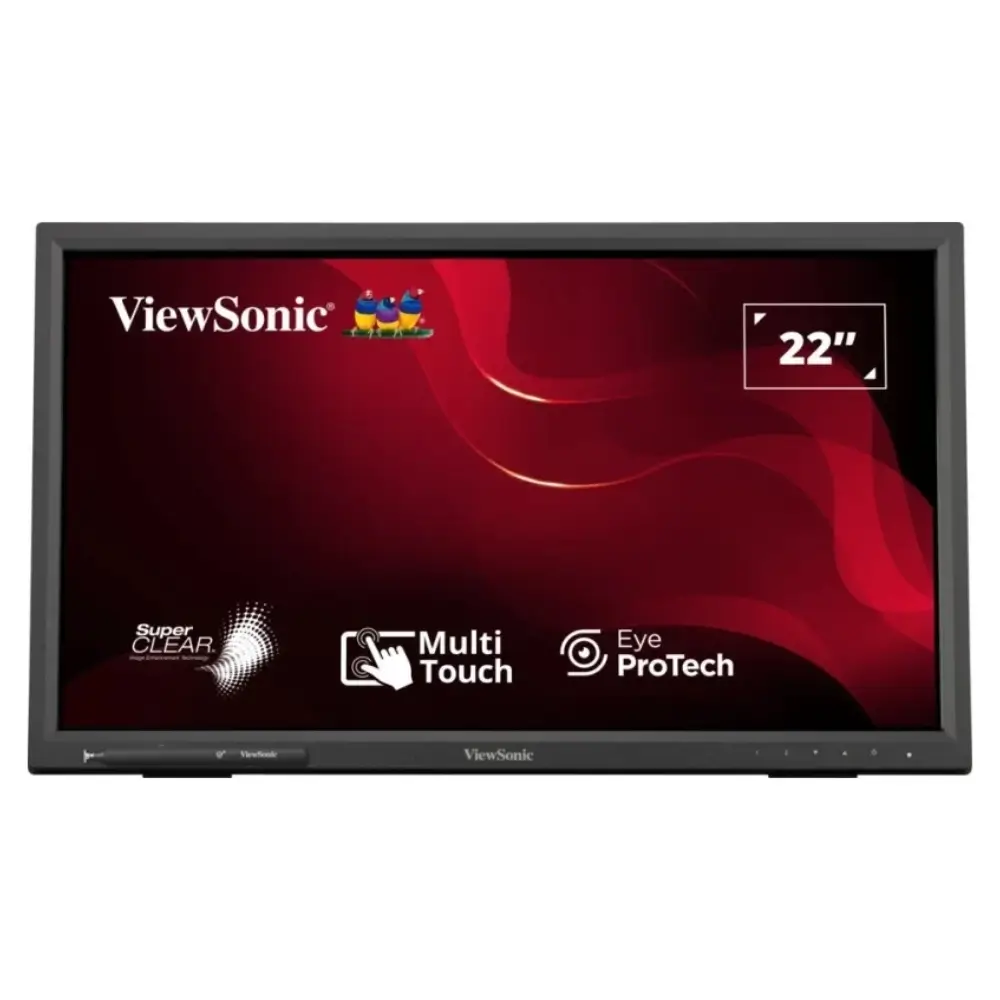

ViewSonic TD2223 22-Inch Full HD Touch Screen Monitor

By viewsonicIn stock

৳33,399

1

Good to know

Specifications

BrandViewSonic
ModelTD2223
Display Size22 inches (21.5" viewable)
Panel TypeVA
Resolution1920 x 1080 (Full HD)
Aspect Ratio16:9
Touch TechnologyIR, 10-point multi-touch
Touch InputFinger, stylus, gloved hand
Brightness250 cd/m² (typ)
Static Contrast Ratio3,000:1 (typ)
Dynamic Contrast Ratio20M:1
Refresh Rate75Hz
Response Time (GTG)6.5ms
Viewing Angles178° horizontal / 178° vertical
Colors16.7 million (8-bit true)
Color GamutNTSC 72% (typ), sRGB 104% (typ)
Glass Hardness / Thickness7H / 2mm
Surface TreatmentGlossy, hard coating
BacklightLED, 30,000 hours (min)
Video Inputs1 x VGA, 1 x HDMI 1.4, 1 x DVI-D
USB Ports2 x USB 2.0 Type-A, 1 x USB 2.0 Type-B
Audio3.5mm audio in, 3.5mm audio out, 2W x 2 speakers
Power SupplyInternal, AC 100-240V
Power Consumption18.5W typical, 21.8W max, 0.5W standby
Tilt20° forward / 40° back
VESA Mount100 x 100 mm
SecurityKensington lock slot
Dimensions with Stand (W x H x D)519 x 329 x 101 mm
Weight4.2 kg (3.7 kg without stand)
Operating Temperature0°C to 40°C
Humidity (non-condensing)20% to 90%

Description

The ViewSonic TD2223 is a 22-inch touch screen monitor built for fast, accurate multi-touch use. Its infrared (IR) touch layer detects up to 10 points of contact, so you can tap, swipe and write naturally with a finger, a stylus or even a gloved hand.

The Full HD display keeps text and images sharp, and the adjustable back tilt of up to 40 degrees lets you find a comfortable angle for touching and writing. If you are looking for a dependable ViewSonic monitor for interactive work, this 22 inch IR touch monitor is a practical choice.

It suits classrooms, reception desks, shops, meeting rooms and any workspace where direct touch input saves time. VGA, HDMI, DVI and USB connections let it work with a wide range of PCs.

Key Features

  • Intuitive 10-point IR touchscreen: Detects up to 10 simultaneous touches, so pinch, zoom, swipe and multi-finger gestures feel accurate and responsive.

  • Finger, stylus and glove compatibility: You can use it in different working conditions, from handwriting with a stylus to operating it while wearing gloves.

  • Magnetic pen placeholder: Keeps your stylus within reach so it does not get lost between uses.

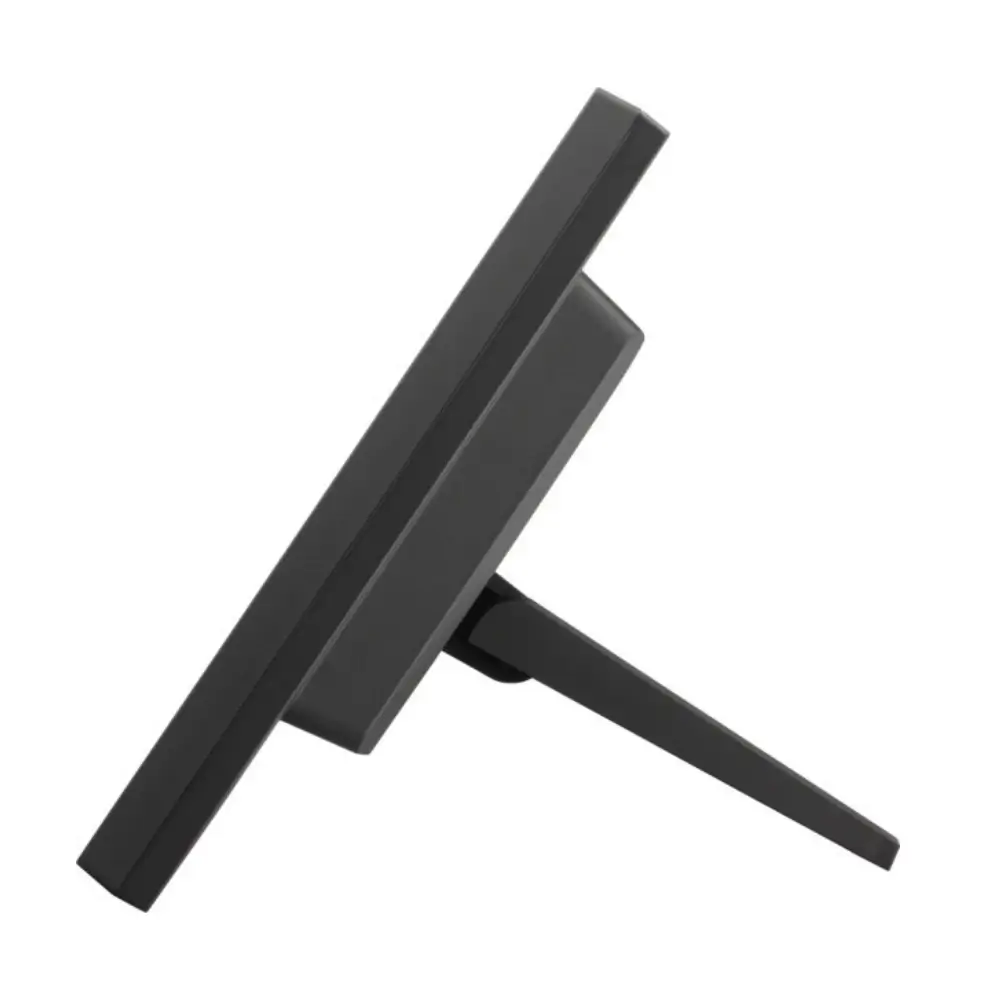

  • Adjustable tilt (20° forward, 40° back): Lets you angle the screen for comfortable touch, writing or presentation use.

  • Scratch-resistant 7H hardness glass (2mm): The hard-coated surface helps protect the screen from surface damage during frequent touching.

  • Full HD 1920 x 1080 resolution: Delivers clear text and images on a 21.5-inch viewable area, good for documents, forms and presentations.

  • VA panel with 178° viewing angles: Offers a 3,000:1 static contrast ratio and consistent visibility when several people look at the screen together.

  • 75Hz refresh rate and 6.5ms response time: Gives smoother movement and a faster feel when scrolling, drawing or navigating menus.

  • Flicker-free backlight with a low blue light software solution: Helps make longer sessions more comfortable.

  • Built-in 2W x 2 speakers: Adds basic audio for presentations and videos without extra equipment.

  • Multiple inputs (VGA, HDMI 1.4, DVI-D, USB): Connects to both newer and older PCs and display setups.

  • VESA 100 x 100 mm and Kensington lock slot: Supports wall or arm mounting and adds a point to secure the monitor in shared spaces.

Why Choose the ViewSonic TD2223 Touch Screen Monitor

The TD2223 makes everyday interaction faster. Instead of relying only on a mouse and keyboard, you can touch the screen directly to open apps, annotate, sign, draw or navigate. This reduces steps in presentations, teaching, customer-facing counters and point-of-service setups.

The IR touch technology works with fingers, a stylus and gloves, so it is flexible for different users and environments. The 7H hard-coated glass adds durability for screens that get touched all day, and the tilt range lets you set it up for upright viewing or a more writing-friendly angle.

Connectivity is another strength. With VGA, HDMI and DVI inputs and a certified Windows 10/11 compatibility listing, it fits into existing office, school and retail systems without much hassle. For buyers who want a trusted ViewSonic monitor with real touch capability, the TD2223 offers a solid balance of features and everyday usability.

Best Use Cases

  • Classrooms and training rooms for interactive lessons and annotation

  • Reception desks, kiosks and retail counters for customer-facing touch use

  • Offices and meeting rooms for presentations and collaboration

  • Designers, students and professionals who prefer stylus input

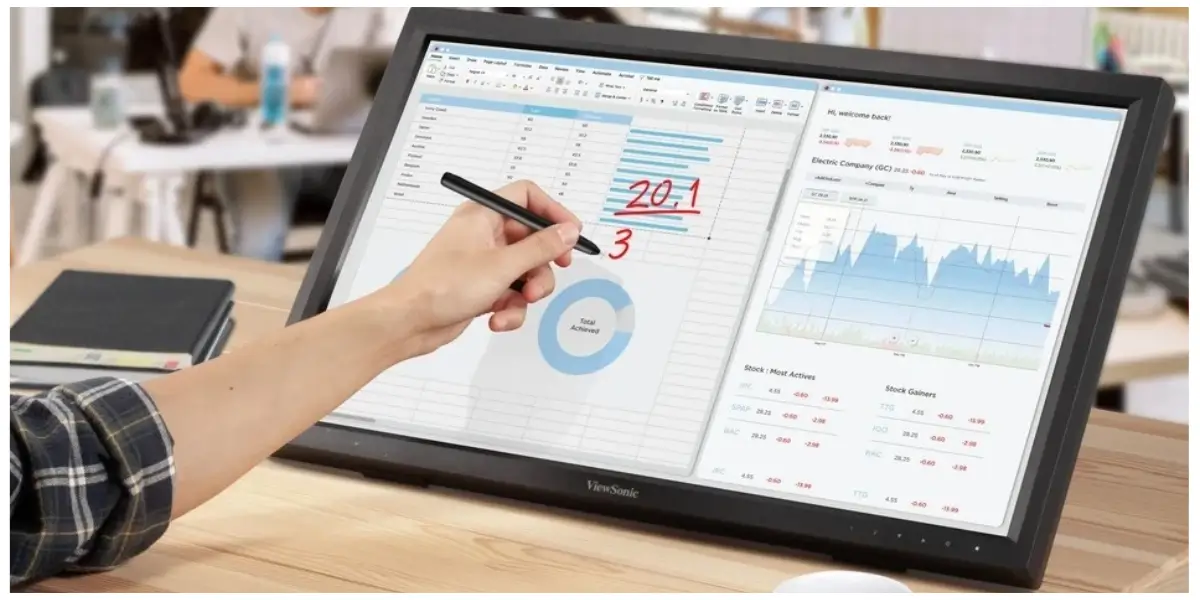

viewsonic TD2223 10 Point Ir Touch Feature

Compatibility

  • Windows 10/11 certified

  • macOS tested

  • Maximum supported resolution on PC and Mac: 1920 x 1080

  • Connects via VGA, HDMI 1.4 or DVI-D video input

Package Includes

  • ViewSonic TD2223 touch monitor x 1

  • 3-pin power plug (IEC C13 / CEE22) x 1

  • HDMI cable (v1.4, male-male) x 1

  • USB A/B cable (v2.0, male-male) x 1

  • Audio cable (male-male) x 1

  • Quick Start Guide x 1

Warranty

7 days replacement warranty

Read the warranty policy

Reviews

Frequently asked questions

What type of touch screen does the ViewSonic TD2223 use?

It uses an infrared (IR) touchscreen that supports up to 10 touch points at once.

Can I use gloves or a stylus with this touch screen monitor?

Yes. The TD2223 works with fingers, a stylus and gloved hands.

Is the ViewSonic TD2223 compatible with Windows and Mac?

It is Windows 10/11 certified and macOS tested, with a maximum resolution of 1920 x 1080.

What ports does the TD2223 have?

It has VGA, HDMI 1.4, DVI-D, two USB 2.0 Type-A ports, one USB 2.0 Type-B port, and 3.5mm audio in and out.
