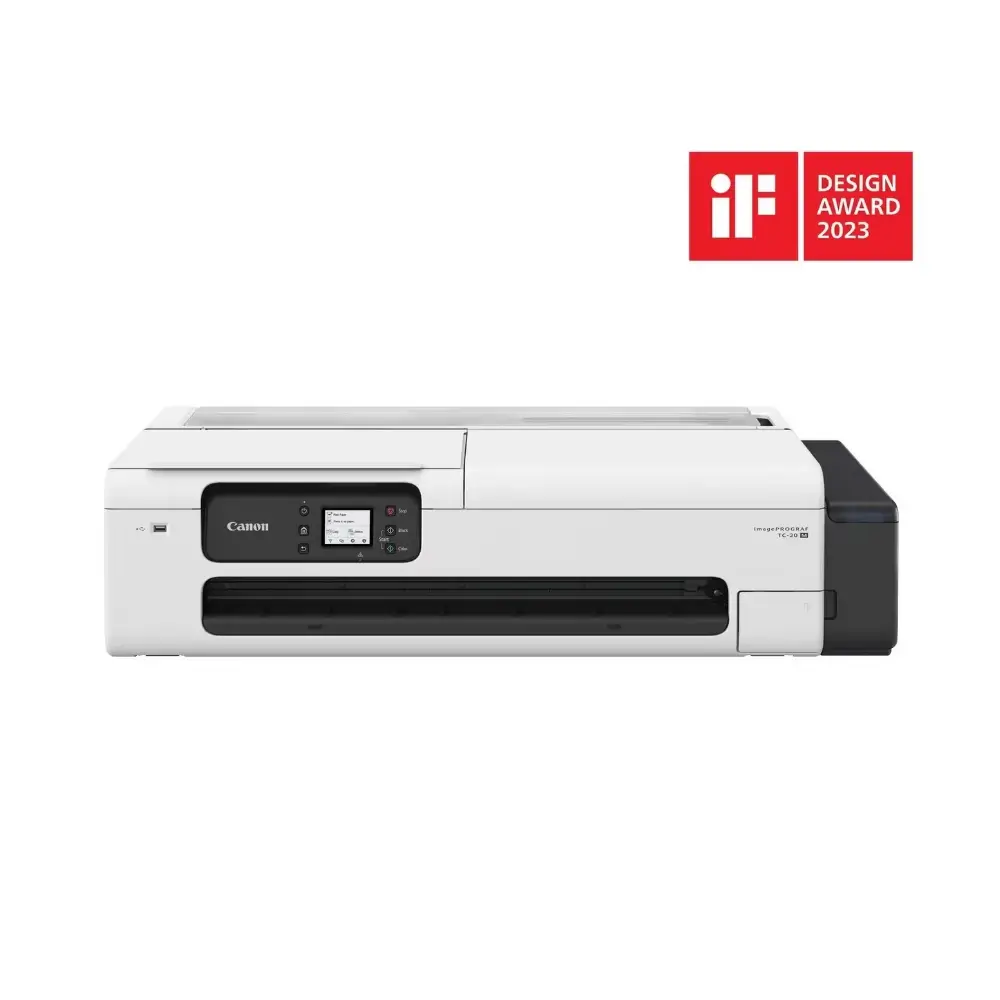

Canon imagePROGRAF TC-20M 24-inch large format desktop printer

Canon imagePROGRAF TC-20M 24-Inch Large Format Printer

By CanonIn stock

৳130,000

1

Good to know

Specifications

Brand / ModelCanon imagePROGRAF TC-20M
Type4-colour 24" large format printer with A4 flatbed scanner
Print TechnologyCanon pigment ink, 4 colours (BK, C, M, Y), integrated print head
Print Resolution2,400 x 1,200 dpi
Number of Nozzles4,352 total (BK 1,280; C, M, Y 1,024 each)
ScannerFlatbed CIS colour scanner, 1,200 x 2,400 dpi, max. A4/LTR (216 x 297 mm)
Ink CapacityBundled starter ink 280 ml (70 ml x 4); replacement tanks 70 ml each
Roll Paper WidthsA3, A2, A2+, A1, B2, B3, 17", 18", 24"
Cut Sheet Width210 mm to 297 mm (auto sheet feeder: 100 sheets A4, 50 sheets A3)
Media Thickness0.08 mm to 0.28 mm
Max. Printable LengthRoll paper 4 m; cut sheet 432 mm
Print Speed (A1, plain paper)CAD B&W 0:33; CAD colour 1:03; poster 1:10 (fast) / 2:08 (standard)
InterfacesUSB A (direct print), Hi-Speed USB B, Ethernet, Wi-Fi (802.11n/g/b)
Direct Print FormatsPDF (files generated by TC-20M and Canon IJ Scan Utility), JPEG (Exif 2.2/2.21/2.3)
Mobile and Cloud PrintApple AirPrint, Mopria, Chrome OS
Memory1 GB (no expansion slot); no hard drive
Power SupplyAC 100-240 V, 50-60 Hz
Power ConsumptionOperation 28 W or less; sleep 2.4 W or less; off 0.3 W or less
Noise LevelAbout 41.5 dB(A) in operation; 35 dB(A) or less in standby
Dimensions (W x D x H)968 x 525 x 245 mm (feeder closed); 968 x 545 x 395 mm (feeder open)
Weight33 kg (excluding ink, including print head)
Operating Environment15 to 30 °C, 10 to 80% RH (no condensation)
CertificationsCE, UKCA, CB, EPEAT Gold (registered in the U.S.)

Description

The Canon imagePROGRAF TC-20M is a compact 24-inch large format printer that prints, scans and copies in one desktop unit. It handles roll paper up to A1 width and cut sheets from its built-in auto sheet feeder, so one machine covers drawings, posters and everyday office documents.

If you are looking for a reliable Canon plotter for a small office, retail shop, school or design studio, this model saves space without giving up large-format output. It measures just 968 x 525 x 245 mm with the sheet feeder closed.

It uses 4-colour pigment ink and prints at up to 2,400 x 1,200 dpi. The A4 flatbed scanner lets you scan an original and print an enlarged copy without a PC.

Key Features

  • A4 flatbed scanner (1,200 x 2,400 dpi): Scan A4 documents and photos and print enlarged copies, so you can turn small originals into large prints.

  • Scan, copy, repeat image and enlarge printing: Produce a range of outputs, such as posters, from small physical prints without extra software.

  • USB direct print and scan: Print PDF or JPEG files from a USB drive without a computer. This suits shared spaces and quick jobs.

  • 4-colour pigment ink (BK, C, M, Y): Pigment ink gives sharp lines and text, which suits CAD drawings, maps, signage and documents.

  • Compact desktop design: At 968 x 525 x 245 mm with the feeder closed, it fits on a desk or stand where a traditional plotter would not.

  • Built-in auto sheet feeder: Switch between roll paper and cut sheets (A4 and A3) for continuous printing without swapping set-ups.

  • Shaftless roll holder: Roll paper is easy to load and needs less space around the printer.

  • Wi-Fi, Ethernet and USB connectivity: Connect over wireless LAN (IEEE 802.11n/g/b), Ethernet or Hi-Speed USB. It also supports Apple AirPrint, Mopria and Chrome OS printing.

  • Low power use and EPEAT Gold rating: Operation draws 28 W or less, and sleep mode 2.4 W or less. This helps offices meet sustainability goals.

Why Choose the Canon imagePROGRAF TC-20M 24-Inch Large Format Printer

Most large format machines are bulky and single-purpose. The TC-20M combines printing, scanning and copying in a desktop-sized body, so a small business does not need separate devices or outsourced print jobs.

It is also quick. Canon rates A1 CAD drawings on plain paper at about 33 seconds in black and white and about 1 minute 3 seconds in colour (standard mode). Operation is quiet at approximately 41.5 dB(A), so it can sit in an open office, classroom or shop.

For anyone searching for a dependable Canon plotter, the TC-20M offers a practical mix of size, flexibility and low running power. Geary BD supplies it with local delivery and support in Bangladesh.

Best Use Cases

  • Architects, engineers and contractors printing CAD drawings and technical plans

  • Retail shops and cafes printing posters, price displays and promotional signage

  • Schools and universities printing project posters, maps and teaching charts

  • Small offices printing documents, then scanning and copying with the same device

  • Print shops and studios that need compact A1-width output

Canon Imageprograf Tc 20m 24 Inch Large Format Printer

Compatibility

  • Windows (32-bit): Windows 7, 8.1, 10

  • Windows (64-bit): Windows 7, 8.1, 10, 11; Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019, 2022

  • Mac: macOS 10.14.6 to macOS 12.x

  • Mobile and other: Apple AirPrint, Mopria, Chrome OS

  • Optional accessories: Desktop Basket BU-06 and Printer Stand with Basket SD-24

  • Consumables: Ink Tank PFI-050 (70 ml), Print Head PF-08, Maintenance Cartridge MC-32

Package Includes

  • Canon imagePROGRAF TC-20M printer

  • 1 print head

  • Power cable

  • 1 set of starter ink tanks (BK, C, M, Y)

  • Installation guide

  • Safety and environment leaflets and other regulatory sheets

Warranty

7 days replacement warranty

Read the warranty policy

Reviews

Frequently asked questions

Is the Canon imagePROGRAF TC-20M a plotter?

It is a 24-inch large format printer that works as a compact Canon plotter. It prints CAD drawings, posters and documents on roll paper up to A1 width, and it can also scan and copy.

What is the maximum paper size and width it can print?

It accepts roll paper in A3, A2, A2+, A1, B2, B3, 17", 18" and 24" widths. Cut sheets from 210 mm to 297 mm wide can be fed through the auto sheet feeder.

Can it scan and copy documents?

Yes. It has an A4 flatbed scanner (1,200 x 2,400 dpi). You can scan, copy and make enlarged prints from small originals.

Does it support Wi-Fi and mobile printing?

Yes. It supports wireless LAN (IEEE 802.11n/g/b), Ethernet and USB. It also works with Apple AirPrint, Mopria and Chrome OS.
