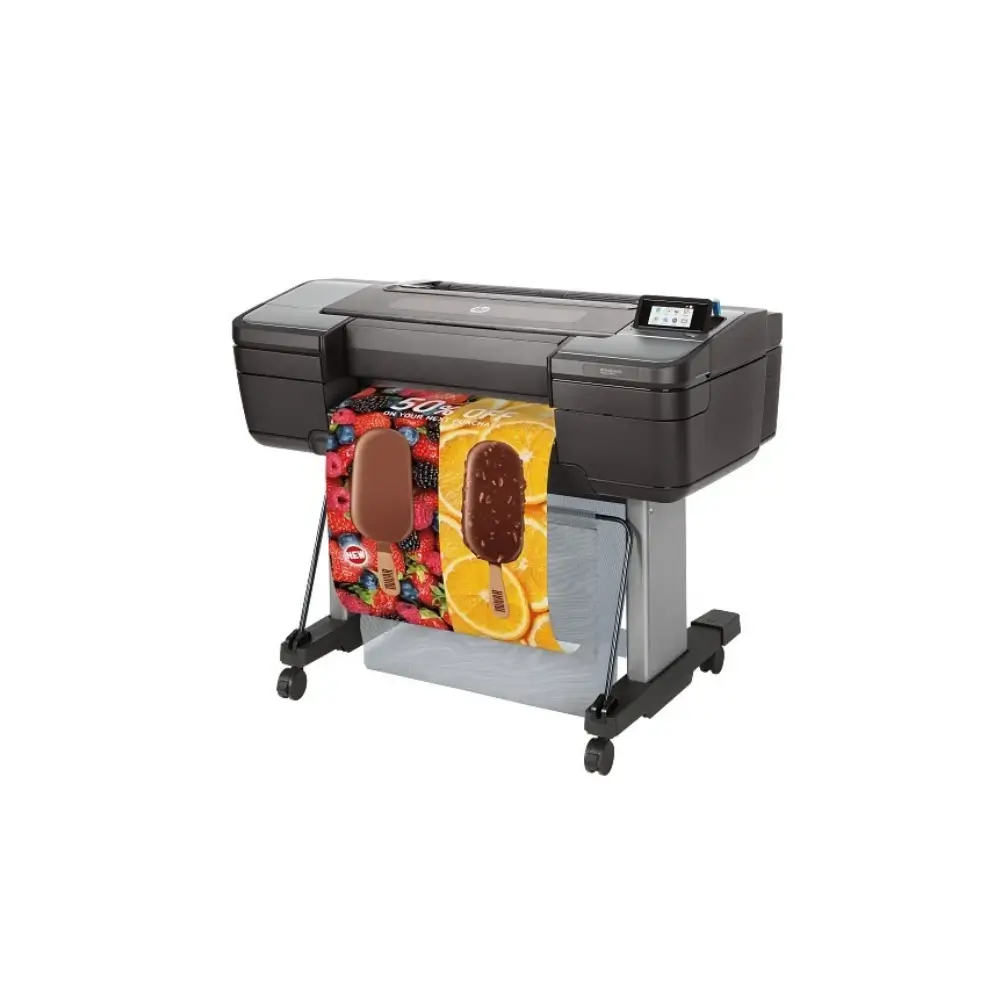

HP DesignJet Z6 24-inch PostScript large format printer front view

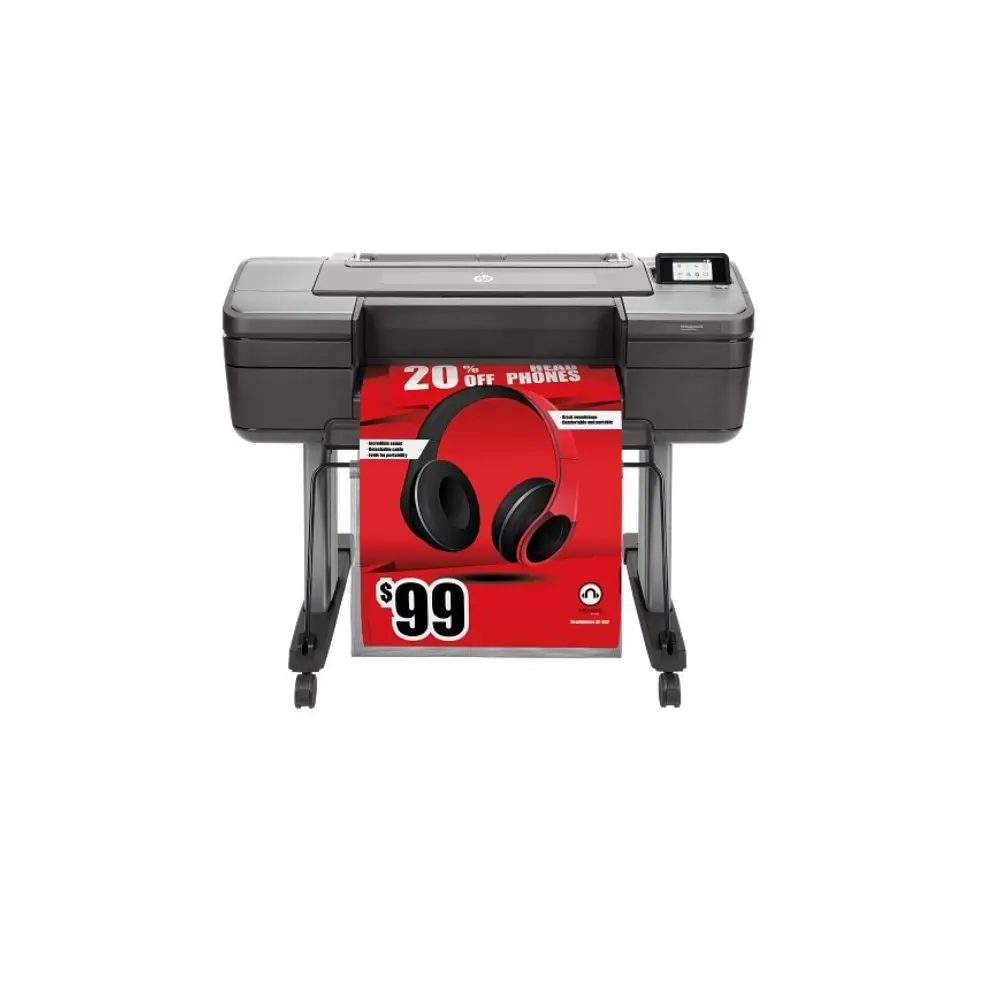

HP DesignJet Z6 24-Inch PostScript Large Format Printer

By HpIn stock

৳490,000

1

Good to know

Specifications

Model / part numberHP DesignJet Z6 24-in PostScript Printer, T8W15A
Printing methodHP Thermal Inkjet
Maximum color resolutionUp to 2400 x 1200 optimized dpi
Output speedFast: 66.9 m²/hr (plain media); Normal: 15.2 m²/hr (coated media); Best: 7.9 m²/hr (glossy media)
Printer width class610 mm (24-inch)
Ink drop size7/3 pl dual-drop (M, C, PK); 6 pl single-drop (Y, CR, MK)
Nozzles2,112 per color; 12,672 in total
Ink type and cartridgesPigment-based; 6 x HP 746 cartridges, 300 ml each (cyan, magenta, yellow, matte black, photo black, chromatic red)
Printheads3 universal printheads, valid for all colors
Maximum black optical density4 L* min / 2.5 D
Line accuracy±0.1%
Minimum line width0.02 mm theoretical; 0.08 mm guaranteed
Color stabilityUnder 1 dE2000 in under 5 minutes
Print repeatabilityAverage under 0.5 dE2000; 95% of colors under 1.4 dE2000
Standard roll widths279 to 610 mm
Custom media size210 x 279 to 610 x 1676 mm
Supported standard sizesA4, A3, A2, A1
Media weight80 to 500 g/m² recommended
Roll limitsMax external diameter 135 mm; 1 roll input; max roll weight 7.5 kg
Media handlingRoll feed, rear sheet feed, output bin, automatic horizontal cutter
Non-printable marginsCut sheet: 5 x 17 x 5 x 5 mm; roll: 5 x 5 x 5 x 5 mm (borderless on selected media)
Page languagesAdobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG, CALS G4, HP-GL/2, HP-RTL
Storage / memory500 GB self-encrypting storage; 128 GB (virtual) memory
ConnectionsGigabit Ethernet (1000Base-T); Hi-Speed USB 2.0 for direct USB flash drive printing
DriversRaster and PostScript drivers for Windows and macOS; PDF driver for Windows 8 and above
Size (W x D x H)1293 x 695 x 998 mm
Weight66 kg
Box size / weight1440 x 766 x 718 mm / 97 kg
Power useUnder 100 W (printing); under 32 W (ready); under 6.5 W (sleep); 0.1 W (off)
Power supply100-240 V (±10%), 50/60 Hz (±3 Hz), 2 A max
Noise (power)6.0 B(A) printing; 5.1 B(A) idle; under 3.4 B(A) sleep
Noise (pressure)42 dB(A) printing; 33 dB(A) idle; under 16 dB(A) sleep
Operating conditions5 to 40 °C; 20 to 80% RH
Storage temperature-25 to 55 °C
CertificationsENERGY STAR, ErP, WEEE, RoHS, REACH, EPEAT
Warranty1 Year Limited Warranty (Next Business Day On-Site)

Description

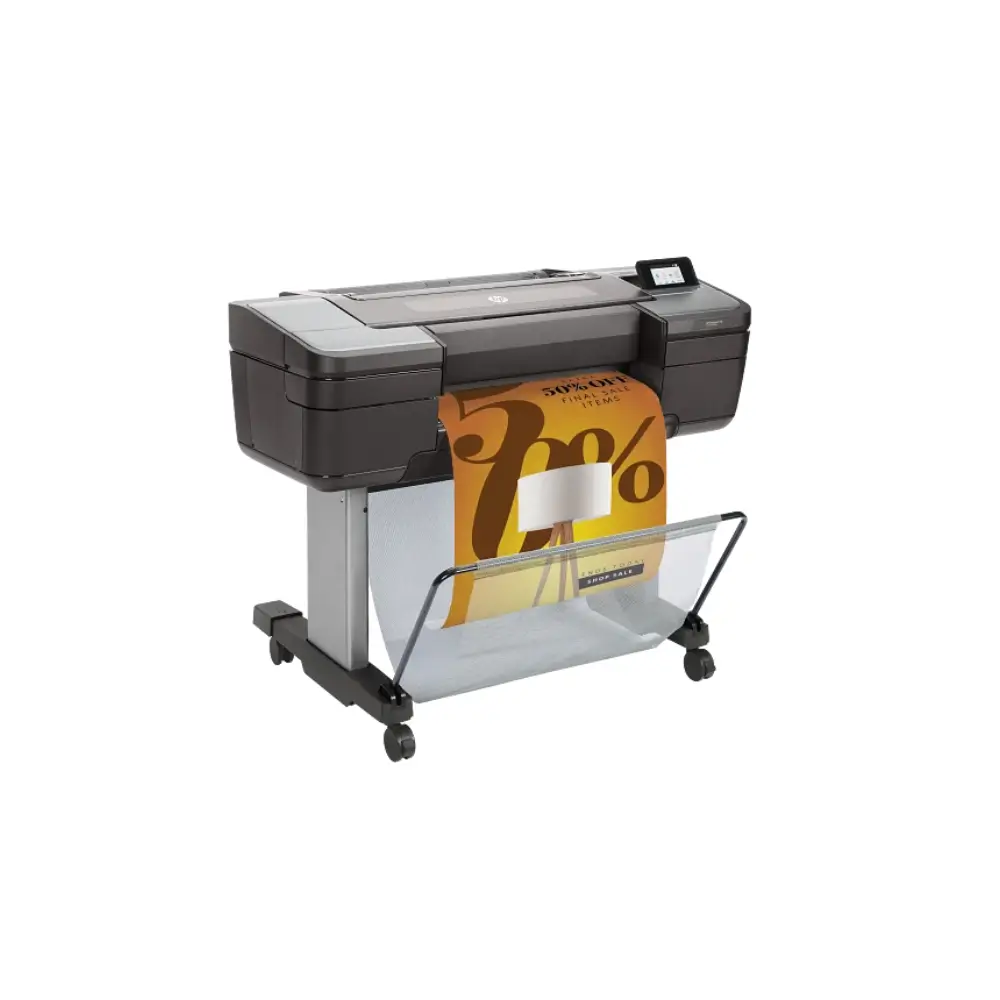

The HP DesignJet Z6 is a 24-inch large format printer for people who need sharp detail and high-contrast color on posters, displays, and technical prints. Its high-definition printheads and HP Pixel Control give you smooth gradients and clear fine lines, while the integrated vertical trimmer speeds up finishing.

If you are comparing an HP plotter for a studio, print shop, or office, the Z6 is built for demanding files and busy workflows. It prints at up to 2400 x 1200 optimized dpi and reaches 66.9 m²/hr in Fast mode on plain media. It also includes security features to help protect your data and network.

It suits posters, point-of-sale displays, orthophotos, and canvas or photo output. Geary BD offers the HP DesignJet Z6 in Bangladesh with manufacturer warranty coverage.

Key Features

  • High-definition HP printheads: Fine details and high-contrast color come through clearly, so small text and thin lines stay readable.

  • Dual-drop technology (no light inks): The 7/3 pl dual-drop design helps keep color accurate without extra light ink cartridges.

  • HP Pixel Control: Smooth gradients mean fewer visible bands in photos and large color areas.

  • HP Vivid Photo Inks (pigment-based): Prints resist water and fading, which suits display work you want to last.

  • Fast output: 66.9 m²/hr (Fast, plain media), 15.2 m²/hr (Normal, coated media), 7.9 m²/hr (Best, glossy media). You can choose speed or quality for each job.

  • Integrated vertical trimmer and automatic horizontal cutter: Finished prints need less manual trimming, which saves time on busy days.

  • Roll feed, rear sheet feed, and output bin: One printer handles rolls and cut sheets, and printed pages are collected neatly.

  • Built-in security: HP Secure Boot, role-based access control, HTTPS, IPsec/firewall, 802.1X, secure disk erase, and PIN printing protect your files and your network.

  • 500 GB self-encrypting storage and 128 GB (virtual) memory: Complex, large files are handled and stored with added protection.

  • Wide print language support: PostScript 3, PDF 1.7, TIFF, JPEG, CALS G4, HP-GL/2, and HP-RTL work with common design and print workflows.

  • Mobile and cloud printing: AirPrint, email printing, the HP Smart app, and direct USB flash drive printing let you print from almost anywhere.

Why Choose the HP DesignJet Z6 24-Inch PostScript Large Format Printer

Sharp, reliable results. The Z6 gives clear detail and consistent color. Its color stability is under 1 dE2000 in less than 5 minutes, and average print repeatability is under 0.5 dE2000. Repeat jobs look the same each time.

Less hands-on work. Cutting and trimming are built in, and three universal printheads work with every color. You spend less time on finishing and handling.

Flexible media. It supports rolls from 279 to 610 mm and custom sizes up to 610 x 1676 mm. Media weights run from 80 to 500 g/m², covering photographic, fine art, self-adhesive, banner, backlit, and coated materials.

Secure and network-ready. Gigabit Ethernet and strong security controls make it a sensible HP plotter for shared offices and print businesses.

Everyday value. The printer uses 300 ml HP 746 cartridges and ENERGY STAR certified power management (under 6.5 W in sleep). It is backed by a 1-year limited warranty with next business day on-site service.

Best Use Cases

  • Posters and point-of-sale displays

  • Orthophotos and technical drawings

  • Fine art and photo prints on canvas or photo paper

  • Print shops, design studios, and architecture or engineering offices

Technical Specifications

Compatibility

  • Operating systems: Windows and macOS (raster and PostScript drivers), Linux, Chrome OS; PDF driver for Windows 8 and above

  • Mobile: Apple AirPrint, HP Smart app for iOS and Android, HP Print Service Plugin for Android

  • Other printing options: Email printing, HP Click, direct USB flash drive printing, HP SmartStream

  • Management software: HP Web Jetadmin and HP JetAdvantage Security Manager (optional)

  • Recommended media: HP Universal Instant-dry Satin Photo Paper, HP Artist Matte Canvas, HP Heavyweight Coated Paper, HP Everyday Matte Polypropylene, HP Premium Matte Photo Paper

Warranty

7 days replacement warranty

Read the warranty policy

Reviews

Frequently asked questions

What size prints can the HP DesignJet Z6 produce?

It handles rolls from 279 to 610 mm wide (24-inch), plus standard A4, A3, A2, and A1 sizes. Custom sizes go up to 610 x 1676 mm.

How fast is the HP DesignJet Z6?

In Fast mode it reaches 66.9 m²/hr on plain media. Normal mode on coated media is 15.2 m²/hr, and Best mode on glossy media is 7.9 m²/hr.

What print resolution does this large format printer offer?

Color prints reach up to 2400 x 1200 optimized dpi, with a guaranteed minimum line width of 0.08 mm.

Does it support PostScript and PDF files?

Yes. It supports Adobe PostScript 3 and Adobe PDF 1.7, along with TIFF, JPEG, CALS G4, HP-GL/2, and HP-RTL.
