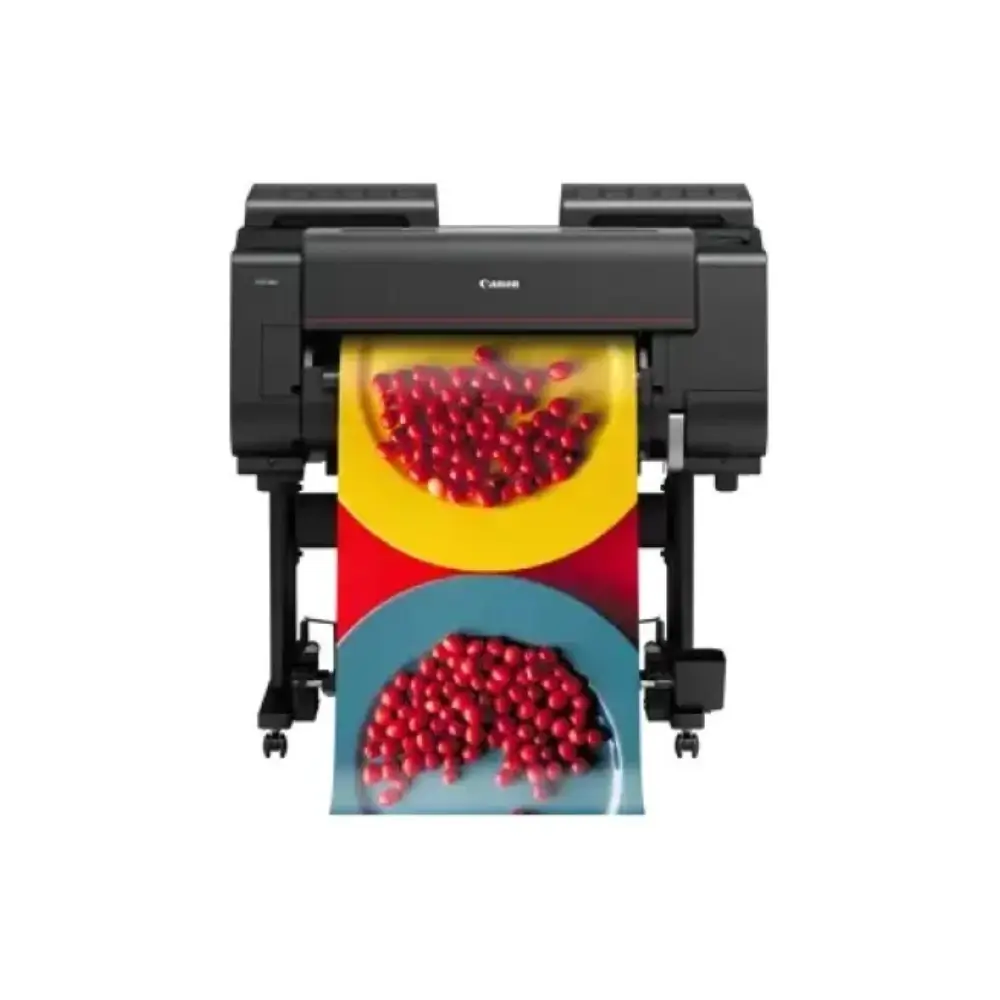

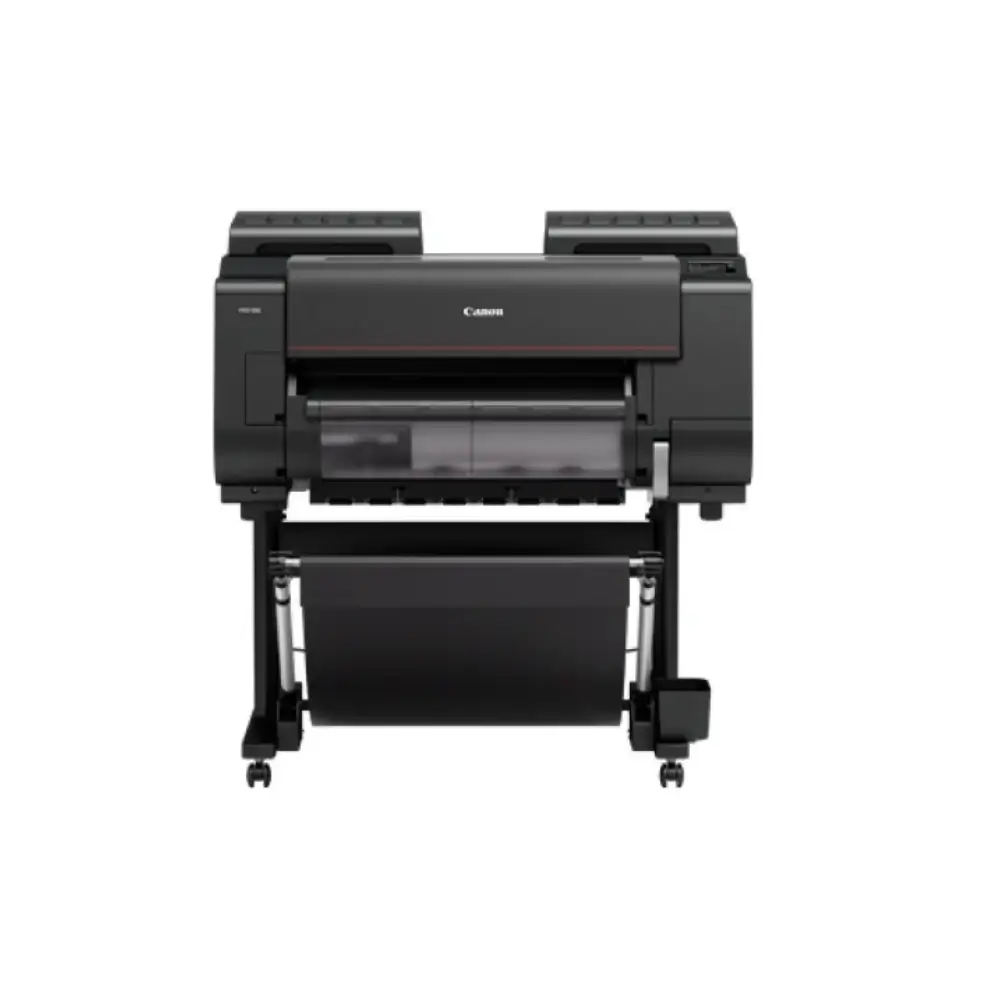

Canon imagePROGRAF PRO-521 24-Inch Large Format Printer
BDT 470,000
Quantity
The Canon imagePROGRAF PRO-521 is a 24-inch large format printer built for printing big. It handles paper up to A0, so CAD drawings, blueprints and posters come out at full size without outsourcing.
It is a print-only machine with a 500GB encrypted hard disk and 3GB of memory. It connects over USB, LAN or Wi-Fi, so one printer can serve a whole office. If you are looking for a reliable Canon printer for architecture, engineering or design work in Bangladesh, the PRO-521 is a practical choice.
Key Features
24-inch large format printing, up to A0: prints technical drawings and posters at full size, so you don't need a print shop for every job.
2,400 x 1,200 dpi print resolution: keeps fine lines and small text clear in CAD plans and detailed graphics.
Fast A1 output: prints an A1 plain paper page in about 58 seconds at Level 5 draft quality, with higher quality modes taking longer. Speeds for each paper type are listed in the table below.
3GB memory and 500GB encrypted HDD: handles large files and queued jobs, and the encryption helps protect sensitive client drawings.
USB, LAN and Wi-Fi connectivity: lets you connect directly or share the printer across a network, with no extra adapters.
Ink-based color printing: one color printer covers both line drawings and color graphics.
Low standby power use: draws 2.0W or less in sleep mode and 0.3W or less when off, which helps keep running costs down.
Why Choose This Canon imagePROGRAF PRO-521 24-Inch Large Format Printer
If you regularly send large drawings to an outside print shop, this Canon large format printer brings that work in-house. You save the trips and the waiting, and you can reprint a revised drawing whenever you need it.
The wide paper support, fast draft speeds and network connectivity suit busy workplaces. Teams can print from their own computers over LAN or Wi-Fi, while the encrypted 500GB drive keeps stored jobs protected. Choosing the PRO-521 from Geary BD also means the 1-year limited warranty and local after-sales support.
Best Use Cases
Architecture and engineering firms printing plans and blueprints
CAD and technical drafting studios
Interior design and construction offices
Poster and presentation printing for design teams and academic departments
Technical Specifications
Specification | Details |
|---|---|
Model | PRO-521 |
Function | Print only |
Printer Type | Single-function large format printer |
Print Technology | Ink |
Output | Color |
Print Resolution | 2,400 x 1,200 dpi |
Maximum Paper Size | A0 |
Supported Media | Plain paper, CAD tracing paper, coated paper, CAD translucent matte film |
Print Speed, Plain Paper (A1) | 58 sec (Level 5), 1 min 38 sec (Standard), 3 min 11 sec (High) |
Print Speed, Heavyweight Coated Paper HG (A1) | 1 min 38 sec (Standard), 3 min 11 sec (High), 4 min 44 sec (Highest) |
Print Speed, Glossy Photo Paper HG 170 (A1) | 3 min 11 sec (Standard), 5 min 02 sec (High), 8 min 21 sec (Highest) |
Duplex Printing | Manual |
Auto Document Feeder | No |
Memory | 3GB |
Hard Disk | 500GB encrypted HDD |
Connectivity | USB, LAN, Wi-Fi |
Power Consumption | 93.0W or less (printing), 2.0W or less (sleep), 0.3W or less (power off) |
Color | Black |
Size, Main Unit with Stand and Basket | 1,110 x 984 x 1,168 mm (basket open); 1,110 x 766 x 1,168 mm (basket closed) |
Weight, Main Unit with Stand and Basket | 102 kg |
Weight, with Roll Unit Added | 119 kg |
Compatible Ink | Canon PFI-8120 (130 ml), Canon PFI-8320 (300 ml) |
Warranty | 1 year limited (adapter not covered) |
Frequently asked questions
What is the maximum paper size the Canon PRO-521 can print?
It prints up to A0. The printer is 24 inches wide, which suits A1 and larger technical drawings.
Does the Canon PRO-521 support Wi-Fi?
Yes. It has built-in Wi-Fi, along with USB and LAN, so you can connect directly or share it across a network.
How fast does it print an A1 page?
On plain paper, an A1 page takes about 58 seconds at Level 5, 1 minute 38 seconds at Standard and 3 minutes 11 seconds at High quality. Coated and glossy papers take longer.
Which ink does the imagePROGRAF PRO-521 use?
It uses Canon PFI-8120 (130 ml) and PFI-8320 (300 ml) ink. Check that the model number matches your existing ink before buying a replacement.
