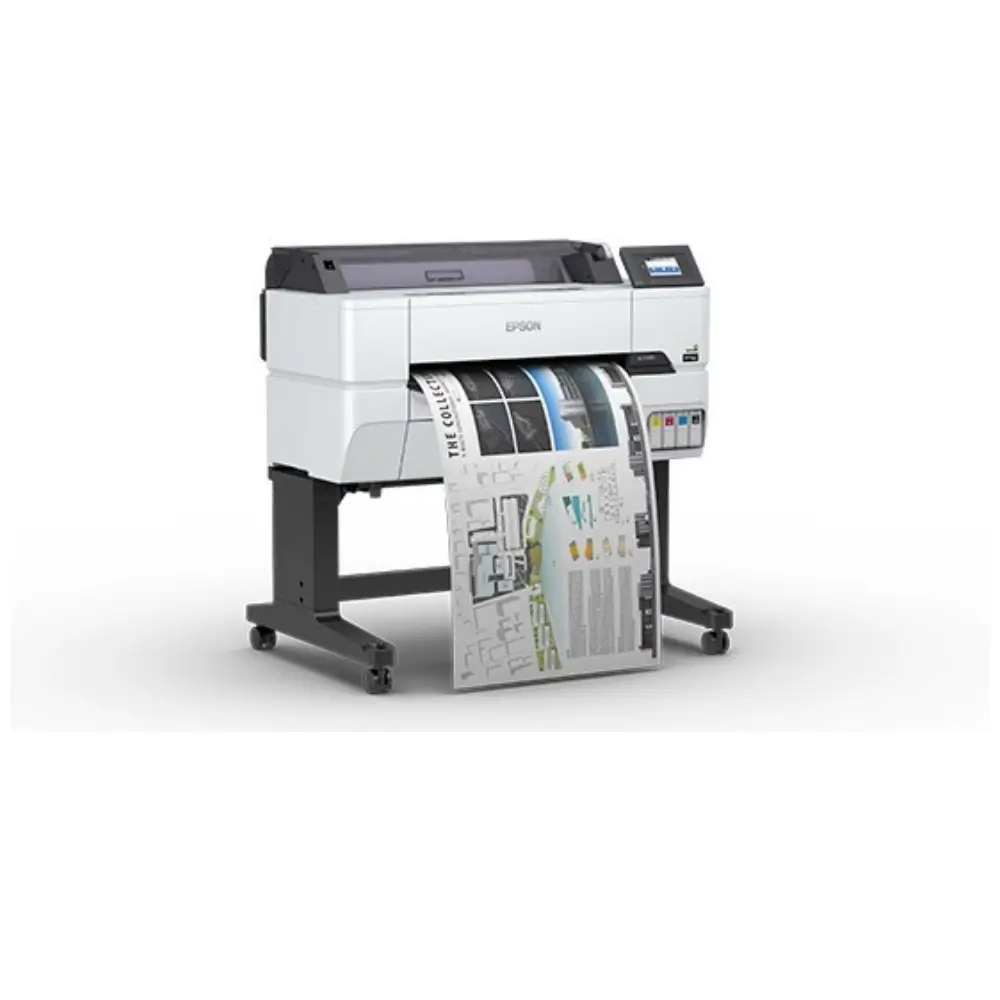

Epson SC-T3435 4.3-inch touch panel for PC-less printer setup and control

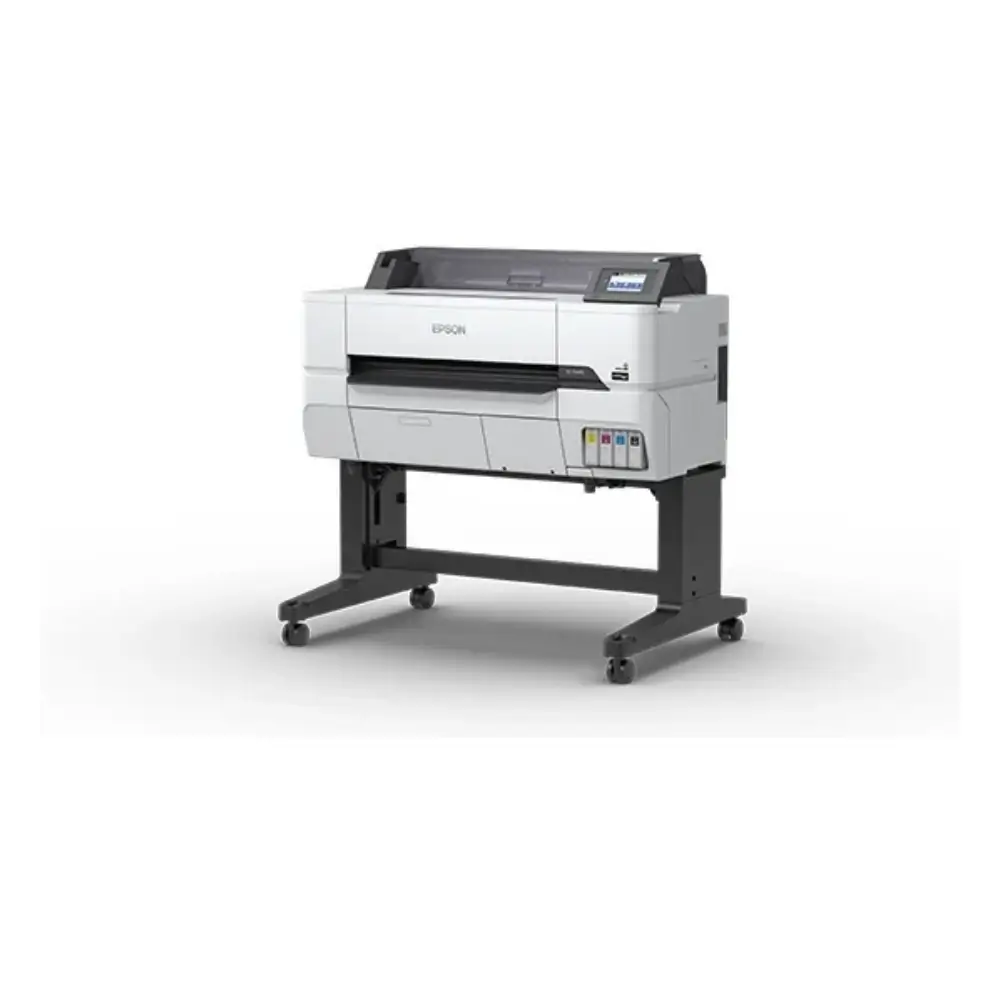

Epson SureColor SC-T3435 24-Inch Technical Printer

By EPSONIn stock

৳320,000

1

Good to know

Specifications

ModelEpson SureColor SC-T3435
Type24-inch (60.96 cm) technical printer
Print HeadPrecisionCore TFP Printhead
Nozzle Configuration3,200 nozzles (800 nozzles x 4 channels x 1 head)
Maximum Print Resolution2400 x 1200 dpi
Maximum Print Width60.96 cm (24 inch)
Minimum Ink Droplet Size4.0 pl
Print SpeedCAD (A1): 25 sec; POP (A1): 24 sec
Line Accuracy±0.1% or ±0.26 mm
Minimum Line Width0.07 mm
InkUltraChrome XD2 pigment ink (CMYK), 700 mL cartridge
Wireless ConnectivityWi-Fi, Wi-Fi Direct, Apple AirPrint
Control Panel10.92 cm (4.3 inch) touch panel
Memory1 GB
Dimensions (with stand)1,080 x 750 x 1,060 mm (W x D x H)
Weight (with stand)64 kg
Power SupplyAC 100-240 V, 50/60 Hz, 2.8 A
Operating Temperature10°C to 35°C
Storage Temperature-20°C to 40°C
Operating Humidity20% to 80% (no condensation)
Storage Humidity5% to 85% (no condensation)

Description

The Epson SureColor SC-T3435 is a 24-inch technical printer built for fast, accurate line drawings. It prints an A1 CAD drawing in about 25 seconds, so architects, engineers and print shops spend less time waiting on large sheets.

It pairs PrecisionCore printhead technology with UltraChrome XD2 pigment ink for sharp lines and consistent quality on plain paper and tracing paper. A compact body and a 4.3-inch touch panel let it fit into a busy design office or a small workspace.

If you are comparing an Epson large format printer for CAD, GIS or construction plans, the SC-T3435 offers Wi-Fi, a 700 mL ink cartridge option and cloud monitoring in one machine.

Key Features

  • 25-second A1 CAD printing: Prints A1 drawings in 25 seconds in CAD mode (24 seconds in POP mode). You get big sheets out quickly, even on tight deadlines.

  • PrecisionCore TFP printhead: Uses 3,200 nozzles and a maximum resolution of 2400 x 1200 dpi. This gives accurate, crisp lines for CAD, GIS and technical drawings.

  • Line accuracy of ±0.1% or ±0.26 mm: Keeps dimensions true on printed plans, which matters when drawings are used for construction or fabrication.

  • UltraChrome XD2 pigment ink: The all-pigment CMYK ink gives sharp lines with less bleed-through and is water-resistant. Prints hold up better than dye-ink output in harsh conditions.

  • 700 mL ink cartridge: The larger cartridge supports higher print volume, so you change cartridges less often and have less downtime.

  • Nozzle Verification Technology: Monitors nozzle health and adjusts quality automatically, even during printing. This helps avoid interruptions and wasted media.

  • Wi-Fi, Wi-Fi Direct and Apple AirPrint: Print from smartphones, tablets and laptops without a router, and print directly from Apple devices without extra drivers.

  • 4.3-inch touch panel: Set up and operate the printer without a PC. It simplifies everyday tasks and makes training new staff easier.

  • Compact, ergonomic design: At 1,080 x 750 x 1,060 mm with the stand, it suits tight spaces and users of different heights. It also holds finished prints until you collect them, so they don't drop to the floor.

  • Scan-and-enlarge support: Works with compatible Epson business inkjet multifunction printers or business scanners to enlarge documents at the touch of a button, without a computer.

  • Epson Cloud Solution PORT: Shows printer status, sends troubleshooting alerts and tracks usage and print job cost from your PC or smart device

Why Choose the Epson SureColor SC-T3435 24-Inch Technical Printer

  • Speed that saves hours: Fast A1 output keeps design reviews, site submissions and client deliveries on schedule.

  • Reliable day-to-day use: The PrecisionCore printhead, nozzle checks and large ink capacity are designed for steady, uninterrupted printing.

  • Fits real workspaces: The compact footprint, touch panel and wireless printing suit small offices as well as busy print rooms.

  • Durable results: Water-resistant pigment ink helps plans survive handling at the site or in the studio.

  • Easy monitoring: Cloud-based status alerts and cost tracking help you manage printing across a team.

For buyers in Bangladesh who want an Epson large format printer from a trusted local seller, Geary BD offers the SC-T3435 with fast delivery and warranty support.

Best Use Cases

  • Architects and interior designers printing floor plans and elevations

  • Civil, mechanical and electrical engineers printing CAD drawings

  • GIS and mapping work

  • Construction firms and site offices

  • Print shops and copy centres offering A1 and A2 technical prints

  • Schools and universities with design or engineering departments

Technical Specifications

Compatibility

  • Windows: Windows XP SP3 or later, Vista, 7, 8, 8.1 and 10

  • Windows Server: 2003, 2008, 2012, 2016 and 2019

  • Mac: Mac OS X 10.6.8 or later

  • Mobile: Apple devices through AirPrint, plus smart devices over Wi-Fi and Wi-Fi Direct

  • Scanning: Compatible Epson business inkjet multifunction printers or business scanners for the enlarge-and-print function

Package Includes

  • Printer

  • Printer Stand

  • Initial Ink Cartridge

  • AC Power Cable

  • Setup Guide

  • Software CD-ROM

  • Maintenance Box

Warranty

7 days replacement warranty

Read the warranty policy

Reviews

Frequently asked questions

What is the Epson SureColor SC-T3435 used for?

It is a 24-inch technical printer for CAD drawings, architectural plans, engineering layouts and GIS maps.

How fast does the SC-T3435 print an A1 drawing?

It prints an A1 drawing in about 25 seconds in CAD mode and 24 seconds in POP mode.

Can I print from my phone or without a router?

Yes. It supports Wi-Fi, Wi-Fi Direct and Apple AirPrint, so devices can connect directly without a router or extra drivers.

What ink does the Epson SC-T3435 use?

It uses UltraChrome XD2 pigment ink in CMYK, available in a 700 mL cartridge. The ink is water-resistant and gives sharp lines.
