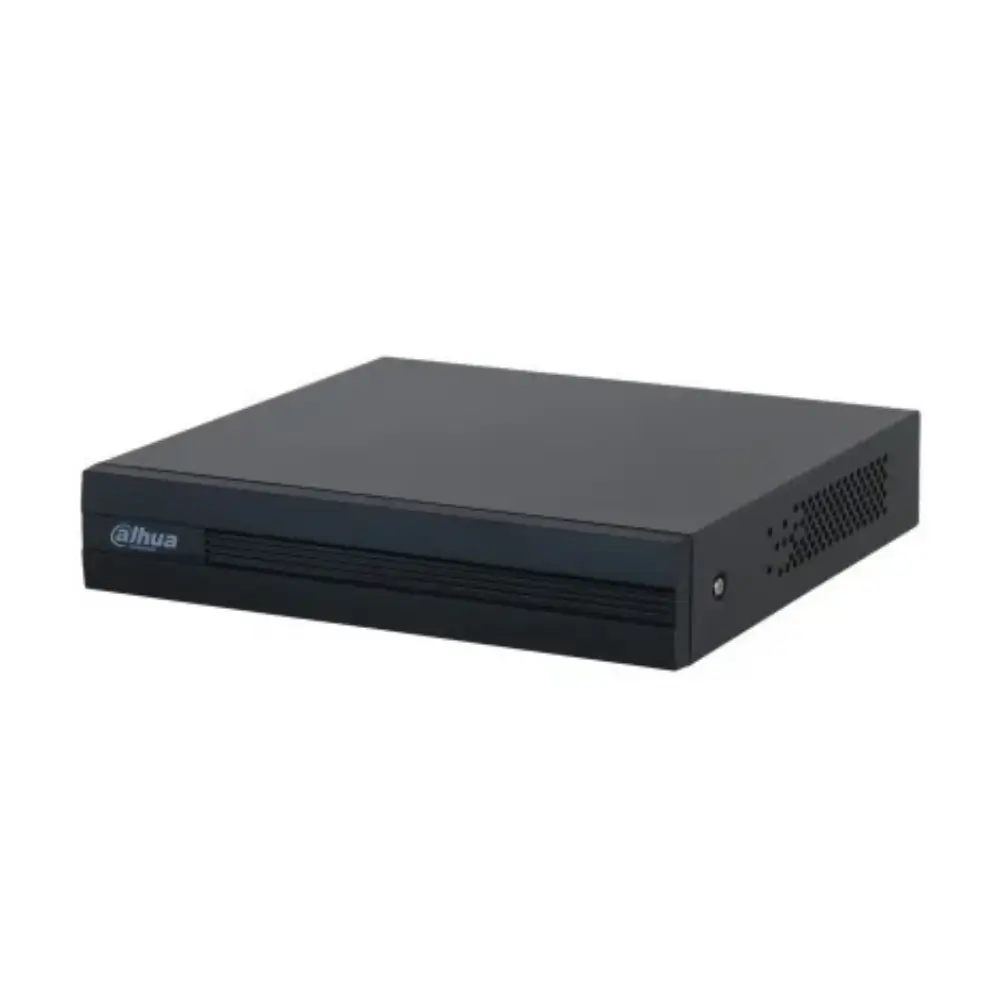

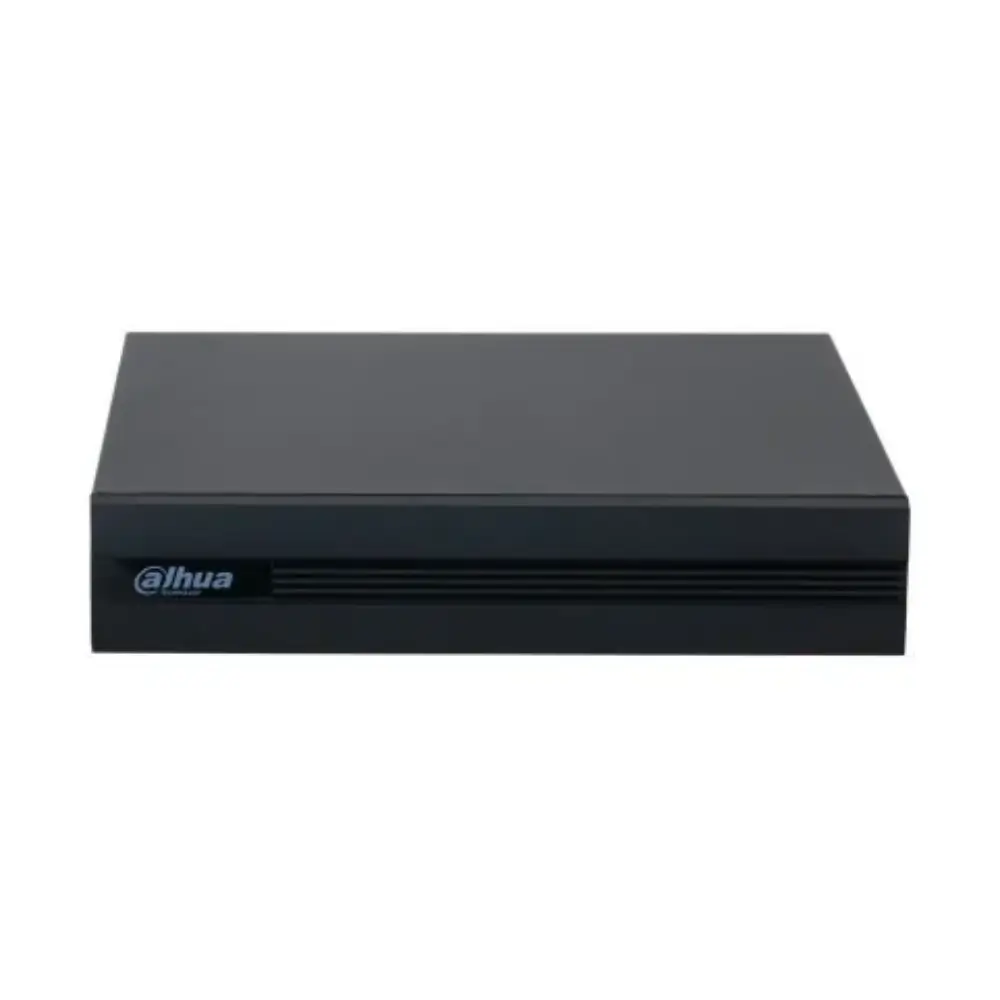

Dahua XVR1B04-I/T 4 Channel WizSense XVR Recorder

The Dahua XVR1B04-I/T is a compact 4 channel XVR for small home and shop surveillance systems. It records from HDCVI, AHD, TVI and CVBS cameras through its four BNC ports. You can also add up to five IP camera channels, so an older analog setup can grow without replacing the recorder.

Smart H.265+ and H.265 compression help you make better use of hard drive space. For anyone searching for a dependable Dahua DVR, this model covers wide camera compatibility, two-way talk over coaxial cable and mobile viewing in a slim 1U body.

It is built for everyday use at a front door, a shop counter or a small office. You can watch live on an HDMI or VGA monitor, play back events, and check your cameras from iOS or Android.

Key Features

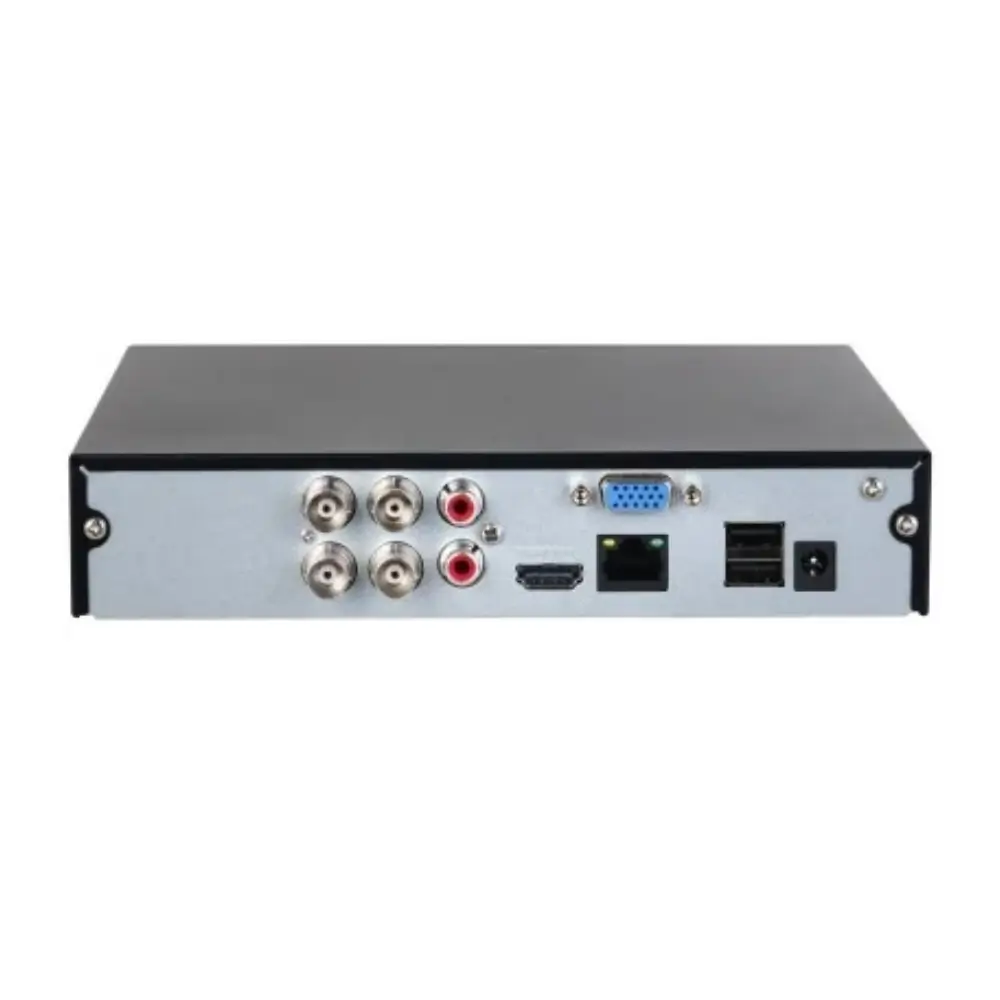

• 4 BNC inputs with auto-detect (HDCVI, AHD, TVI, CVBS): The recorder identifies the camera type on its own, so you can reuse existing analog cameras without replacing them.

• Up to 5 IP camera channels: You can mix IP cameras into the system and expand it later without buying a second recorder.

• 4-channel two-way talk over coaxial cable: Audio travels over the same coaxial cable, so you can speak through compatible cameras without running extra wiring.

• Smart H.265+ and H.265 dual-stream compression: Efficient encoding reduces storage use, so recordings can be kept for longer on the same drive.

• 1 SATA bay, up to 6 TB: A single large drive stores weeks of footage. The usable limit varies with ambient temperature.

• HDMI and VGA output: You can connect modern or older monitors without an adapter.

• iOS and Android viewing with P2P: Check live video and review events from your phone without complicated network setup.

• ONVIF (Profiles T, S, G, M) and third-party camera support: Cameras from brands such as Panasonic, Sony, Hanwha, Axis and Arecont can be connected, which keeps your options open.

• Multiple playback and backup options: Instant, event, tag and smart playback help you find incidents quickly. Backup to a USB device or over the network.

• Low power consumption (under 7 W without HDD): The recorder is inexpensive to run around the clock.

Why Choose the Dahua XVR1B04-I/T 4 Channel XVR

If you already have analog cameras, this recorder lets you keep them while moving to modern compression and mobile access. Four auto-detecting BNC ports and five IP channels let you mix camera types in one box. Two-way talk over coax is useful at a gate, reception desk or shop counter.

The slim 1U body suits a shelf or small rack, and it draws under 7 W without a drive. The 6 TB drive limit and Smart H.265+ compression give you plenty of recording capacity for a small site. As a Dahua DVR/XVR, it is also easy to find installers and accessories for it in Bangladesh.

Best Use Cases

• Homes and apartments

• Small shops and retail counters

• Small offices

• Upgrading an existing analog CCTV system

Technical Specifications
