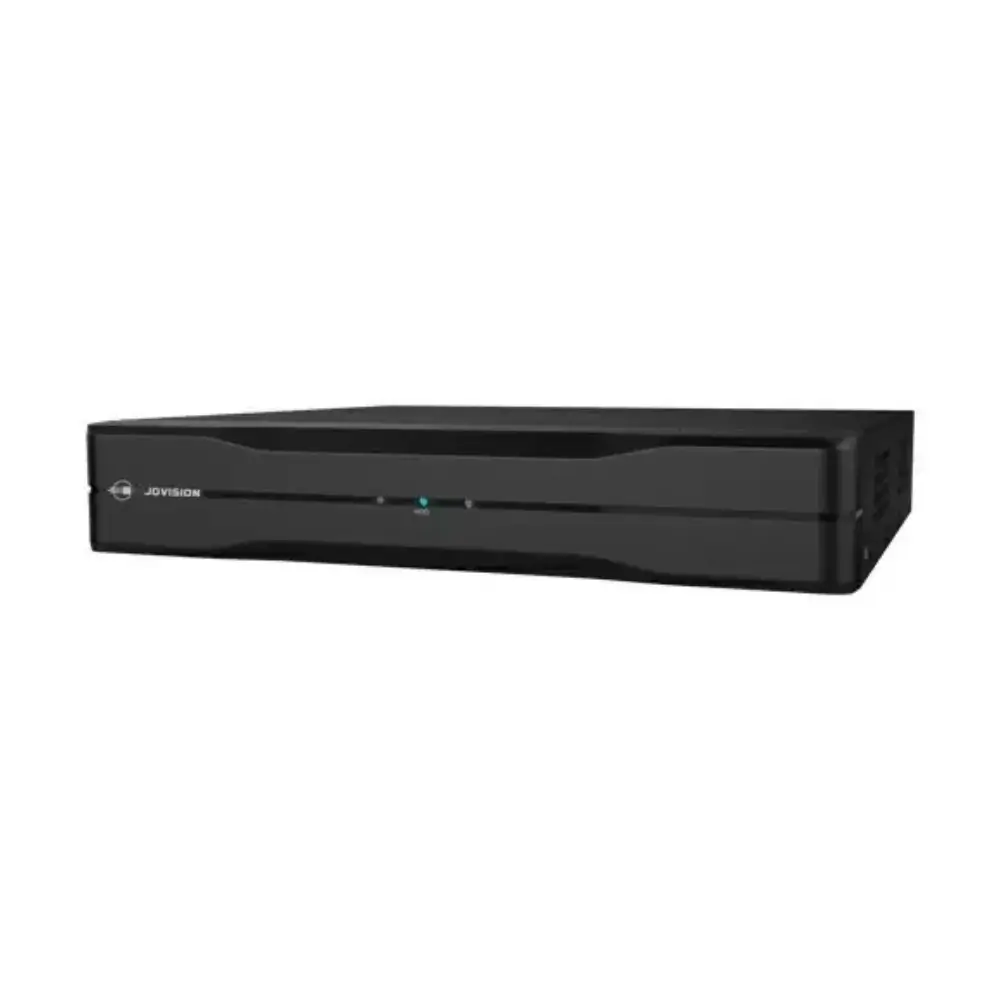

Jovision JVS-XD2604-FC10V 4 Channel 5-in-1 XVR Recorder
BDT 5,100
Quantity
The Jovision JVS-XD2604-FC10V is a 4 channel XVR that records from TVI, AHD, CVBS, CVI and IP cameras on one device. You can keep your existing analog cameras and add network cameras later without replacing the recorder.
It uses H.265 compression to save storage space and supports up to 8TB on a single SATA drive. You can view live footage on an iPhone or Android phone, and connect a monitor through HDMI or VGA.
Looking for a reliable Jovision XVR for a home, shop or small office? This recorder is a practical choice for everyday CCTV setups in Bangladesh.
Key Features
5-in-1 multi-mode input (TVI / AHD / CVBS / CVI / IP): You can mix camera types, so you can upgrade your CCTV system step by step without buying a new recorder.
HD analog video encoding: It records clear HD footage from analog cameras, so you can reuse your existing cabling.
HD analog + HD network input, or pure network input: You can run analog cameras, IP cameras or both together. The recorder handles 4 analog channels plus up to 12 IP channels.
H.265 compression: It makes better use of storage, so you can keep recordings longer on the same hard drive.
Simultaneous VGA and HDMI output: You can connect two displays at once, or choose whichever input your monitor has.
Coaxial audio support: Audio travels over the same coaxial cable as the video, so you can record sound from compatible cameras without extra wiring.
Mobile phone monitoring (iPhone and Android): You can check live views from your phone when you are away.
Email alarm and alarm snapshot: The recorder can send email alerts and capture snapshots when motion is detected.
Why Choose This Jovision 4 Channel XVR
This Jovision DVR-style recorder suits buyers who want to move from analog CCTV toward IP cameras gradually. The 5-in-1 input protects your existing camera investment, and the 12 extra IP channels leave room to grow.
Everyday use is simple. It is mouse-controlled, offers digital zoom, and has several playback and search options. The 8TB storage ceiling gives you plenty of room for long recording periods.
Best Use Cases
Small shops and retail counters
Homes and apartments
Small offices
Upgrading an existing analog CCTV system to HD or IP
Technical Specifications
Specification | Details |
|---|---|
Model | JVS-XD2604-FC10V |
Compression | H.265 |
Operating System | Embedded Linux |
Video Input | 4CH BNC + 12CH IPC |
Preview Ability | 4x 5MN@20fps (4-in-1), 4x 4MN@20fps (4-in-1), 4x 1080N@25fps (4-in-1) |
Coding Ability | 4x 5MN@12fps (4-in-1), 4x 4MN@12fps (4-in-1), 4x 1080N@15fps (4-in-1) |
Decoding Ability | 4x 5MN@12fps (4-in-1), 4x 4MN@12fps (4-in-1), 4x 1080N@15fps (4-in-1) |
Video Output | 1CH VGA, 1CH HDMI |
Channel Mode | Any channel mode combination (5MN analog + 5M IP) |
Audio In / Out | 1/1, RCA 4CH coaxial audio input + 12 channels network audio |
Video Standard | PAL / NTSC |
Storage Interface | 1x SATA |
Maximum Capacity | Up to 8TB |
Backup Mode | USB |
Video Playback | Auto / Timing / Motion detection |
Sync Playback | 4CH |
Search Mode | Point-in-time, calendar, event, channel |
Ethernet | 10/100 Mbps, 1x RJ45 |
Network Functions | TCP/IP, DHCP, DDNS, NTP, SMTP |
Interoperability | ONVIF |
Smartphone Support | iPhone, Android |
USB Interface | 2x USB 2.0 |
PTZ Interface | Not supported |
Controlling Device | Mouse |
Alarm Input / Output | Not supported |
Multi-Screen Display | 1, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16 |
Alarm Method | Email alarm |
Digital Zoom | Supported |
Two-Way Talk | Not supported |
Alarm Snapshot | Supported |
Intelligent Analysis | Motion detection |
Power Supply | DC 12V / 2A |
Power Consumption | ≤ 15 W |
Working Temperature | -10°C to 55°C |
Working Humidity | 10% to 90% |
Dimensions | 250 x 223 x 42 mm |
Weight | 800 g |
Compatibility
Supports TVI, AHD, CVBS, CVI and IP cameras.
Works with ONVIF-standard IP cameras.
Mobile viewing is supported on iPhone and Android.
Frequently asked questions
What types of cameras work with the Jovision JVS-XD2604-FC10V?
It supports TVI, AHD, CVBS, CVI and IP cameras, so you can mix camera types on one XVR.
How many cameras can this 4 channel XVR connect?
It has 4 BNC analog channels plus 12 IP channels.
How much storage does this Jovision XVR support?
It has one SATA interface and supports a hard drive of up to 8TB.
Can I view the cameras on my phone?
Yes. It supports mobile monitoring on iPhone and Android.
