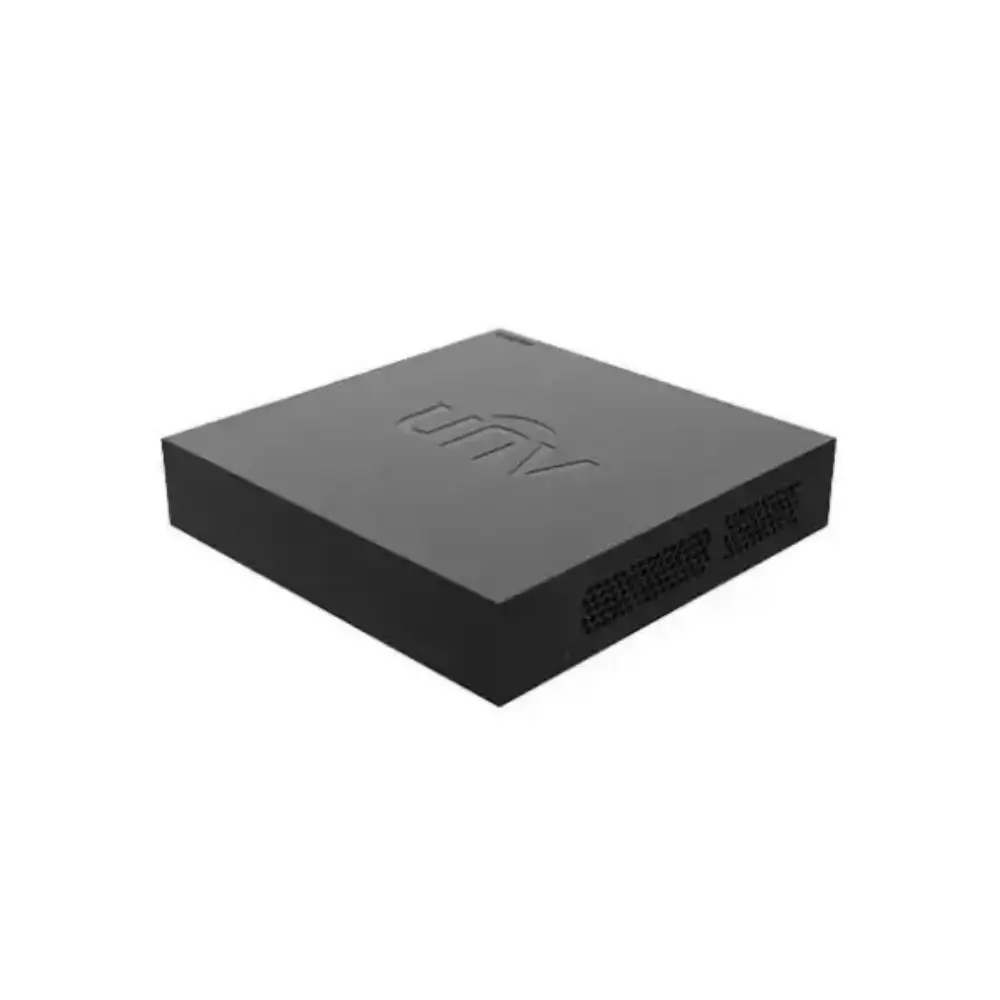

Uniview XVR301-08F 8 Channel XVR with 1 SATA Support

The Uniview XVR301-08F is an 8 channel XVR built to record and manage up to eight analog CCTV cameras from one compact unit. It gives small shops, offices and homes a reliable way to monitor and store footage without a complicated setup.

If you are looking for a dependable Uniview XVR for everyday surveillance, this model covers the essentials. It has HDMI and VGA output for flexible monitor connections, one SATA bay that takes up to 6TB, and USB backup for saving important clips.

It also accepts two IP camera channels, so you can add a network camera to your analog setup. That makes it easy to start small and expand later.

Key Features

• 8 channel XVR recording: Records up to 8 analog cameras at once. One recorder covers a shop floor, entrance, storeroom and parking area.

• 1080P Lite and 720P recording: The main stream records at 1080P Lite or 720P at 15fps, with D1 sub streams. This keeps footage clear while saving storage space.

• HDMI and VGA output: Connect to a modern HDMI display or an older VGA monitor. You don’t need to replace equipment you already own.

• 1 SATA HDD support up to 6TB: One internal hard drive bay with up to 6TB capacity. This gives you long recording history for daily monitoring.

• IP camera input (2 channels, up to 6MP each): You can add IP cameras alongside analog ones. This makes later upgrades easier.

• 64Mbps outgoing bandwidth: Supports remote access over the network through the RJ45 port. You can check your cameras away from the premises.

• 2x USB 2.0 ports: Use them for a mouse or to back up footage to a USB drive. Exporting evidence takes a few steps.

• Audio recording at 8KHz, 16-bit: Captures sound with video for fuller records of events.

• Low power use (≤10W without HDD): Runs on a DC12V/2A supply and keeps electricity costs low for 24/7 operation.

• Compact size (190 × 202 × 42mm, under 0.6kg): Fits on a shelf, desk or small rack without taking space.

Why Choose This Uniview XVR301-08F 8 Channel XVR

Uniview is a recognized CCTV brand, and the XVR301-08F is a practical choice for buyers who want a straightforward 8 channel DVR-style recorder. It supports your existing analog cameras, so you don’t need to rewire your whole system.

The dual HDMI and VGA output, USB backup and network connection cover daily needs without extra accessories. The 6TB HDD support means you can keep footage for longer before it is overwritten. The 1-year manufacturer warranty adds peace of mind, and buying from Geary BD means local support in Bangladesh. If you are comparing a Uniview DVR with other brands, this unit offers a good balance of features and size at a sensible price.

Best Use Cases

• Small shops and retail counters

• Offices and workshops

• Homes and apartments

• Warehouses and storerooms

• Pharmacies, salons and small restaurants

Technical Specifications
