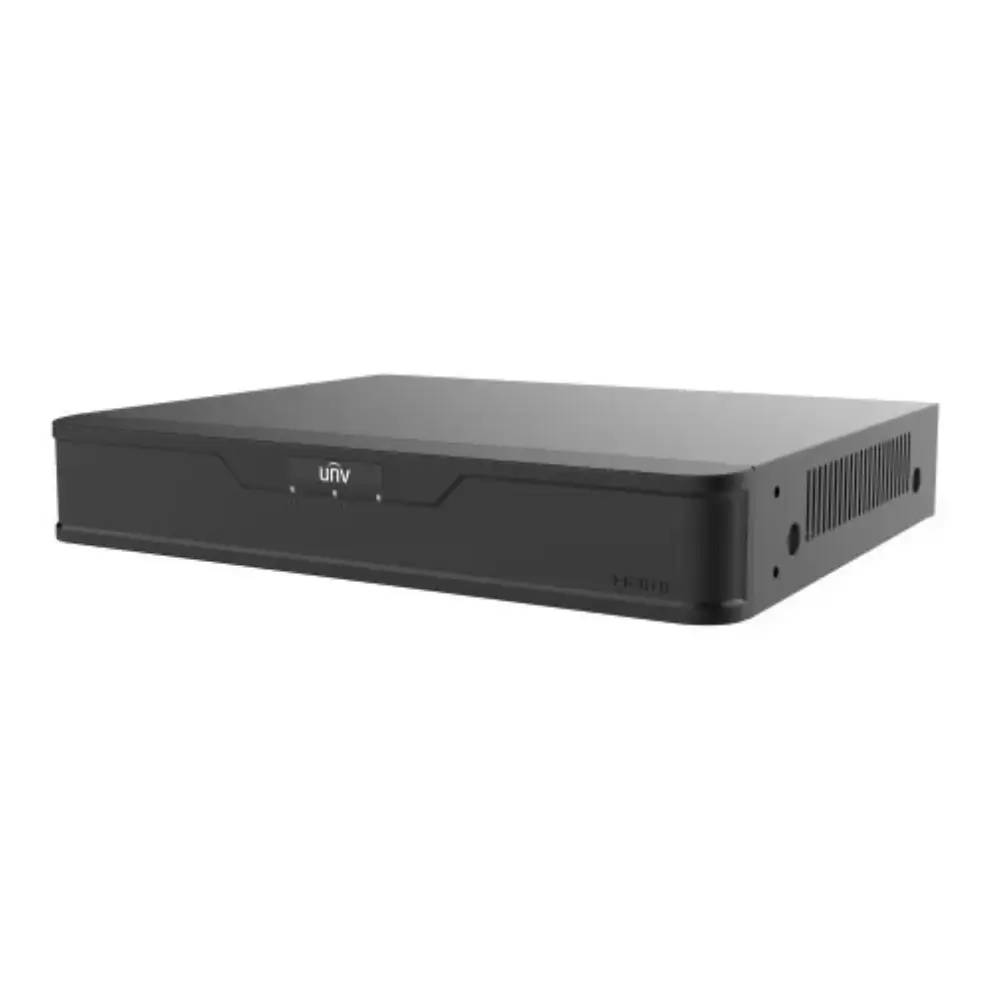

Uniview XVR301-04G3 4 Channel DVR with H.265 Support

The Uniview XVR301-04G3 4 Channel DVR records up to four analog cameras and adds two IP cameras, so one recorder can cover a shop, office or home. H.265 compression keeps footage clear while using less storage space.

It accepts AHD, TVI, CVI and CVBS cameras, so you can keep your existing coaxial cabling and upgrade the recorder only. That makes it a practical choice if you are searching for a reliable Uniview DVR in Bangladesh.

The recorder is compact and 1U sized. It has HDMI and VGA outputs, a SATA slot for one hard drive, and remote viewing over the network.

Key Features

• H.265/H.264 video formats: H.265 compresses video efficiently, so you can store more recordings on the same hard disk.

• Adaptive access for TVI, AHD, CVI, CVBS and IP cameras: The recorder detects the camera type automatically, so you can mix old and new cameras and avoid replacing equipment.

• 4 BNC analog inputs plus 2 IP channels: You can connect up to 6 cameras in total, which gives room to grow beyond a basic 4-camera setup.

• Audio over coaxial cable (TVI cameras only): Audio travels on the same cable as the video, so you don’t need to run a separate audio wire for supported TVI cameras.

• Dual-light control for UNV analog cameras under TVI: You can manage the dual-light function of compatible Uniview cameras from the recorder, which makes night-time setups easier.

• Simultaneous HDMI and VGA output up to 1920 × 1080: You can connect two monitors at once, for example one at the counter and one in the back office.

• Long transmission distance over coaxial cable: Cameras can be placed farther from the recorder, which suits larger premises.

• ONVIF and RTSP support: Mainstream third-party IP cameras can be added, so you are not limited to one camera brand.

• Ultra Motion Detection (UMD): The recorder analyses motion on 4 channels and helps flag relevant activity, so you spend less time searching through footage.

• Up to 16 TB on one SATA HDD: A single large drive stores many days of footage without extra hardware.

Why Choose Uniview XVR301-04G3 4 Channel DVR

This recorder suits people who want a dependable system without a complicated installation. Because it accepts four analog input types and IP cameras, it works with most CCTV setups. If you are upgrading an older system, you can often reuse your cameras and cables.

Buyers looking for a Uniview DVR also get several practical benefits:

• H.265 recording saves hard disk space.

• Two-way audio over RCA lets you listen and talk where the hardware supports it.

• Remote access is available over the network, with up to 128 remote users.

• Alarm alerts cover IP conflict, network disconnection, disk errors, full or low disk space, and illegal access.

• The recorder runs on DC 12V/2A and uses 8W or less without a hard disk, so it is cheap to run around the clock.

• It carries CE, FCC, UL, RoHS and WEEE certifications.

Best Use Cases

• Small shops and retail counters

• Home security

• Offices and clinics

• Warehouses and small factories

• Upgrading an older analog CCTV system

Technical Specifications
