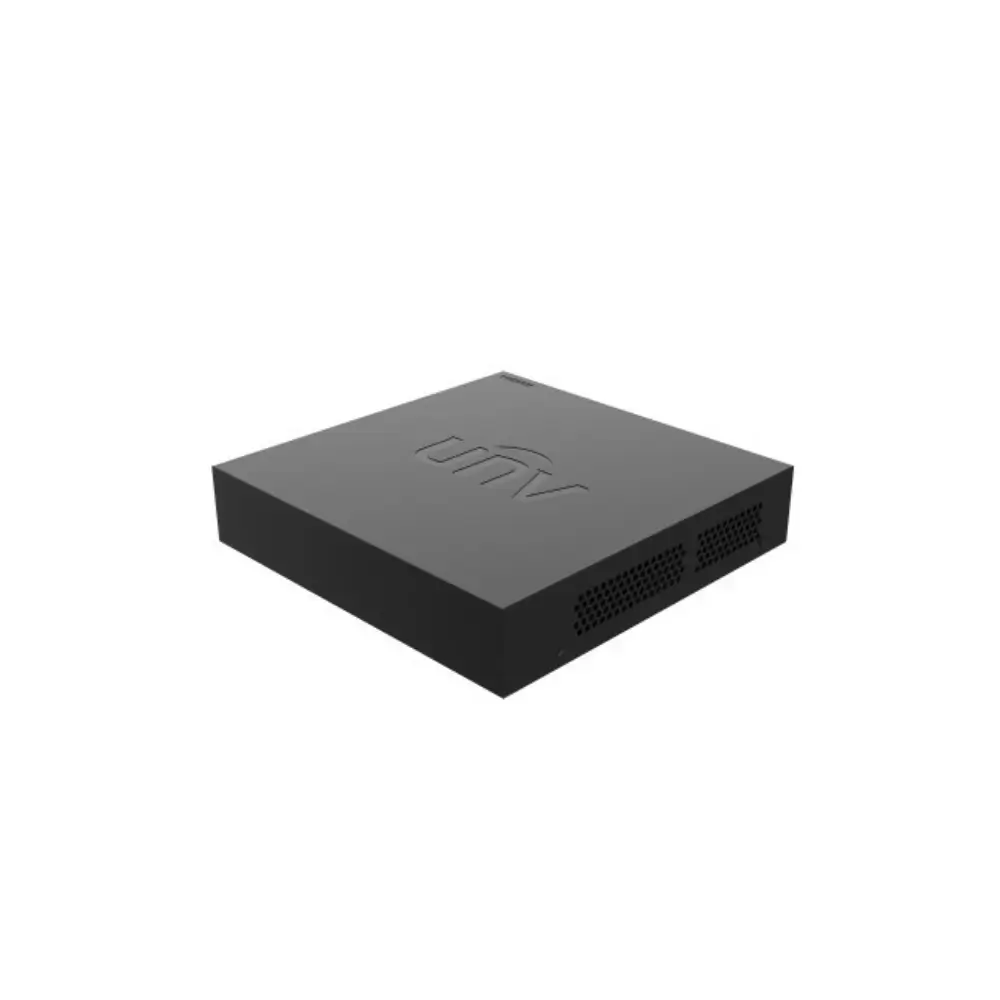

Uniview XVR301-04F 4 Channel XVR with 6TB HDD Support

The Uniview XVR301-04F 4 Channel XVR gives small shops, offices, and homes a dependable way to record and review CCTV footage. It records up to four analog cameras at 1080P Lite and stores the video on one internal SATA hard drive of up to 6TB. That gives you plenty of recording history without a complicated setup.

If you are comparing a Uniview XVR for a compact security system, this model is built for that job. It connects to a monitor through HDMI or VGA, so you can watch live video and play back recordings on most displays.

It is a good fit for retail counters, small offices, workshops, and residential buildings. Its compact body, low power draw, and USB backup make it easy to install and manage day to day.

Key Features

• 4-channel analog recording: Records up to 4 analog cameras at 1080P Lite@25fps (or 720P@30fps). This covers entrances, counters, and corridors in a small property.

• 1080P Lite main stream with D1 sub stream: The main stream keeps recordings clear, and the lighter sub stream keeps live viewing smooth. You get usable footage without heavy bandwidth demands.

• Flexible IP camera input: Accepts IP camera input of up to 6MP per channel, so you can add a higher-resolution camera where more detail matters.

• HDMI and VGA output: Connects to modern HDMI monitors and older VGA screens, so you do not need to replace your existing display.

• 1 SATA slot, up to 6TB: Supports a hard drive of up to 6TB, which stores more days of footage before older recordings are overwritten.

• RJ45 network port and 2x USB 2.0: The network port allows remote and network access, and the USB ports let you connect a mouse or a flash drive for backup.

• Outgoing bandwidth of 48Mbps: Provides enough network throughput for remote viewing and streaming.

• Low power use (10W or less without HDD): Runs on a DC12V/2A supply and uses little electricity, which is useful for systems that stay on around the clock.

• Compact and lightweight body: Measures 190mm x 202mm x 42mm and weighs 0.6kg or less, so it fits on a shelf or inside a small rack.

Why Choose the Uniview XVR301-04F 4 Channel XVR

The Uniview XVR301-04F 4 Channel XVR suits buyers who want straightforward, reliable recording at a sensible size. You get four recording channels, large storage support, and both HDMI and VGA output in one compact unit.

• Simple to set up: The 4-channel layout is easy to plan for a small property.

• Room for future growth: Support for a drive of up to 6TB means you can start with a smaller HDD and upgrade later.

• Easy playback and backup: USB backup lets you save important clips quickly.

• Efficient everyday operation: Low power consumption keeps running costs down.

• Backed by a known brand: Uniview is a well-known name in surveillance, and this unit includes a 1-year manufacturing warranty.

If you want a Uniview XVR for a small shop or home, this model covers the essentials without unnecessary extras.

Best Use Cases

• Small retail shops and showrooms

• Home security systems

• Small offices and clinics

• Workshops, warehouses, and storage rooms

• Entry gate and corridor monitoring

Technical Specifications
