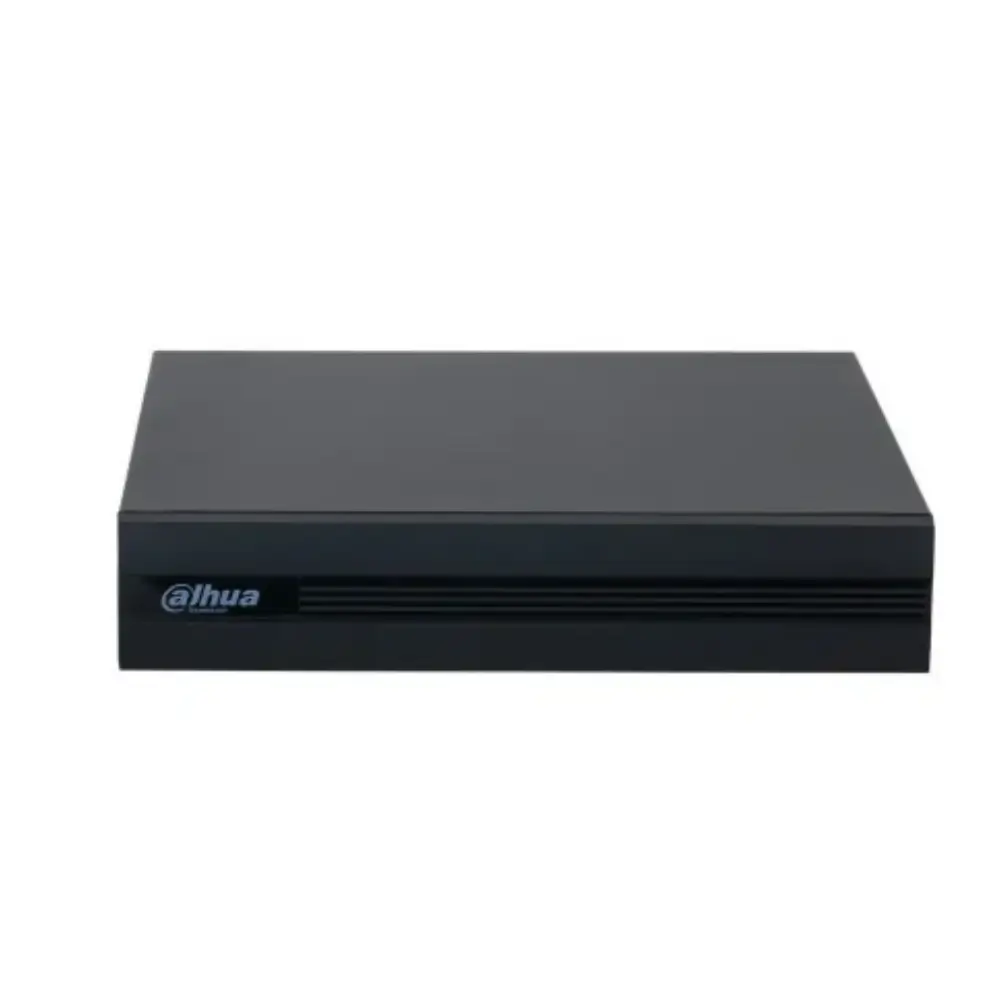

Dahua XVR1B08H-I 8 channel penta-brid DVR front view

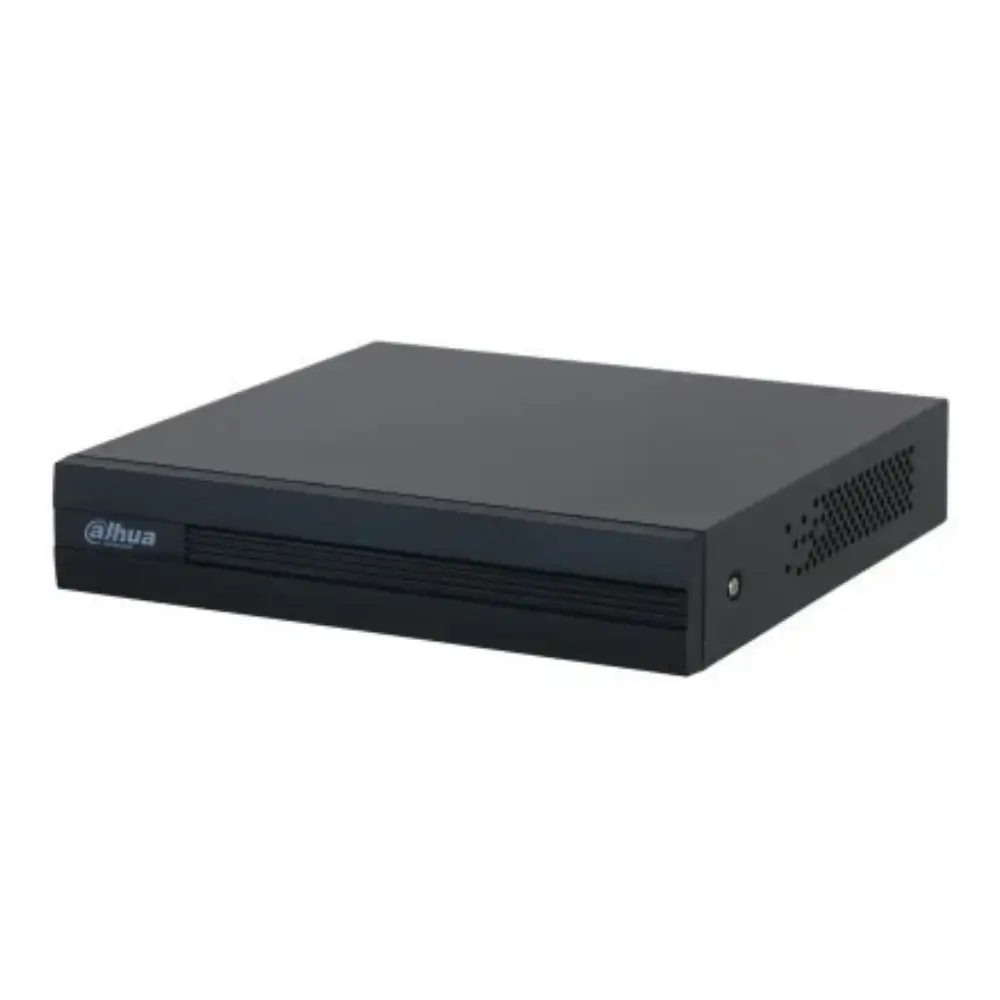

Dahua XVR1B08H-I DVR supporting H.265+ compression and 5M-N recording
Dahua

Dahua XVR1B08H-I 8 Channel DVR with H.265+ Compression

BDT 6,800

1 Year Warranty

Quantity

1
SKU: DAHUA-XVR1B08HI

The Dahua XVR1B08H-I 8 channel DVR lets you record and monitor up to eight cameras on one compact recorder. It accepts HDCVI, AHD, TVI, CVBS and IP cameras, so you can upgrade an existing CCTV setup without replacing every camera.

H.265+/H.265 compression keeps video quality high while using less hard drive space. This makes the Dahua DVR a practical choice for shops, offices, homes and small businesses that need reliable round-the-clock recording.

You can also watch live video and play back footage from an iPhone, iPad or Android phone, so you can check on your property from anywhere.

Key Features

  • H.265+/H.265 dual-stream compression: Reduces file size, so your hard drive holds more recording days.

  • Full-channel AI-Coding support: Helps manage bandwidth and storage efficiently across all channels.

  • Penta-brid input (HDCVI/AHD/TVI/CVBS/IP): Works with different camera types, so you can mix old and new cameras.

  • Up to 12 IP camera inputs: Gives you room to expand beyond 8 analog channels.

  • Recording up to 5M-N resolution: Delivers sharper footage for identifying details.

  • Motion detection, video loss and tampering alarms: Alerts you to events and triggers recording, email, snapshot or buzzer.

  • HDMI and VGA output: Connects to most modern monitors and TVs.

  • Mobile viewing and P2P support: Lets you monitor remotely from iPhone, iPad and Android.

  • 1 SATA port, up to 6TB: Provides ample storage for long recording history.

  • Low power use (under 10W): Keeps running costs low for 24/7 operation.

Why Choose This Dahua XVR1B08H-I 8 Channel DVR

This Dahua DVR suits anyone who wants dependable surveillance from a well-known brand. The penta-brid inputs mean you can keep your current cameras and still move to a modern recorder.

Efficient H.265+ compression and a 6TB storage limit mean fewer storage worries. Smart recording modes (scheduled, motion-triggered or alarm-based) save space and make important events easy to find. Playback search is accurate to the second.

It also supports ONVIF 16.12, many third-party IP cameras and up to 128 user accesses. That flexibility makes the recorder a solid long-term investment for a home or business CCTV system in Bangladesh.

Best Use Cases

  • Home security

  • Shops and retail outlets

  • Offices

  • Small warehouses and factories

Technical Specifications

Specification

Details

Model

XVR1B08H-I

Type

8 Channel Penta-brid DVR

Operating System

Embedded Linux

Video Inputs

HDCVI / AHD / TVI / CVBS / IP

IP Camera Input

8+2 channels, each up to 12MP (max 12 IP channels)

Two-Way Talk

Reuse audio in/out, RCA

Video Output

1 HDMI, 1 VGA

Display Resolution

1920×1080, 1280×1024, 1280×720

Compression

H.265+ / H.265 / H.264+ / H.264

Recording Resolution

5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF

Record Rate

Main stream: 1st channel 5M-N (1~10fps); sub stream: CIF/QCIF (1~15fps)

Bit Rate

32Kbps ~ 6144Kbps per channel

Record Modes

Manual, Schedule, Motion Detection, Alarm, Stop

Video Detection

Motion Detection (396 zones), Video Loss, Tampering, Diagnosis

Playback

Sync playback 1/4 channel; search by time/date, alarm, MD and exact search

Backup

USB device / Network

Network Port

1 RJ-45 (100M)

Network Protocols

HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P

Maximum Users

128

Mobile Support

iPhone, iPad, Android

Interoperability

ONVIF 16.12, CGI Conformant

Storage

1 SATA port, up to 6TB

USB

2 × USB 2.0

Power Supply

DC12V/1.5A

Power Consumption

<10W

Operating Conditions

-10°C ~ +45°C, 10~90% RH

Storage Conditions

-20°C ~ +70°C, 0~90% RH

Dimensions

197mm × 192mm × 41mm

Net Weight

0.54kg

Compatibility

  • Camera types: HDCVI, AHD, TVI, CVBS and IP cameras

  • Third-party IP cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and more

  • Mobile devices: iPhone, iPad, Android

  • Standards: ONVIF 16.12

Package Includes

Not provided. Please send the box contents, or I’ll leave this section out.

Frequently asked questions

What types of cameras does the Dahua XVR1B08H-I support?

It supports HDCVI, AHD, TVI, CVBS and IP camera inputs, so it works with most existing CCTV cameras.

How many cameras can this 8 channel DVR connect?

It supports 8 analog channels and can take up to 12 IP camera channels in total.

What is the maximum recording resolution?

It records up to 5M-N, with 4M-N, 1080P, 720P and other options also available

How much storage does this Dahua DVR support?

It has one SATA port and supports a hard drive of up to 6TB.
