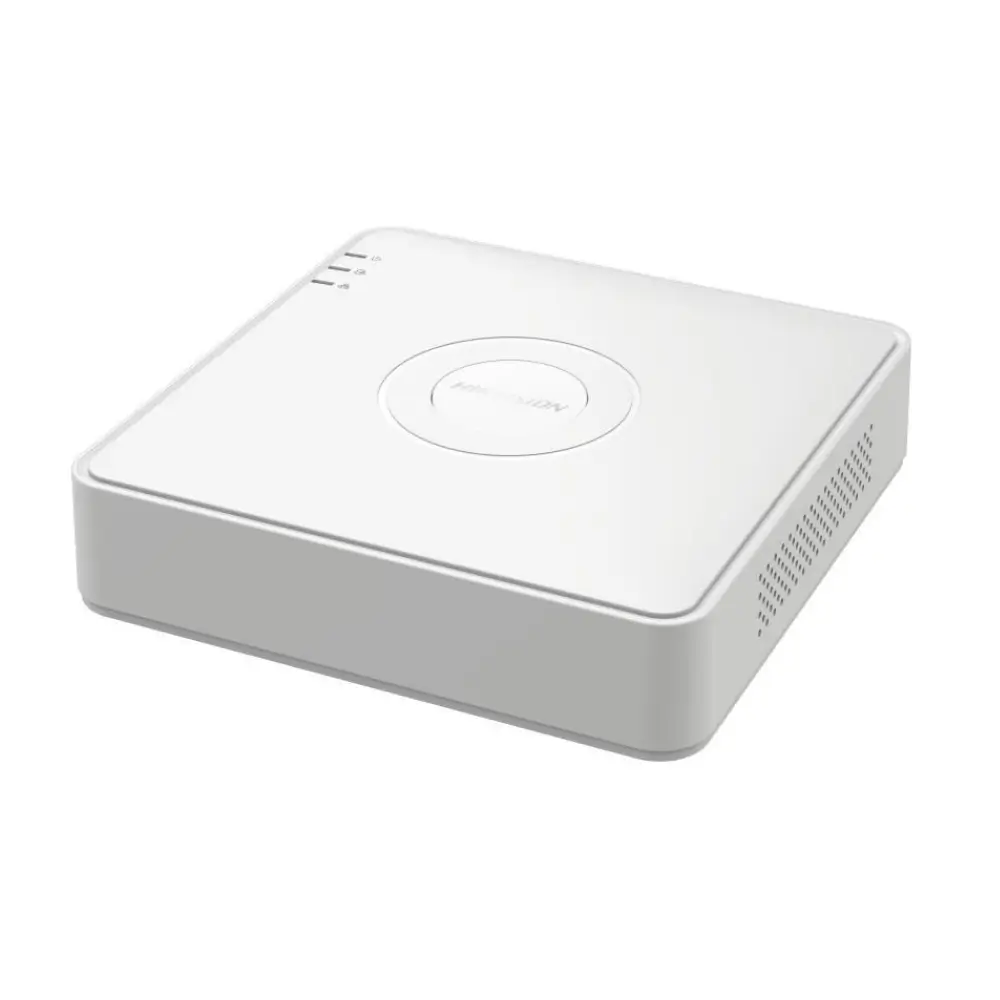

Hikvision 8 channel DVR supporting H.265 Pro+ video compression

Hikvision DS-7108HGHI-M1/T 8 Channel H.265 Pro+ DVR

By HikvisionIn stock

৳4,350

1

Good to know

Specifications

ModelDS-7108HGHI-M1/T
Video CompressionH.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
Analog InputHDTVI, AHD, HDCVI (1080p25/30, 720p25/30), CVBS
IP Camera Input2-ch (up to 10-ch)
Encoding CapabilityUp to 1080p Lite @ 25 fps
HDMI Output1-ch, 1920 × 1080 / 1280 × 1024 / 1280 × 720 @ 60 Hz
VGA Output1-ch, 1920 × 1080 / 1280 × 1024 / 1280 × 720 @ 60 Hz
Record Rate (Main Stream)1080p Lite / 720p Lite / WD1 / 4CIF / VGA / CIF @ 15 fps
Sub-Stream4CIF @ 15 fps; CIF/QVGA @ 25 fps (P) / 30 fps (N)
Bit Rate32 Kbps to 4 Mbps
Audio CompressionG.711u, 64 Kbps
Synchronous Playback8-ch
Alarm InputN/A
Network Interface1 × RJ45 10/100 Mbps
Network FunctionsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP, HTTPS
Internal HDD1 SATA, up to 4 TB
USB2 × USB 2.0
Power Supply12 VDC, 1.5 A
Power Consumption≤ 10 W (without HDD)
Operating Temperature-10 °C to 55 °C
Dimensions200 × 200 × 48 mm
Net Weight≤ 1 kg (without HDD)
Warranty1 Year Manufacturing Warranty

Description

The Hikvision DS-7108HGHI-M1/T is a compact 8 channel DVR for people who want dependable CCTV recording without a bulky recorder. Its H.265 Pro+ compression stores more footage on the same hard drive, so you spend less on storage.

It accepts HDTVI, AHD, HDCVI and CVBS analog cameras, so you can often keep your existing cameras when upgrading. This Hikvision DVR suits homes, shops, offices and small businesses, and you can view your cameras remotely through Hik-Connect.

Key Features

  • H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 compression: Efficient encoding reduces file size, so the drive holds more days of recordings.

  • 8 channel analog input with support for up to 10 IP camera channels: You can cover more areas, and IP cameras can be added where needed.

  • Up to 1080p Lite encoding at 25 fps: You get clear, usable footage at a manageable bitrate.

  • Multi-format analog input (HDTVI, AHD, HDCVI, CVBS): One recorder works with several camera types, which makes upgrades simpler.

  • HDMI and VGA output (up to 1920 × 1080 at 60 Hz): It connects to modern monitors and older displays alike.

  • 8-channel synchronous playback: You can review footage from all cameras at the same time.

  • Quick search by object or event type: You find the moment you need faster than by scrubbing the whole timeline.

  • Hik-Connect, DDNS and UPnP support: Remote viewing from your phone is easy to set up.

  • 1 SATA interface, up to 4 TB: You get plenty of storage for continuous recording.

  • Mini 1U body (200 × 200 × 48 mm): It fits on a shelf or in a small rack.

Why Choose the Hikvision DS-7108HGHI-M1/T 8 Channel DVR

This 8 channel DVR is a practical choice if you want a trusted brand, flexible camera support and efficient storage in a small unit. Because it works with common analog formats, you can upgrade a CCTV system without replacing every camera.

H.265 Pro+ compression helps you keep longer recording history on one drive. Power draw is 10 W or less without an HDD, which keeps running costs low for a recorder that runs around the clock. Hikvision is a well-known name in surveillance, and a 1-year manufacturing warranty comes with the unit.

Best Use Cases

  • Home security

  • Shops and retail stores

  • Small offices

  • Warehouses and workshops

  • CCTV upgrades with existing HDTVI, AHD or HDCVI cameras

Compatibility

  • Analog cameras: HDTVI, AHD, HDCVI and CVBS (1080p and 720p)

  • IP cameras: H.265+ / H.265 / H.264+ / H.264

  • Displays: any monitor or TV with HDMI or VGA input

  • Storage: one SATA hard drive up to 4 TB

Warranty

1 Year Warranty

Read the warranty policy

Reviews

Frequently asked questions

What is the Hikvision DS-7108HGHI-M1/T?

It is a Hikvision 8 channel mini 1U DVR with H.265 Pro+ compression and up to 1080p Lite recording.

Which cameras work with this DVR?

It supports HDTVI, AHD, HDCVI and CVBS analog cameras. IP cameras using H.265+, H.265, H.264+ or H.264 are also supported.

How much storage does it support?

It has one SATA interface and supports a hard drive up to 4 TB

Does this Hikvision DVR support audio?

Yes. Stream types include Video and Video & Audio, with G.711u audio compression.
