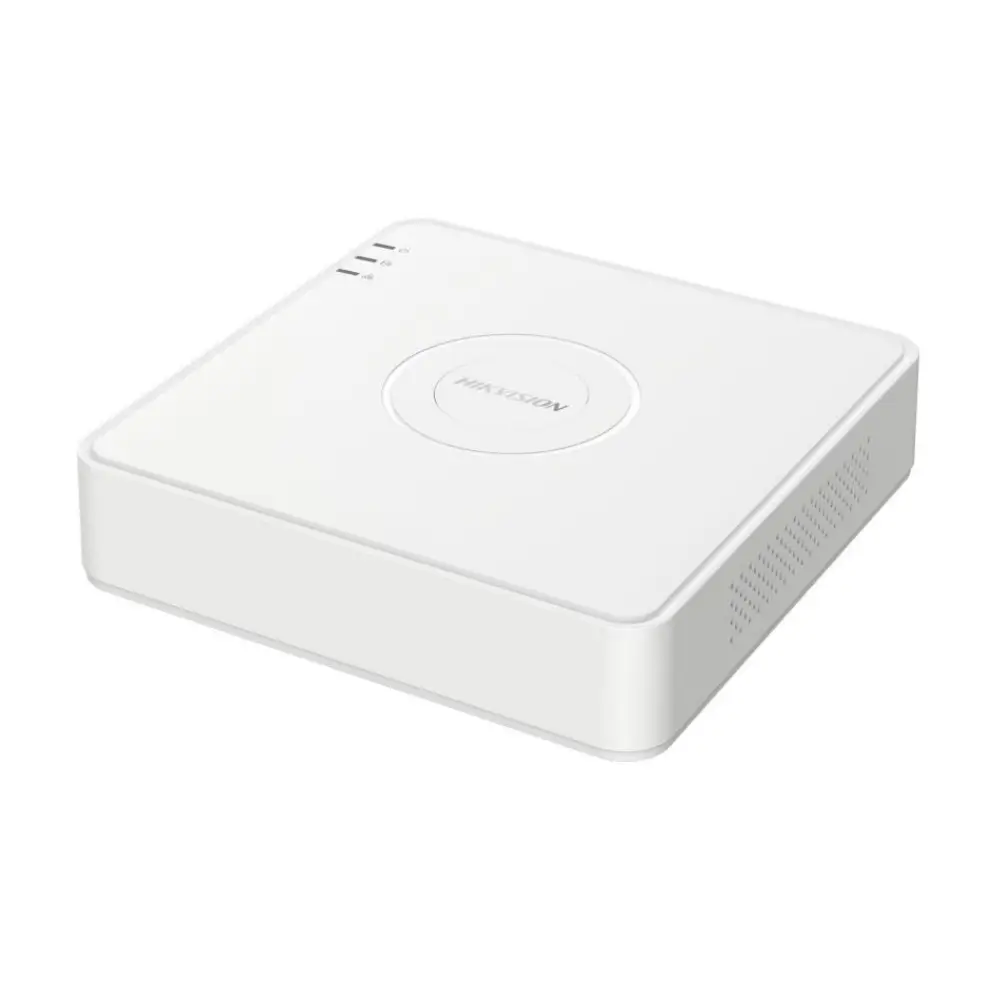

Hikvision 4 channel 1080p AcuSense DVR front view

Hikvision iDS-7104HQHI-M1/S 4 Channel AcuSense DVR with H.265

By HikvisionIn stock

৳4,870

1

Good to know

Specifications

Recorder type4-channel 1080p Mini 1U DVR with AcuSense
Video inputsHDTVI, AHD, CVI, CVBS and IP
IP camera supportUp to 6 channels, up to 6 MP
Maximum encodingUp to 3K Lite / 5 MP Lite at 12 fps
CompressionH.265 Pro+, H.265 Pro, H.265, H.264+, H.264
Video bitrate32 Kbps to 6 Mbps
StreamingDual-stream; video or video and audio
AudioG.711u at 64 Kbps, delivered over coaxial cable
Network bandwidth72 Mbps total
Remote connectionsUp to 32
Network port1 × RJ45, 10/100 Mbps self-adaptive Ethernet
ProtocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
Wi-FiSupported through a USB Wi-Fi dongle
Storage1 SATA port, up to 10 TB per disk
USB ports2 × USB 2.0 on the rear panel
Alarm input/outputNot available
Power12 VDC, 1.5 A (8 W or less without HDD)
Operating conditions-10 °C to +55 °C; 10% to 90% humidity
Dimensions (W × D × H)200 × 200 × 48 mm
Weight1 kg or less (without HDD)

Description

The Hikvision iDS-7104HQHI-M1/S is a 4 channel AcuSense DVR built to cut false alarms. Its deep learning engine tells people and vehicles apart from swaying trees, shadows and passing animals, so you get alerts that matter.

This Hikvision DVR records 1080p footage with H.265 Pro+ compression. That means sharper video while using far less hard disk space. It suits homes, shops, offices and small business premises.

The compact Mini 1U body fits on a shelf or in a small rack. It works with HDTVI, AHD, CVI and CVBS analog cameras as well as IP cameras. You can upgrade an existing CCTV setup without replacing every camera.

Key Features

  • Human and vehicle classification (Motion Detection 2.0): Deep learning separates real targets from irrelevant movement, so you spend less time checking false alerts.

  • Deep learning perimeter protection: Line crossing and intrusion alerts are targeted at people and vehicles, which makes boundary monitoring more dependable.

  • H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 compression: Smaller video files let you store longer recordings on the same hard disk.

  • Multi-format video input (HDTVI/AHD/CVI/CVBS/IP): You can mix camera types, which protects your existing investment.

  • Audio over coaxial cable: Sound travels through the same cable as the video, so you don’t need extra audio wiring.

  • Up to 6 IP camera channels (up to 6 MP): Higher-resolution IP cameras can be added as your coverage grows.

  • Encoding up to 3K Lite / 5 MP Lite at 12 fps: Higher-resolution streams give you more detail where it counts.

  • Dual-stream support: A lighter sub-stream keeps live viewing on mobile smooth, while the main stream records full quality.

  • Hik-Connect, ONVIF and DDNS support: Remote viewing from your phone, plus compatibility with third-party ONVIF devices.

  • 1 SATA interface (up to 10 TB per disk): Plenty of room for long recording history from a single disk.

Why Choose the Hikvision iDS-7104HQHI-M1/S 4 Channel AcuSense DVR

Many basic recorders flood you with alerts from every moving leaf. This 4 channel AcuSense DVR filters motion by target type, so notifications mean a person or vehicle was detected. That saves time and makes your CCTV easier to trust day to day.

It also adapts to what you already own. Analog cameras in HDTVI, AHD, CVI or CVBS formats connect directly, and IP cameras can be added too. You get a smart upgrade path without a complete rewiring job.

For everyday practicality, there are three points. H.265 compression stretches your storage, the compact 200 × 200 × 48 mm body saves space, and low power use (8 W or less without a hard disk) keeps running costs small. If you are shopping for a reliable Hikvision DVR in Bangladesh, this model covers small-site security without unnecessary complexity.

Best Use Cases

  • Homes and apartments: Entrances, garages and compound boundaries.

  • Shops and showrooms: Counters, stockrooms and storefronts.

  • Offices and small businesses: Reception areas, corridors and parking.

  • Perimeter security: Fences and gates, where people and vehicle alerts matter most.

Compatibility

  • Analog cameras: HDTVI, AHD, CVI and CVBS.

  • IP cameras: Up to 6 channels at up to 6 MP, with ONVIF support for third-party cameras.

  • Storage: Standard SATA hard disk up to 10 TB.

  • Accessories: A USB Wi-Fi dongle can be used for wireless network connection.

Warranty

1 Year Warranty

Read the warranty policy

Reviews

Frequently asked questions

What is the Hikvision iDS-7104HQHI-M1/S?

It is a 4 channel, 1080p, H.265 AcuSense DVR in a compact Mini 1U body. It records analog and IP cameras and classifies people and vehicles to reduce false alarms.

What does AcuSense do on this DVR?

AcuSense uses deep learning to tell humans and vehicles apart from other movement. You get fewer false alerts, and finding relevant footage is faster.

Which camera types work with this DVR?

It accepts HDTVI, AHD, CVI, CVBS and IP cameras, so a mix of old and new cameras can run together.

How much storage can it hold?

It has one SATA port that supports a hard disk of up to 10 TB. H.265 compression helps you keep recordings for longer.
